GEARSHIFTING 9-3
GEARSHIFT LINKAGE

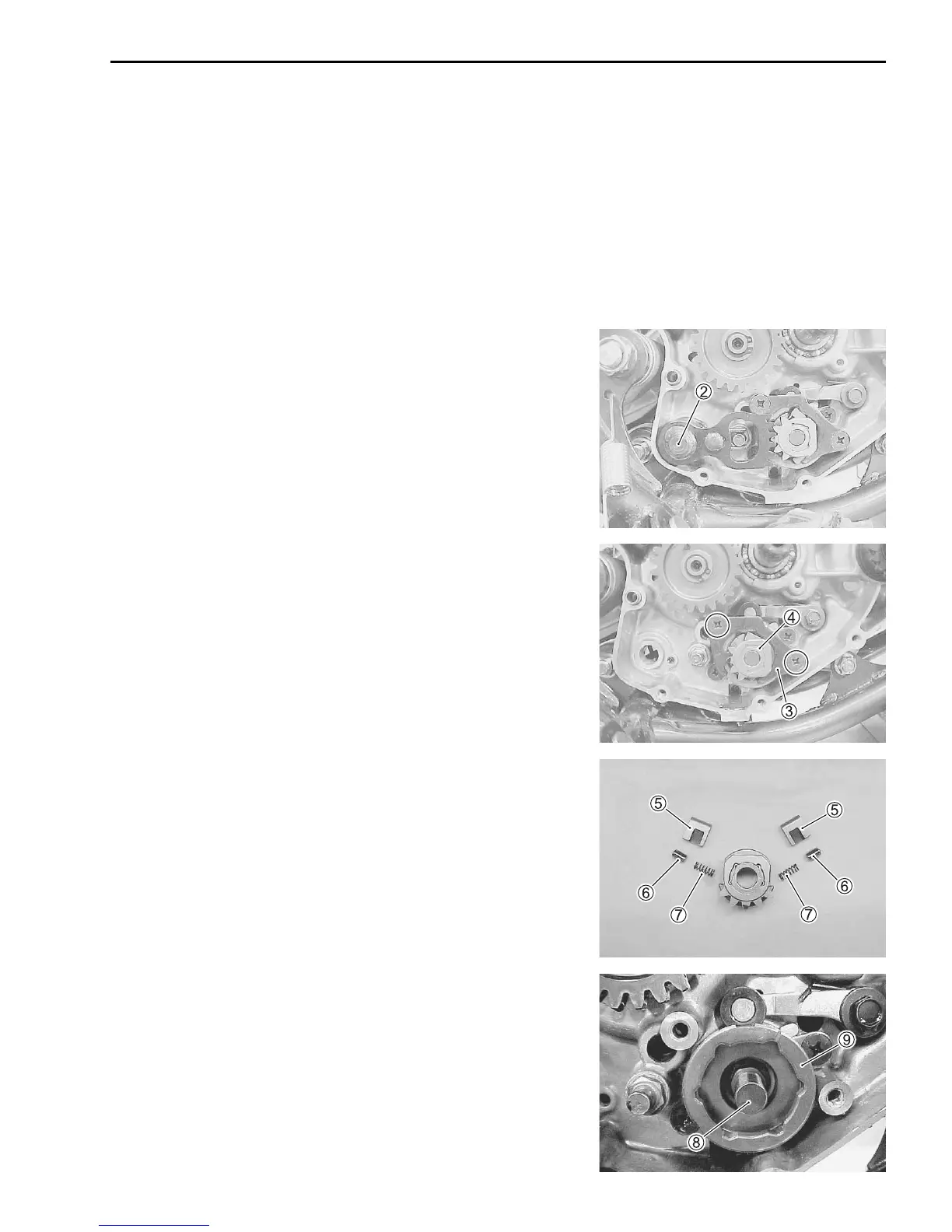

REMOVAL
• Drain transmission oil. (2-7)
• Drain engine coolant. (12-3)
• Remove the kick starter lever and clutch assembly. (7-5)
• Remove the gearshift lever.
• Remove the gearshift shaft 2.
• Remove the two screws. Remove the pawl lifter 3.
• Remove the gearshift cam shifter 4.
NOTE:
Be careful that the pins and springs do not fly off.
• Remove the gearshift pawls 5, pins 6 and springs 7.
• Loosen the gearshift cam bolt 8 and remove the stopper
plate 9.
