8-4 KICK STARTER
INSPECTION

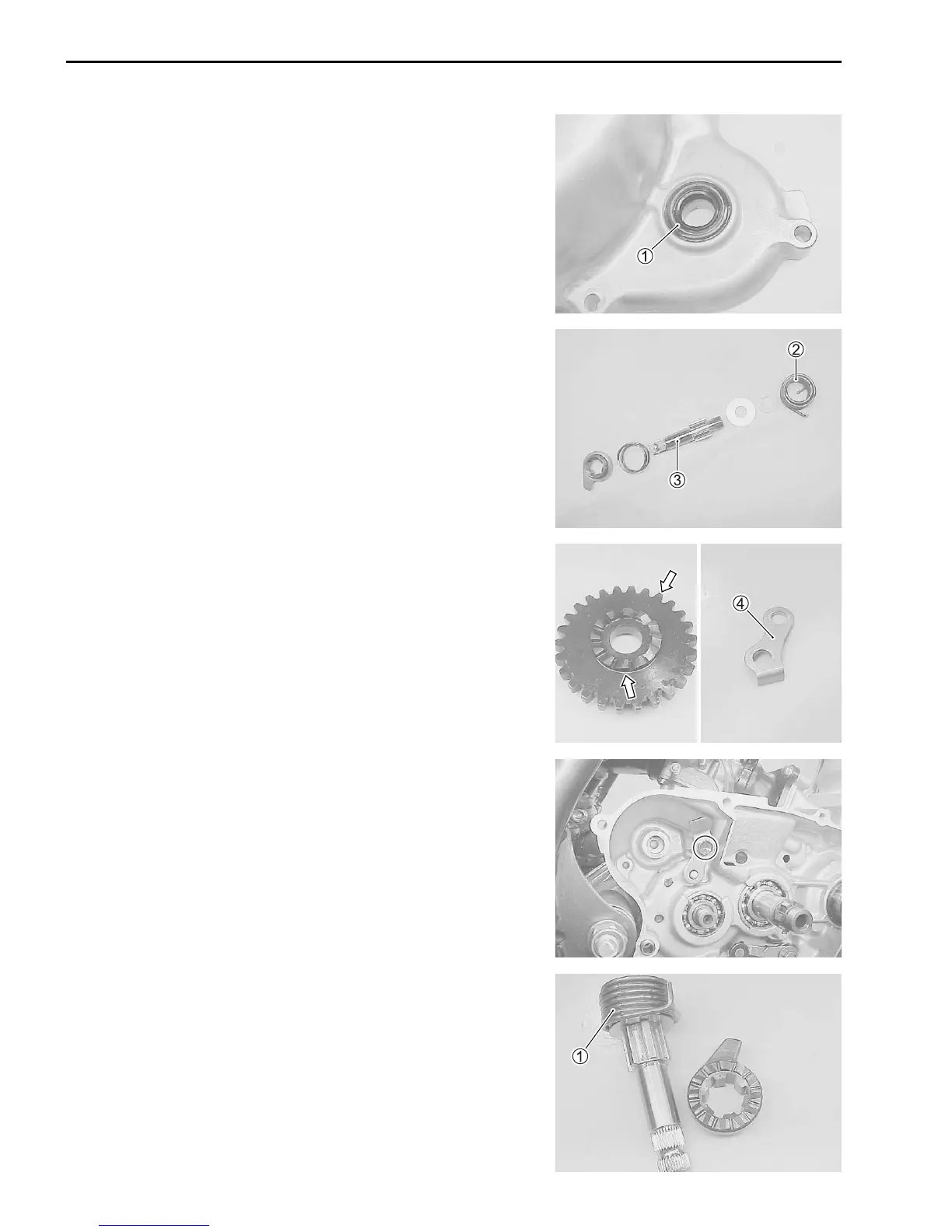

• Inspect the oil seal 1 for oil leakage and oil seal lip damage.
• Inspect the return spring 2 for damage.
• Inspect the kick shaft 3 and drive gear for contact surface
wear.
• Inspect the kick drive gear teeth for damage.
• Inspect the kick drive gear ratchet part for wear and damage.
• Inspect the kick starter stopper 4.
REASSEMBLY
• Install the kick starter stopper and kick starter guide.
• Apply THREAD LOCK SUPER “1322” to the bolt.
• Tighten the bolt.
99000-32110: THREAD LOCK SUPER “1322”
• Install the return spring 1 into the kick shaft’s hole.
• Install them to the crankcase.
