CLUTCH 7-3
CLUTCH

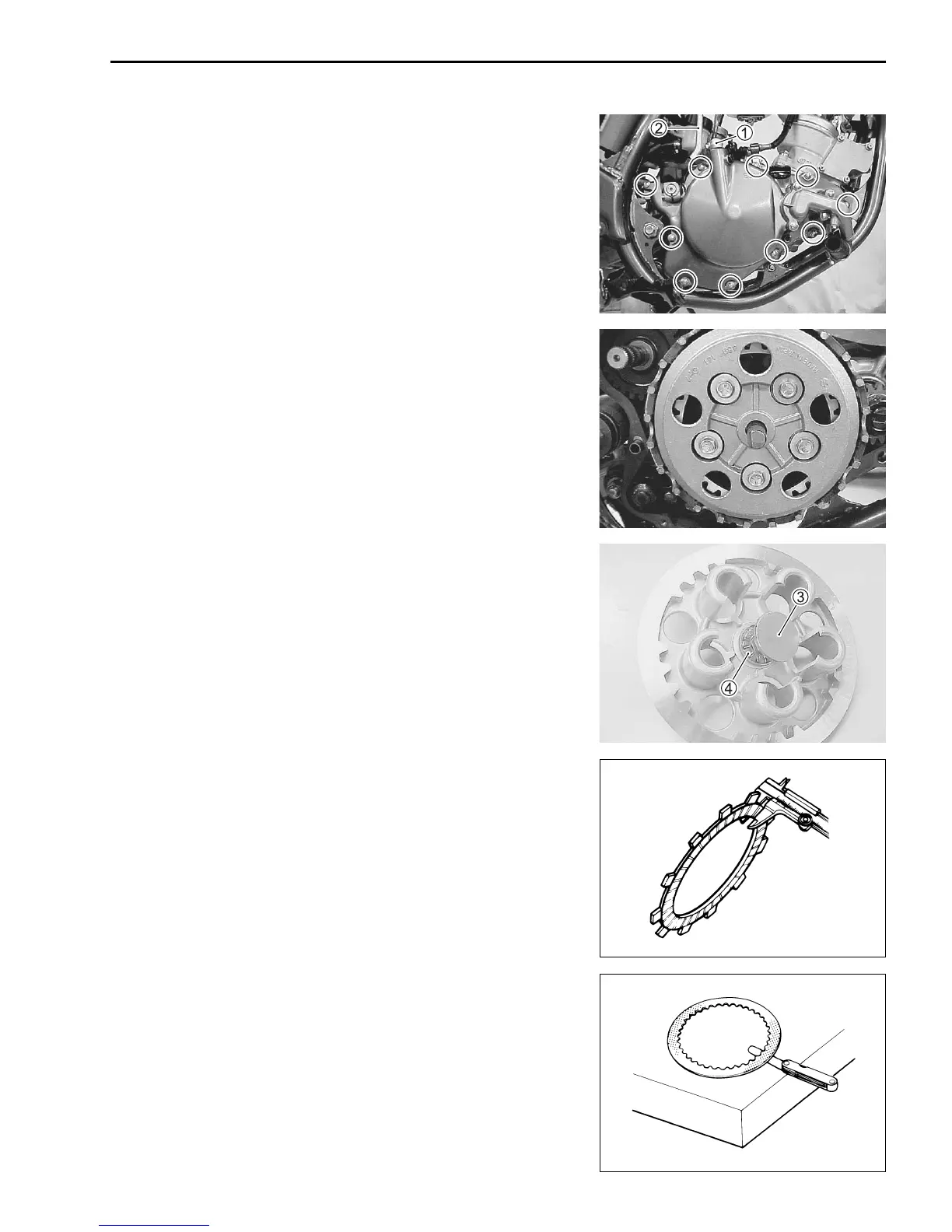

CLUTCH PLATE REMOVAL
• Drain transmission oil. (2-7)
• Drain the engine coolant. (12-3)
• Remove the rear brake pedal. (15-14)
• Remove the clutch release arm 1.
• Remove the kick starter lever 2.
• Remove the clutch cover.
• Loosen the bolts diagonally and remove them.
• Remove the clutch springs.
• Remove the pressure plate.
• Remove the rack 3 and bearing 4 from the pressure plate.
• Remove the drive plates and driven plates.
CLUTCH PLATE INSPECTION
• Measure the drive plate thickness.
Drive plate thickness
Service Limit: 2.4 mm (0.094 in)
• Inspect the drive plates for wear, distortion and discoloration.
• Measure the driven plate distortion.
Driven plate distortion
Service Limit: 0.10 mm (0.004 in)
• Inspect the driven plates for wear and discoloration.
