REAR SUSPENSION 17-11
SWINGARM

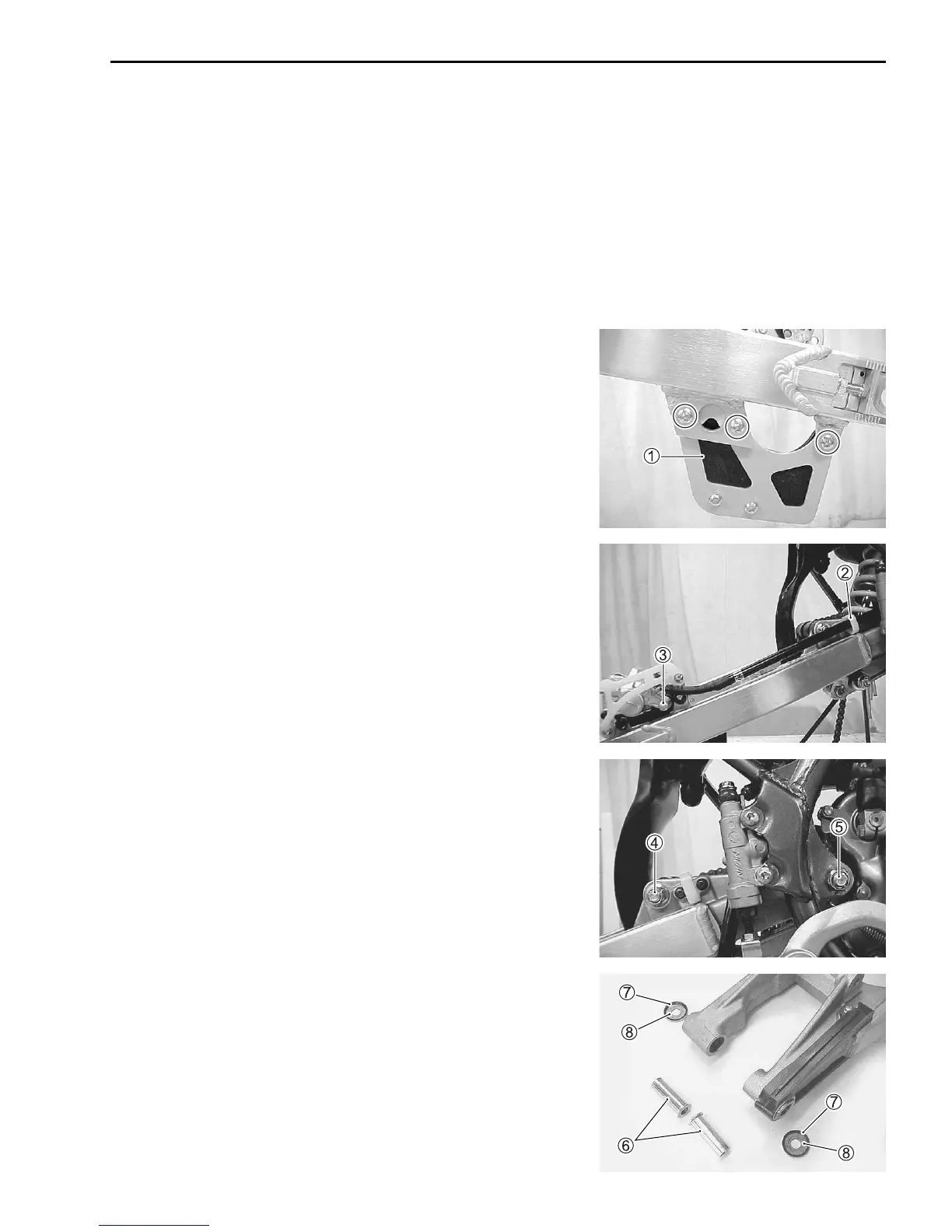

SWINGARM REMOVAL
• Remove the rear wheel. (14-5)
• Remove the chain guide 1.
• Remove the rear brake hose guide 2.
• Remove the rear brake caliper 3.
• Remove the drive chain.
• Remove the rear cushion rod bolt and nut 4.
• Remove the swingarm pivot nut 5.
• Remove the swingarm by removing the pivot shaft.
• Remove the following parts from the swingarm.
Spacer 6
Dust seal 7
Washer 8
To Next Page
