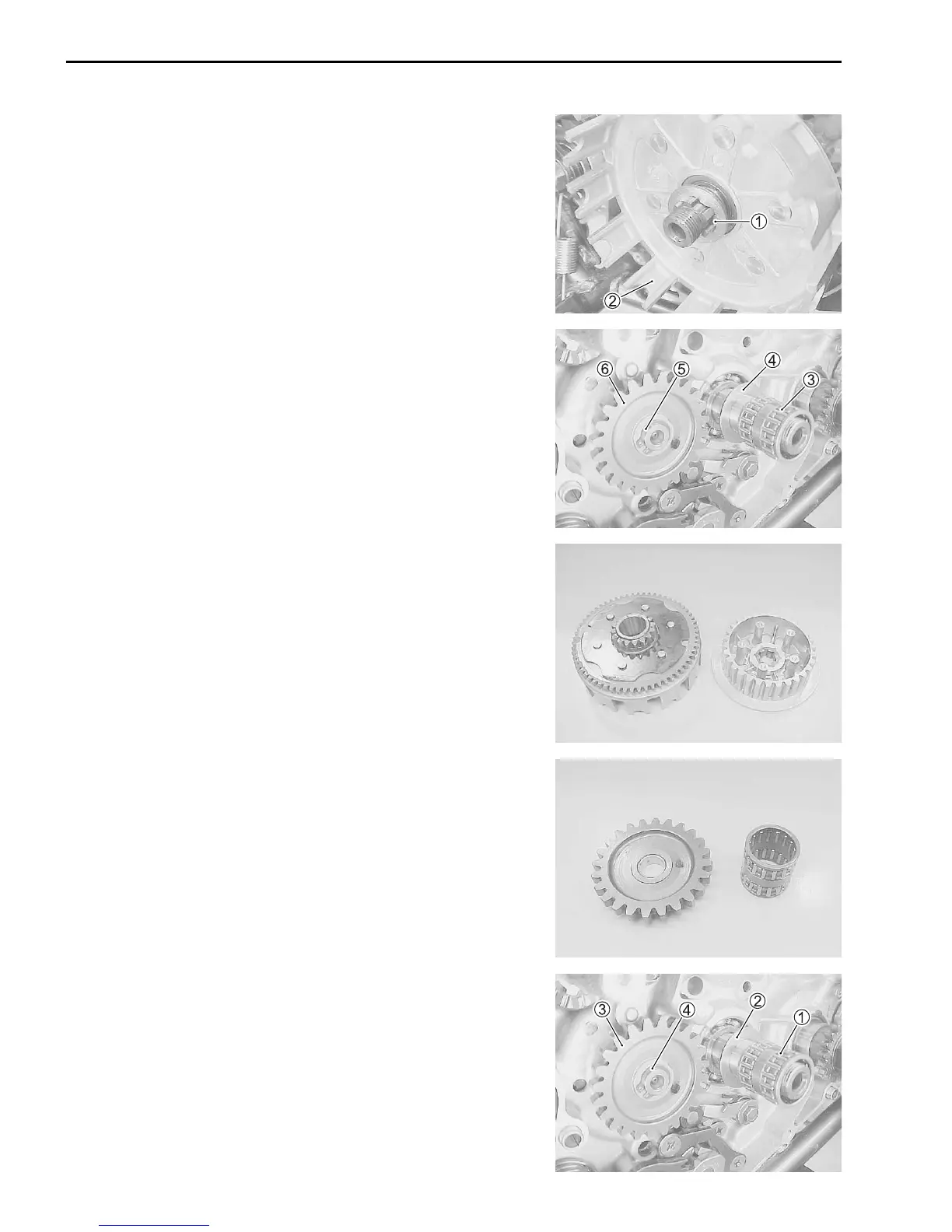

7-6 CLUTCH
• Remove the washer 1, primary driven gear ass’y 2.
• Remove the needle bearing 3 and washer 4.
• Remove the snap ring 5 and kick idle gear 6.
CLUTCH SLEEVE HUB INSPECTION
• Inspect the clutch sleeve hub and primary driven gear ass’y
for wear and cracks.
• Inspect the kick idle gear and needle bearing for damage and
wear.
CLUTCH SLEEVE HUB REASSEMBLY
• Install the washer 2 and needle bearing 1.
• Apply transmission oil to the needle bearing 1.
• Install the kick idle gear 3 and snap ring 4.
