FRONT AND REAR BRAKES 15-5

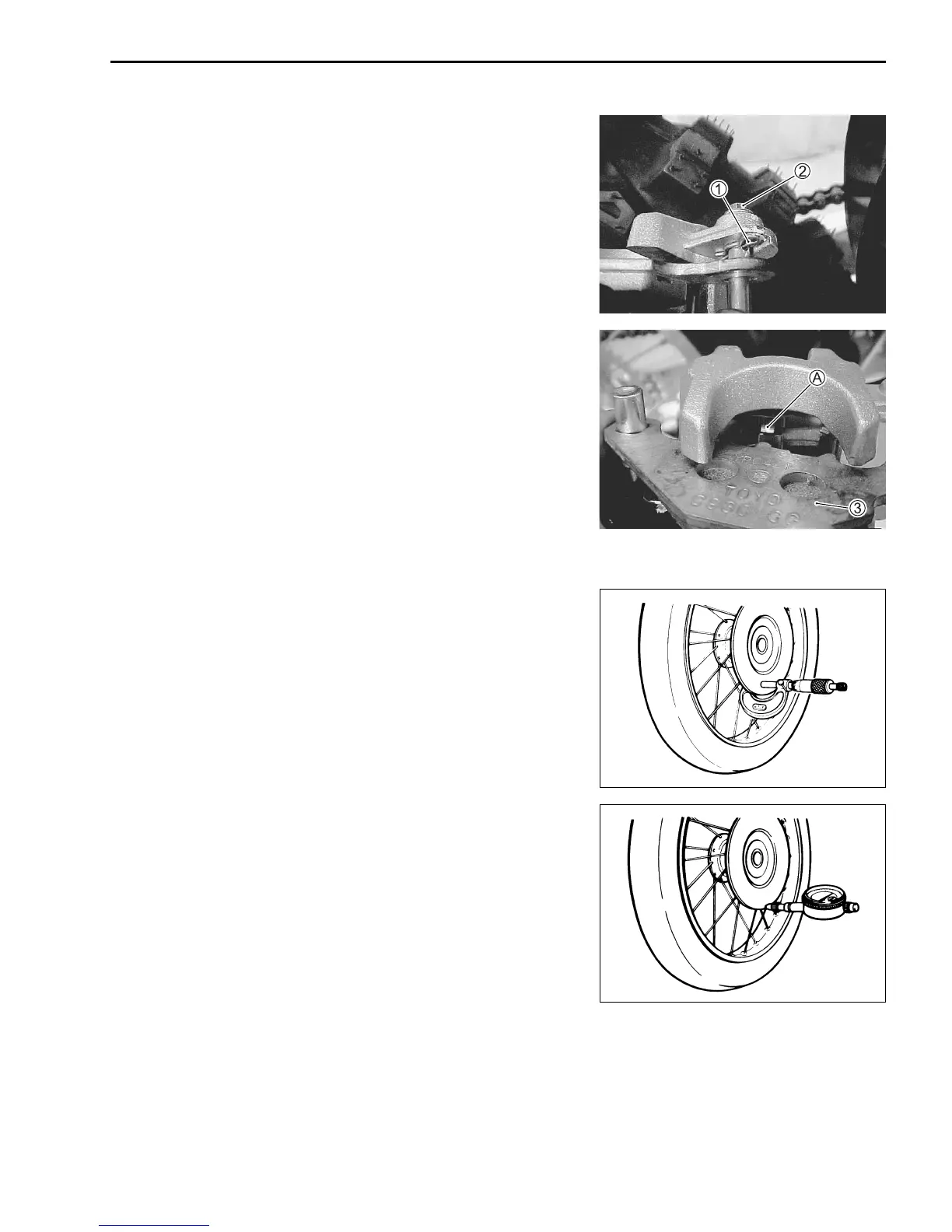

• Remove the clamp 1. Remove the pad mounting pin 2.
NOTE:
Replace the two pads as a set.
• Install the new brake pads to the caliper.
NOTE:
Make sure that the tip
A
of the spring is fitted to the inner pad
3
.
• Tighten the caliper mounting bolts.
Caliper mounting bolt: 23 N·m (2.3 kgf-m, 16.5 lb-ft)
NOTE:
Pump the brake pedal several times to seat the brake pads after
reassembling.
BRAKE DISC
BRAKE DISC INSPECTION
• Measure the front and rear brake disc thickness.
Service Limit: 2.5 mm (0.10 in)
• Measure the front and rear brake disc runout.
Service Limit: 0.30 mm (0.01 in)
BRAKE DISC REPLACEMENT
(14-7)
