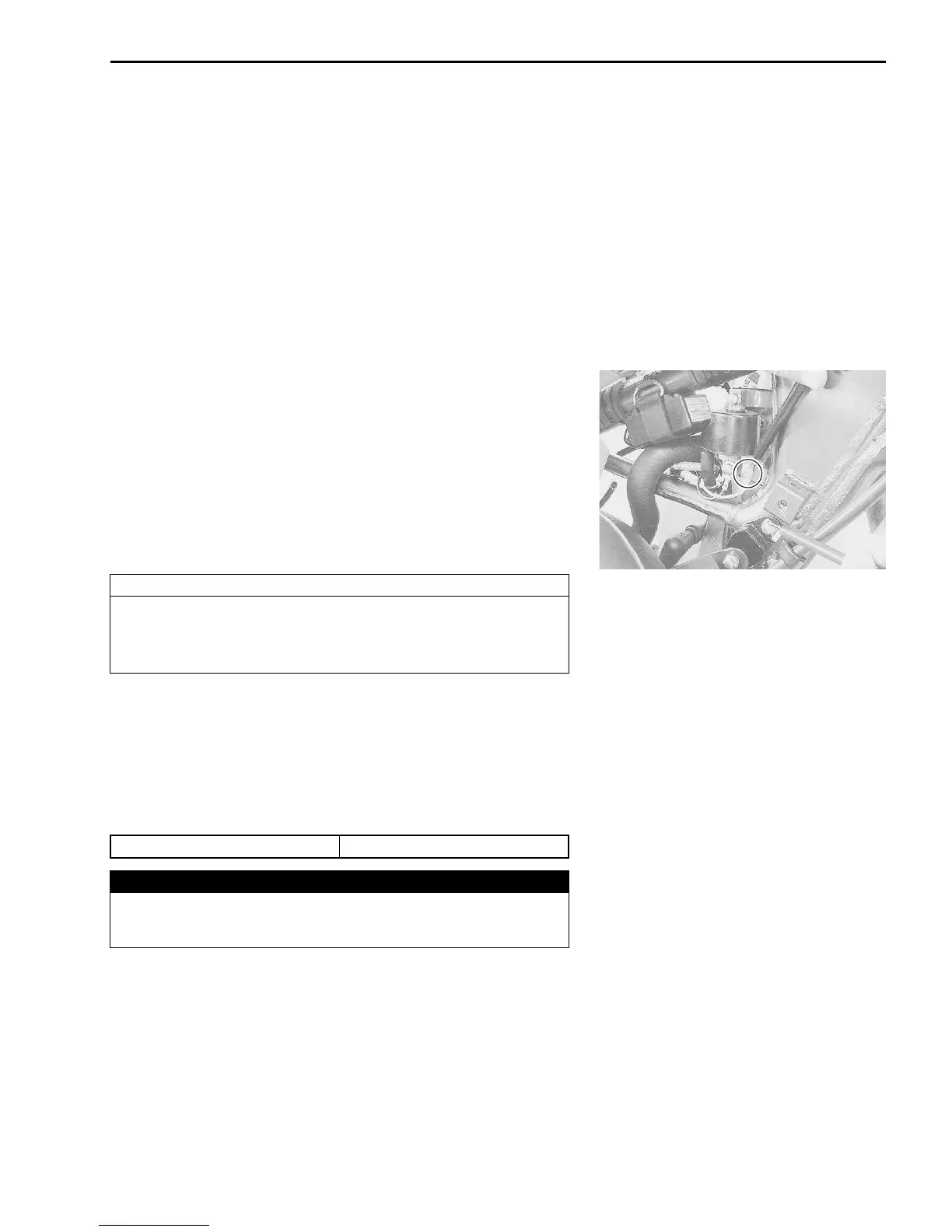

ELECTRICAL SYSTEM 13-3
IGNITION SYSTEM
IGNITION SYSTEM PEAK VOLTAGE INSPECTION
• Remove the seat fuel tank. (5-2)
• Remove the spark plug cap and spark plug.
• Connect a new spark plug to the spark plug cap and ground it
to the cylinder head.
NOTE:
Make sure that the spark plug cap and spark plug are connected
properly.
Measure ignition coil primary peak voltage using the multi-circuit
tester in the following procedure.
• Connect the multi-circuit tester with the peak voltage adaptor
as follows.
Ignition coil:
White/Blue terminal – Ground
(- probe) (+ probe)
NOTE:
Do not disconnect the ignition coil primary wire.
09900-25008: Multi-circuit tester set
• Shift the transmission into neutral, and pull the clutch lever.
• Depress the kick starter lever force fully.
• Repeat the above procedure a few times and measure the
highest ignition coil primary peak voltage.
Tester knob indication: Voltage ()
• If the voltage is lower than the specified values, inspect the
ignition coil. (13-4)
CAUTION
Before using the multi-circuit tester and peak volt
adaptor, be sure to refer to the appropriate instruction
manual.
White/Blue – Ground 200 V and more
WARNING
While testing, do not touch the tester probes and
spark plug to prevent receiving an electric shock.
