13-2 ELECTRICAL SYSTEM
CONSTRUCTION
ELECTRICAL SYSTEM

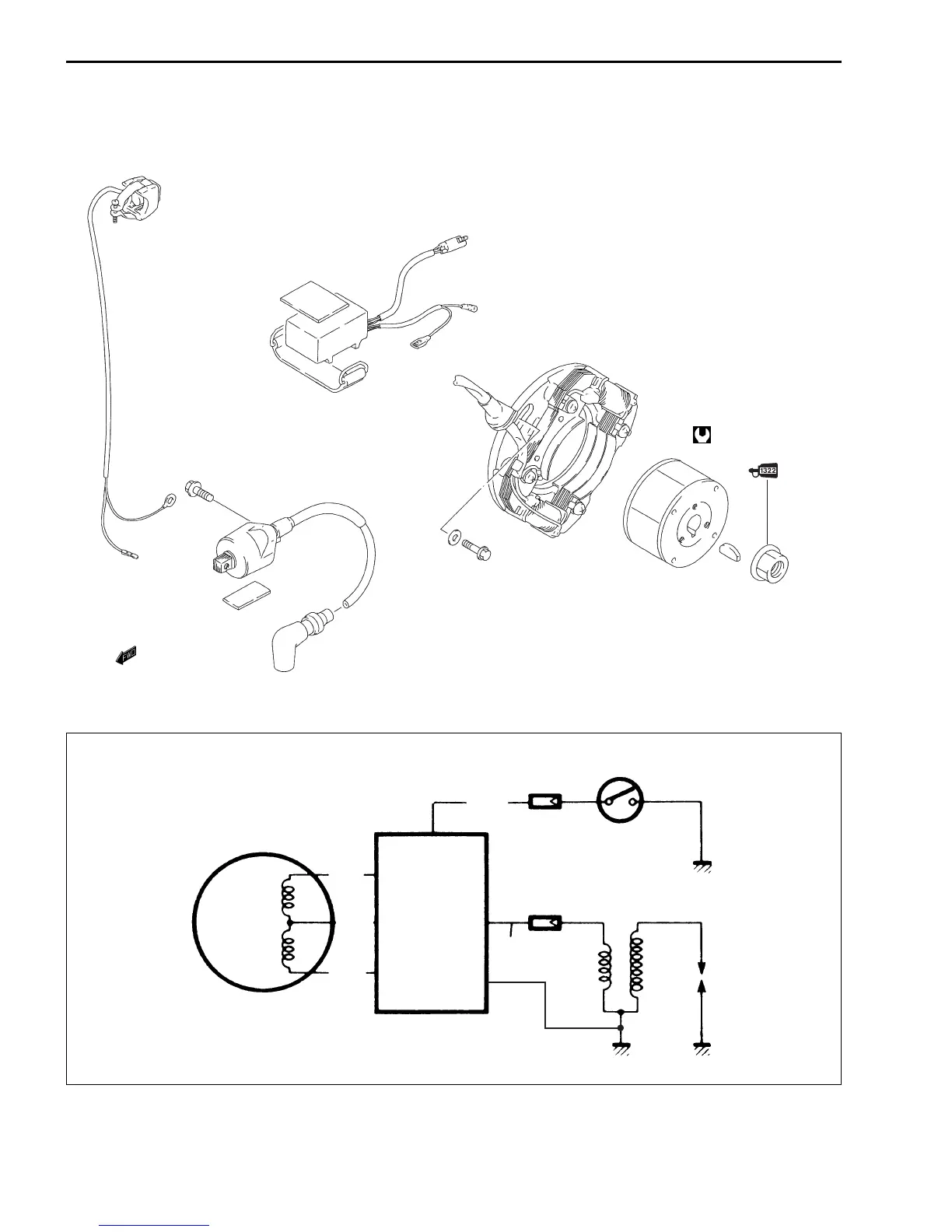

ELECTRICAL CIRCUIT
Color code:
B/W : Black with White tracer B/Y : Black with Yellow tracer
B/R : Black with Red tracer W/Bl : White with Blue tracer
R/W : Red with White tracer
35 N
.
m
(3.5 kgf-m, 25.5 lb-ft)
Magneto
B/R
R/W
B/W
CDI Unit
B/Y
Engine stop switch
Ignition coil
W/Bl
Spark plug
B/W
B/W
B/W
