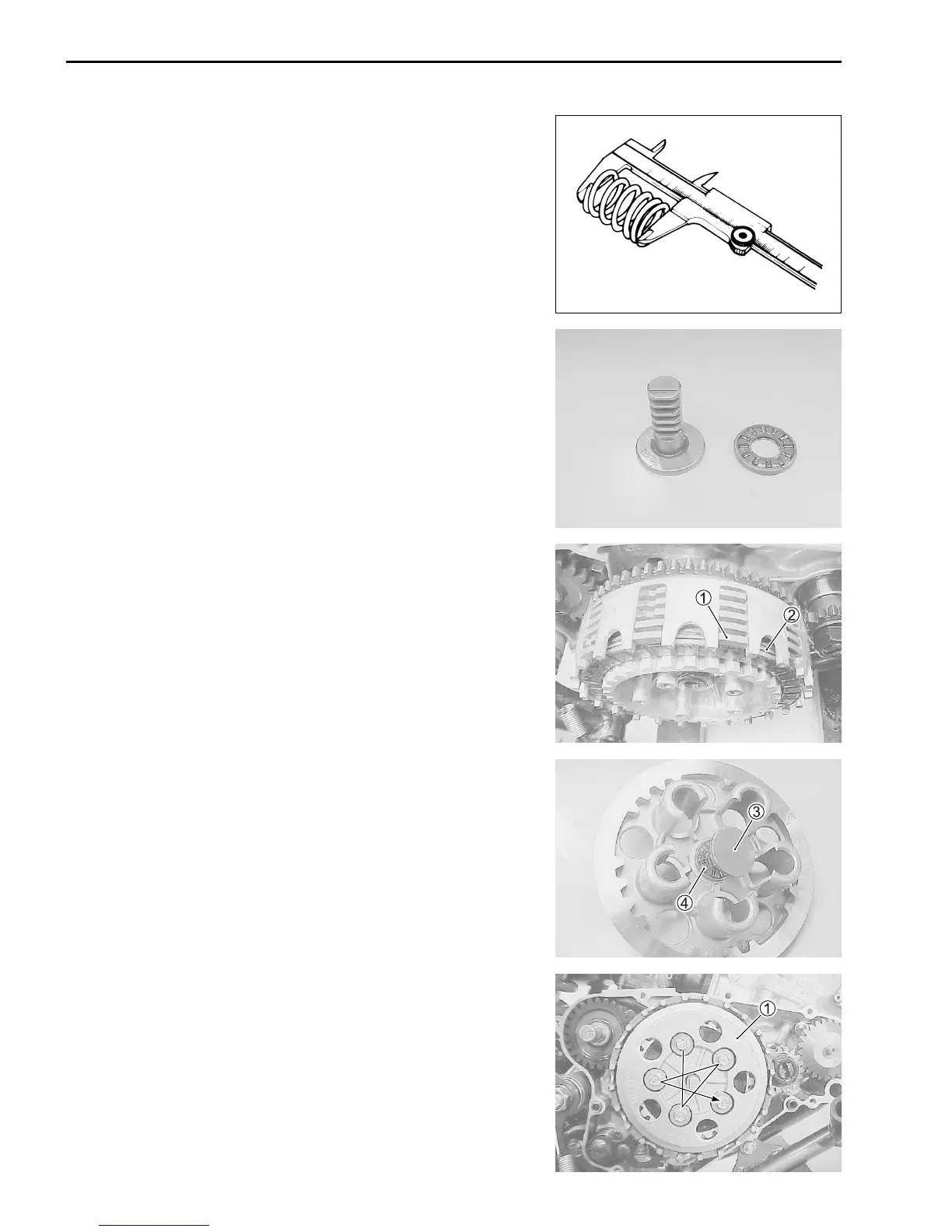

7-4 CLUTCH
CLUTCH SPRING INSPECTION
• Measure the clutch spring free length.
Clutch spring free length
Service Limit: 39.4 mm (1.55 in)
NOTE:
Replace five clutch springs together even if only one spring is
exceed the service limit.
CLUTCH RACK AND PINION INSPECTION
• Inspect the clutch release rack and pinion for wear and dam-
age.
• Inspect the clutch release arm for smooth movement and oil
leakage around the oil seal.
CLUTCH PLATE REASSEMBLY
• Apply transmission oil to the drive plates 1 and driven plates
2 and install them to the clutch sleeve hub.
• Install the rack 3 and bearing 4.
NOTE:
The roller side of the bearing must face to the rack side.
• Install the pressure plate 1.
• Install the clutch springs and bolts.
• Tighten the bolts diagonally.
