15-14 FRONT AND REAR BRAKES
BRAKE PEDAL
BRAKE PEDAL REMOVAL AND
REASSEMBLY
REMOVAL

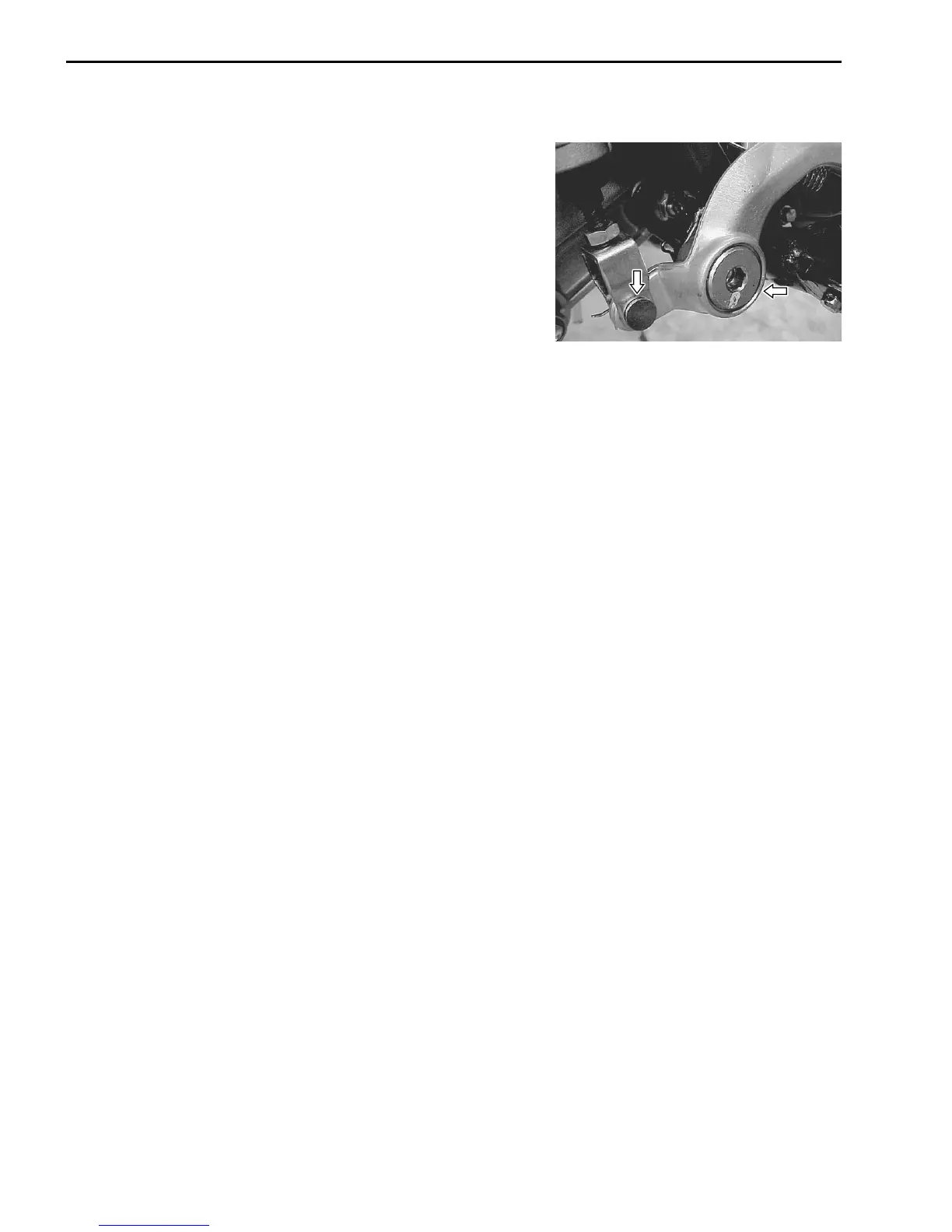

• Remove the nut from the brake pedal pivot.
• Remove the cotter pin and pin from the push rod end.
• Remove the return spring.
REASSEMBLY
• Reassemble the pin, washer and cotter pin to the push rod
end.
• Install the return spring.
• Apply grease to the brake pedal pivot shaft.
• Install the washer and cotter pin.
NOTE:
Replace the cotter pin with new one.
• Adjust the brake pedal height. (2-17)
