14-4 FRONT AND REAR WHEELS

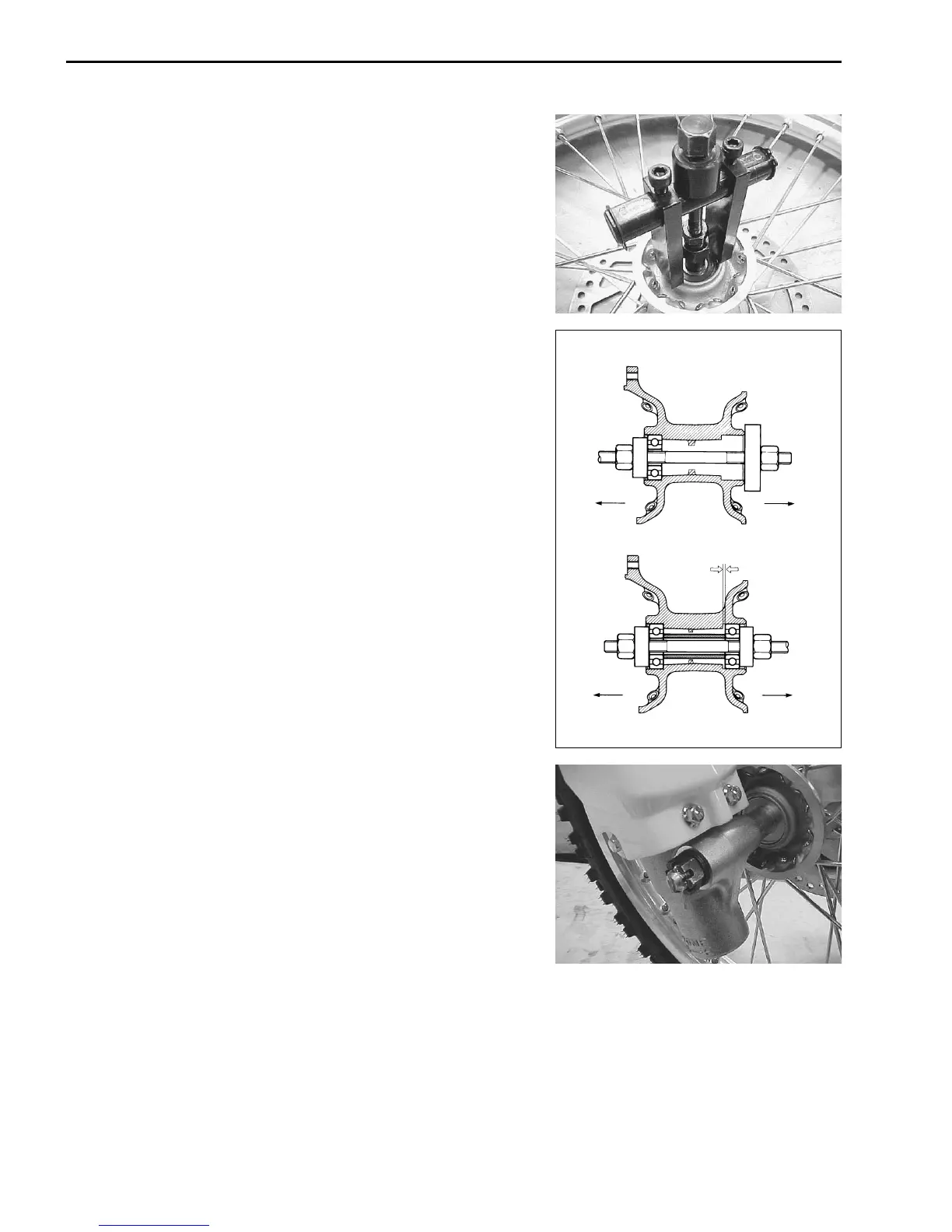

FRONT WHEEL BEARING REMOVAL
• Fit the bearing remover into the wheel bearing.
 09921-20220: Bearing remover set
• Remove the bearings and spacer.
FRONT WHEEL BEARING REASSEMBLY
• Apply grease to the bearings.
• Reassemble the spacer and bearings with the special tool.
 09941-34513: Bearing installer set
NOTE:
* The sealed cover of the bearing must face outside.
* Reassemble the left side (disc side) bearing first and then
reassemble the right side bearing.
* After reassembling the bearings, inspect the bearings for
smooth movement.
FRONT WHEEL INSTALLATION
• Install the front wheel, axle collars and front axle.
• Tighten the axle nut to the specified torque.
 Axle nut: 44 N·m (4.4 kgf-m, 32.0 lb-ft)
• Replace the cotterpin with a new one.
Left Right
Clearance
Left Right
