17-16 REAR SUSPENSION
REAR SUSPENSION LINKAGE
REASSEMBLY

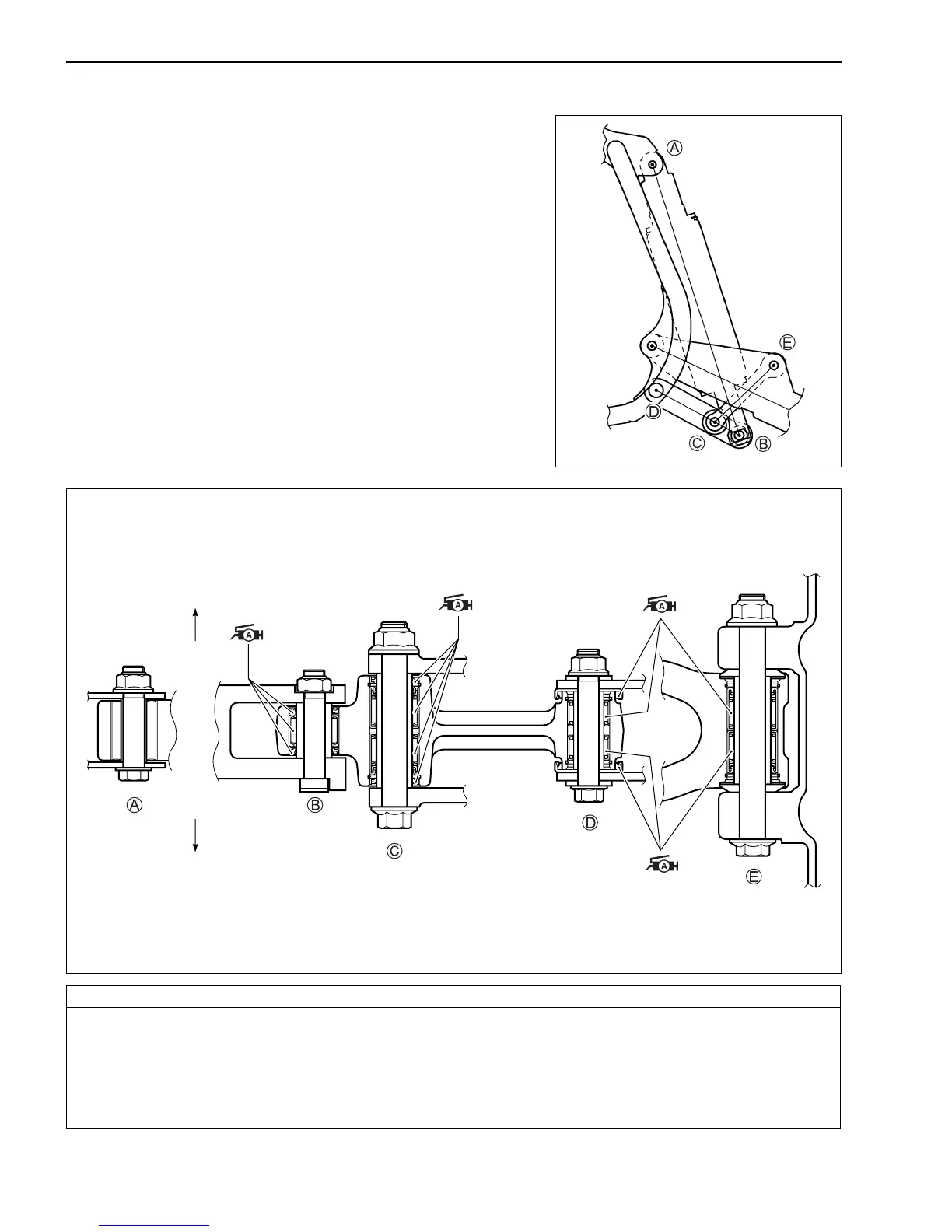

• Reassemble the rear suspension linkage.
• Tighten the nuts to the specified torque.
Tightening torque:
A: 60 N·m (6.0 kgf-m, 43.5 lb-ft)
B: 60 N·m (6.0 kgf-m, 43.5 lb-ft)
C: 80 N·m (8.0 kgf-m, 58.0 lb-ft)
D: 60 N·m (6.0 kgf-m, 43.5 lb-ft)
E: 80 N·m (8.0 kgf-m, 58.0 lb-ft)
CAUTION
* Improperly reassembled rear suspension linkage bolts can interfere with suspension move-
ment and damage the rear suspension linkage.
* Make sure that the rear shock absorber rebound damping adjuster on the bottom bracket of
the rear shock absorber is located to the right side.
* Insert the rear suspension linkage bolts from the left side.
Right
Left
