FRONT AND REAR BRAKES 15-11

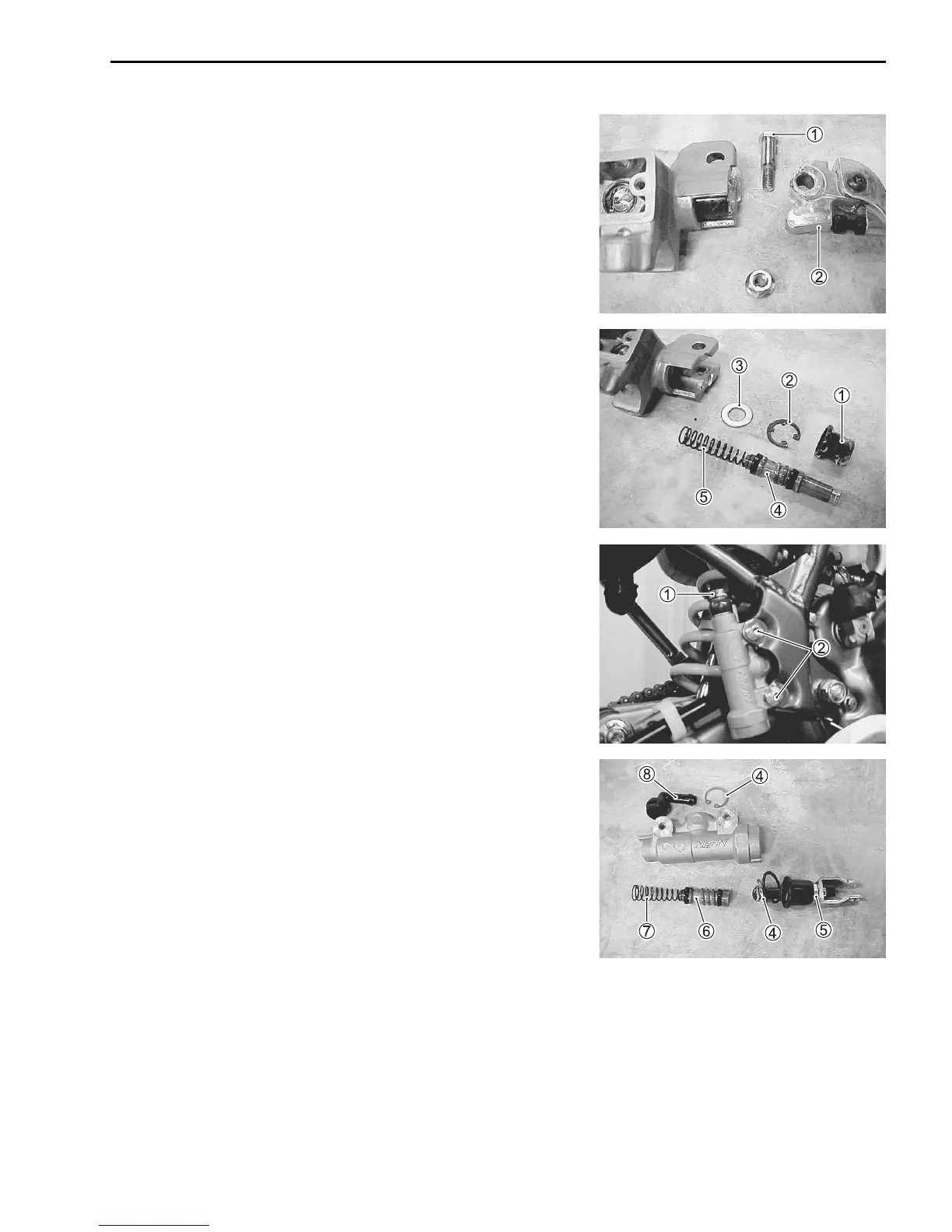

• Remove the bolt 1 and brake lever 2.
• Remove the dust boot 1.
• Remove the snap ring 2 with snap ring pliers.
• Remove the washer 3, piston/cup set 4 and spring 5.
REAR MASTER CYLINDER REMOVAL AND
DISASSEMBLY
• Drain brake fluid. (15-4)
• Remove the rear brake pedal. (15-14)
• Place a rag under the hose to catch spilled brake fluid.
• Remove the union bolt 1.
• Remove the master cylinder mounting bolts 2.
• Remove the clamp and disconnect the hose (reservoir).
• Remove the dust seal boot 3.
• Remove the snap rings 4 with snap ring pliers.
• Remove the push rod 5.
• Remove the piston/cup set 6 and spring 7.
• Remove the connector 8.
