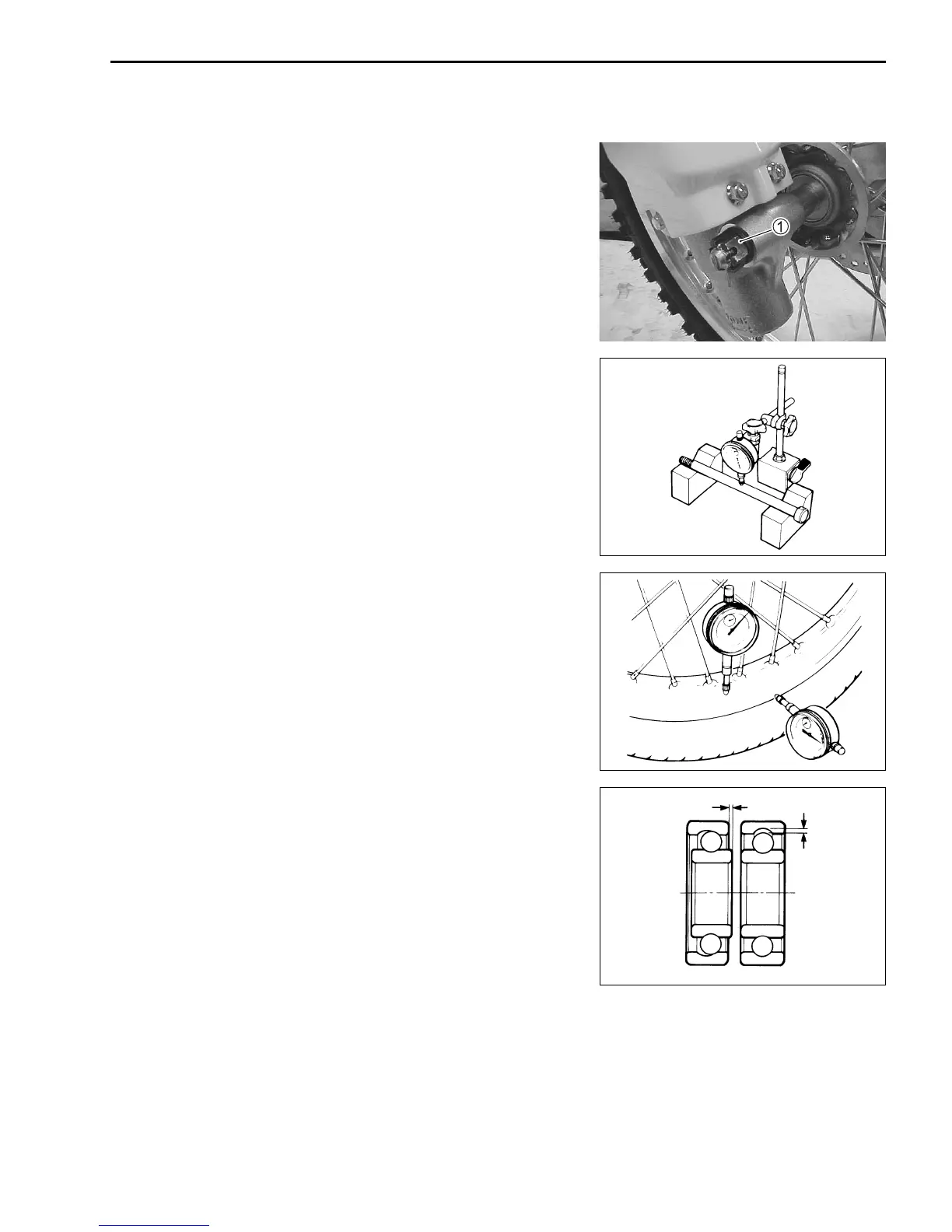

FRONT AND REAR WHEELS 14-3
FRONT WHEEL
REMOVAL
• Place the motorcycle on a block to lift front wheel off the
ground.
• Remove the cotter pin.
• Loosen the axle nut 1.
• Remove the axle.
• Remove the front wheel and collars.
INSPECTION
AXLE SHAFT
• Support the axle shaft with V-blocks and measure the axle
shaft runout.
Service Limit: 0.25 mm (0.010 in)
WHEEL RIM
• Measure the wheel rim runout with a dial gauge.
Service Limit: 2.0 mm (0.08 in) ... axial and radial
WHEEL BEARING
• Turn the inner race by finger and inspect it for smooth move-
ment.
• Inspect the clearance between the outer race and wheel hub.
• Inspect for bearing damage.
