6-14 CYLINDER, PISTON AND EXHAUST VALVE

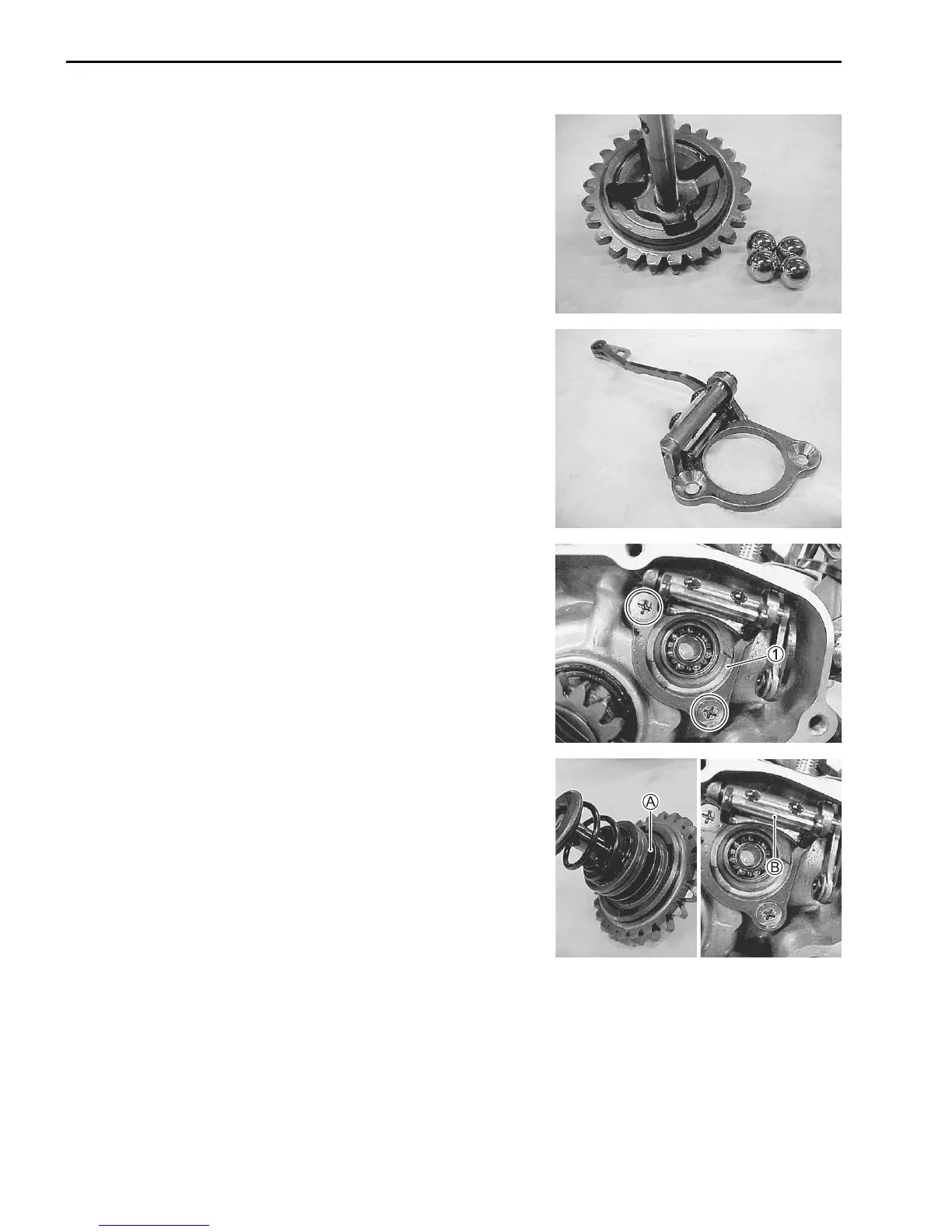

• Inspect the balls and their grooves of governor and actuator
for wear or damage.
• If they are worn or damaged, replace them with the new ones.
EXHAUST VALVE GOVERNOR
REASSEMBLY AND INSTALLATION
Installation is in the reverse order of removal and disassembly.
Pay attention to the following points:
• Apply transmission oil to the exhaust valve gevernor.
• Install the exhaust valve actuator 1.
• Install the exhaust valve governor with the groove A engaged
with the actuator arm B.
• Install the actuator lever and exhaust valve rod cover.
(6-10)
• Install the brake pedal. (15-14)
• Pour transmission oil. (2-7)
• Pour engine coolant. (2-8)
