Suzuki RM85L - Ignition Coil, CDI Unit, and Stator Coil Inspection

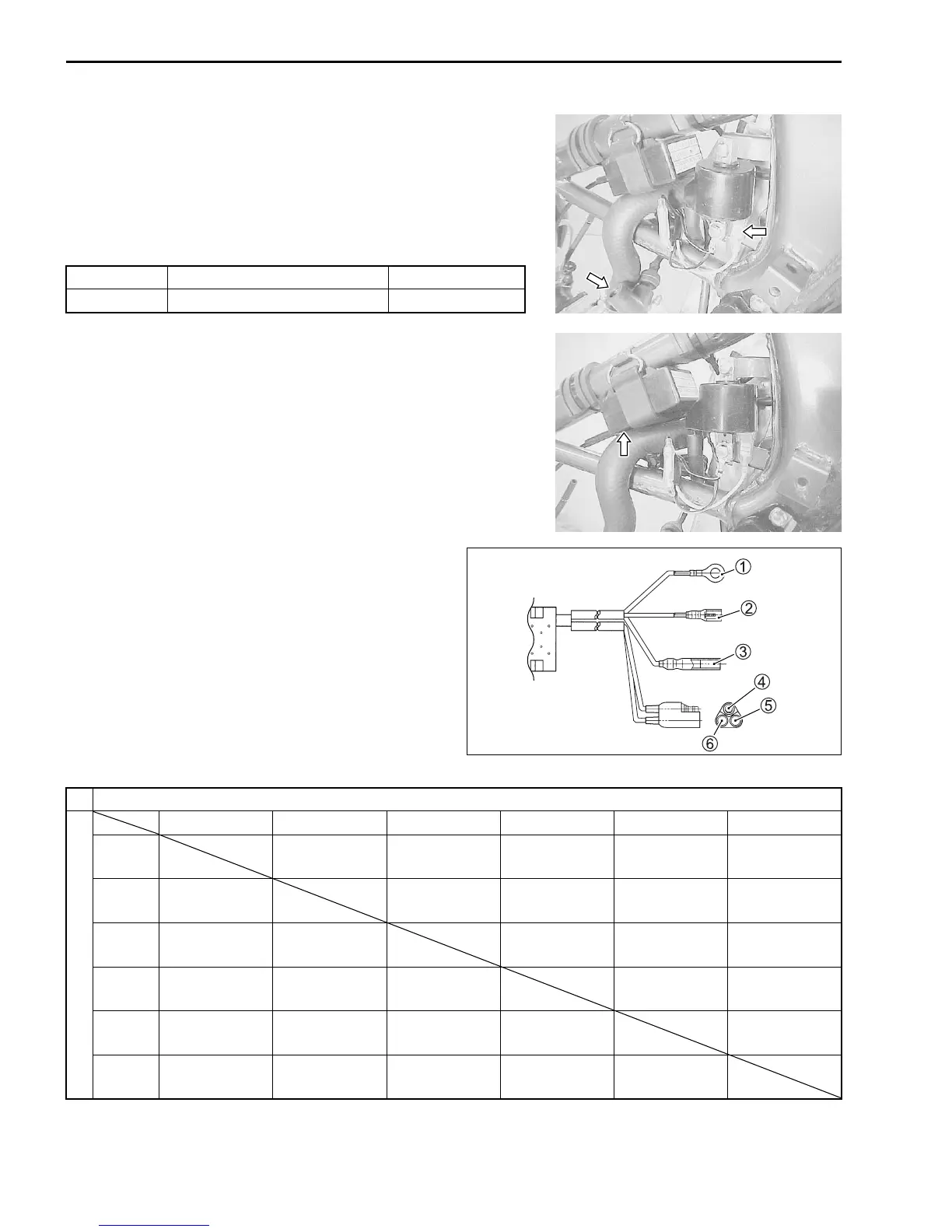

13-4 ELECTRICAL SYSTEM
IGNITION COIL INSPECTION
• Remove the seat and fuel tank. (5-2)
• Measure the ignition coil electrical resistance.
 09900-25008: Multi-circuit tester
Tester knob indication: Resistance (W)

CDI UNIT INSPECTION
• Remove the seat. (5-2)
• Remove the CDI unit from the frame.
• Measure voltage between the lead wires with the multi-circuit
tester as shown in the illustration.
 09900-25008: Multi-circuit tester
Tester knob indication: Diode ()
 Unit: V
NOTE:
– is open circuit voltage (1.511 V).
Primary White/Blue – Ground 0.2 – 1.0 Ω
Secondary Plug cap – Ground 12 – 20 kΩ
Positive + probe pin (Diode terminal)
Negative - probe pin (COM terminal)
123456
1 0.165 – 0.765 — — 0.000 – 0.300 —
2 — ————
3 0.165 – 0.765 0.589 – 1.189 0.589 – 1.189 0.165 – 0.765 —
4 1.211 – 1.511 1.211 – 1.511 1.211 – 1.511 1.211 – 1.511 —
5 0.000 – 0.300 0.165 – 0.765 — — —
6 0.290 – 0.890 0.657 – 1.257 — — —
