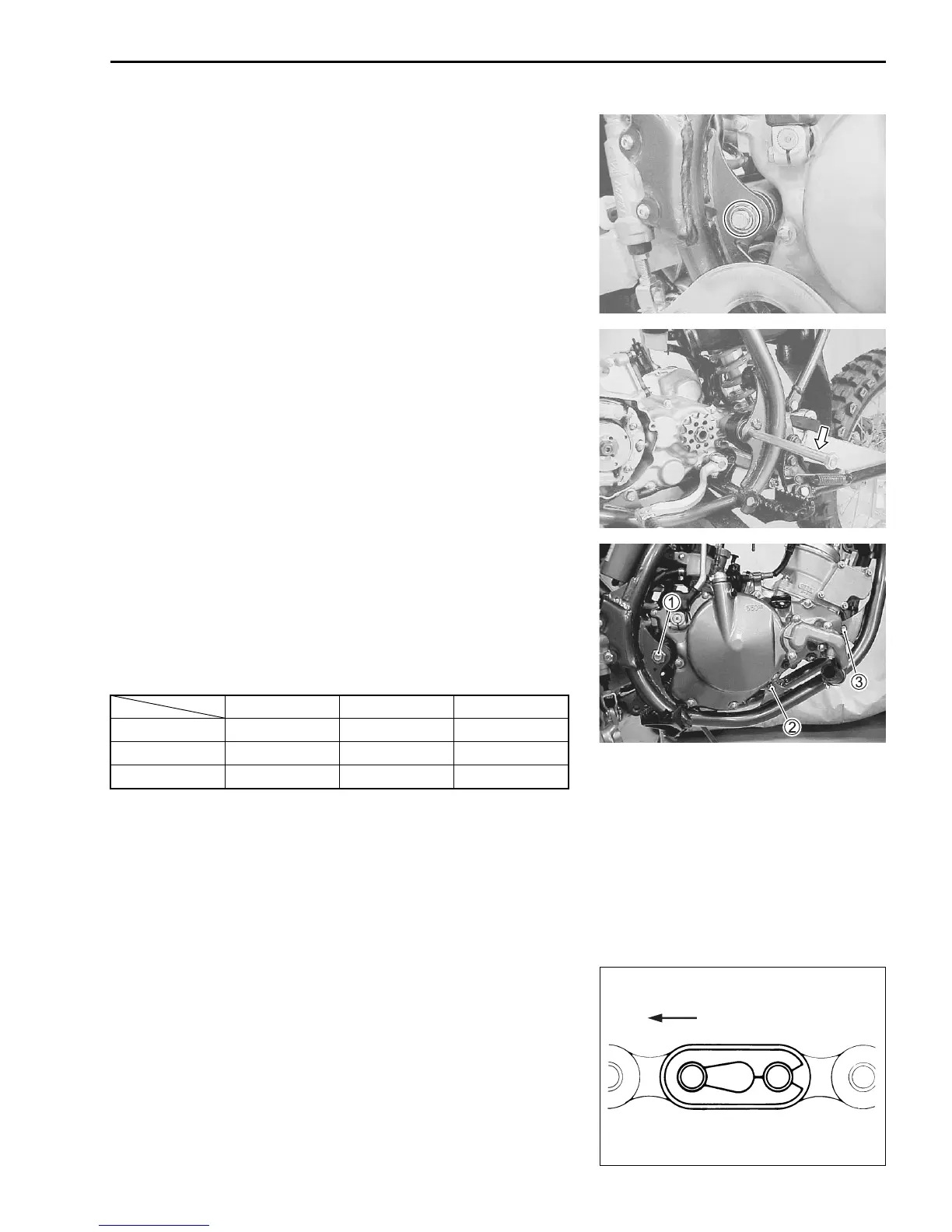

ENGINE REMOVAL AND INSTALLATION 5-5
• Loosen the swingarm pivot nut.
• Extract three quarters of the swingarm pivot shaft so as to
keep the swingarm in position.
NOTE:
The swingarm will come off when the swingarm pivot shaft is
completely removed.
• Remove the engine from the frame.
INSTALLATION
• Fit the swingarm in its position and hold it with the swingarm
pivot shaft.
• Mount the engine on the frame.
• Tighten the engine mounting nuts.
Tightening torque
NOTE:
Replace the self-locking nuts with new ones.
• Reassemble the removed parts in the reverse order of
removal.
NOTE:
Route the cables and lead wires correctly. (
18-15 and -16)
• Reassemble the drive chain clip so the slit end faces opposit
the direction of rotation.
N·m kgf-m lb-ft
1 58 5.8 42.0
2 43 4.3 31.0
3 45 4.5 32.5
Direction of travel
