9-2 BODY SERVICE
Seats
Front Seat
WARNING:
For vehicle equipped with side air bags:
• Never attempt to disassemble front seat back. Do not remove side air bag (inflator) module from
front seat back. If any abnormality is found, be sure to replace front seat back with new one as an
assembly.
• Be sure to read “SERVICE PRECAUTIONS” in Section 10B before starting to work and observe
every precaution during work. Neglecting them may result in personal injury or undeployment of
the air bag when necessary.

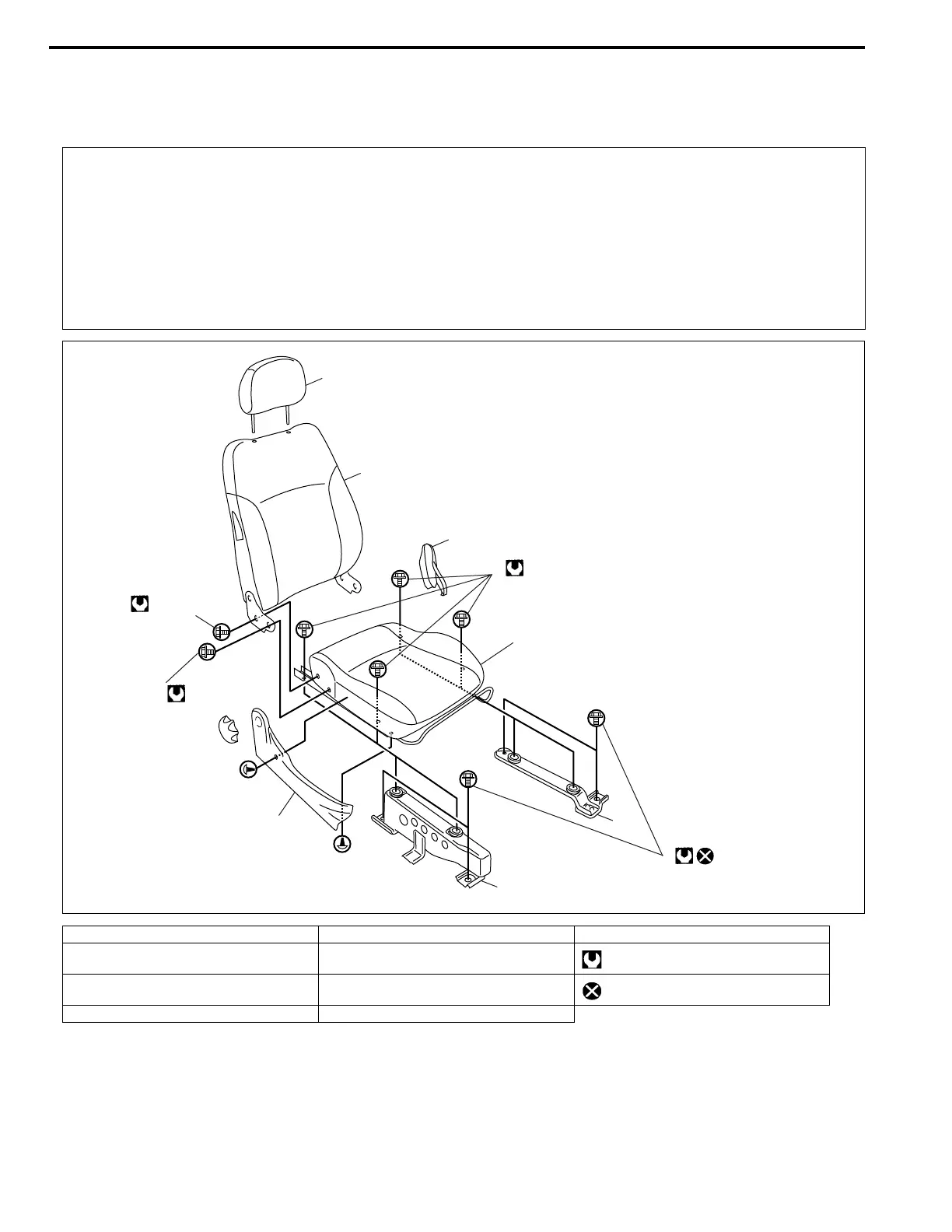

1. Seat cushion 5. Bracket 9. Reclining bolt
2. Seat back 6. Seat adjuster bolt Tightening torque
3. Head rest 7. Seat cushion bolt Do not reuse.
4 Cover 8. Reclining bolt
3
2
4
7 23 N·m (2.3 kg-m)
8 16 N·m (1.6 kg-m)
9 35 N·m (3.5 kg-m)
6 50 N·m (5.0 kg-m)
1
5
5
4
To Next Page
