BODY SERVICE 9-3
REMOVAL
1) Disable air bag system referring to “DISABLEING AIR BAG
SYSTEM” in Section 10B.

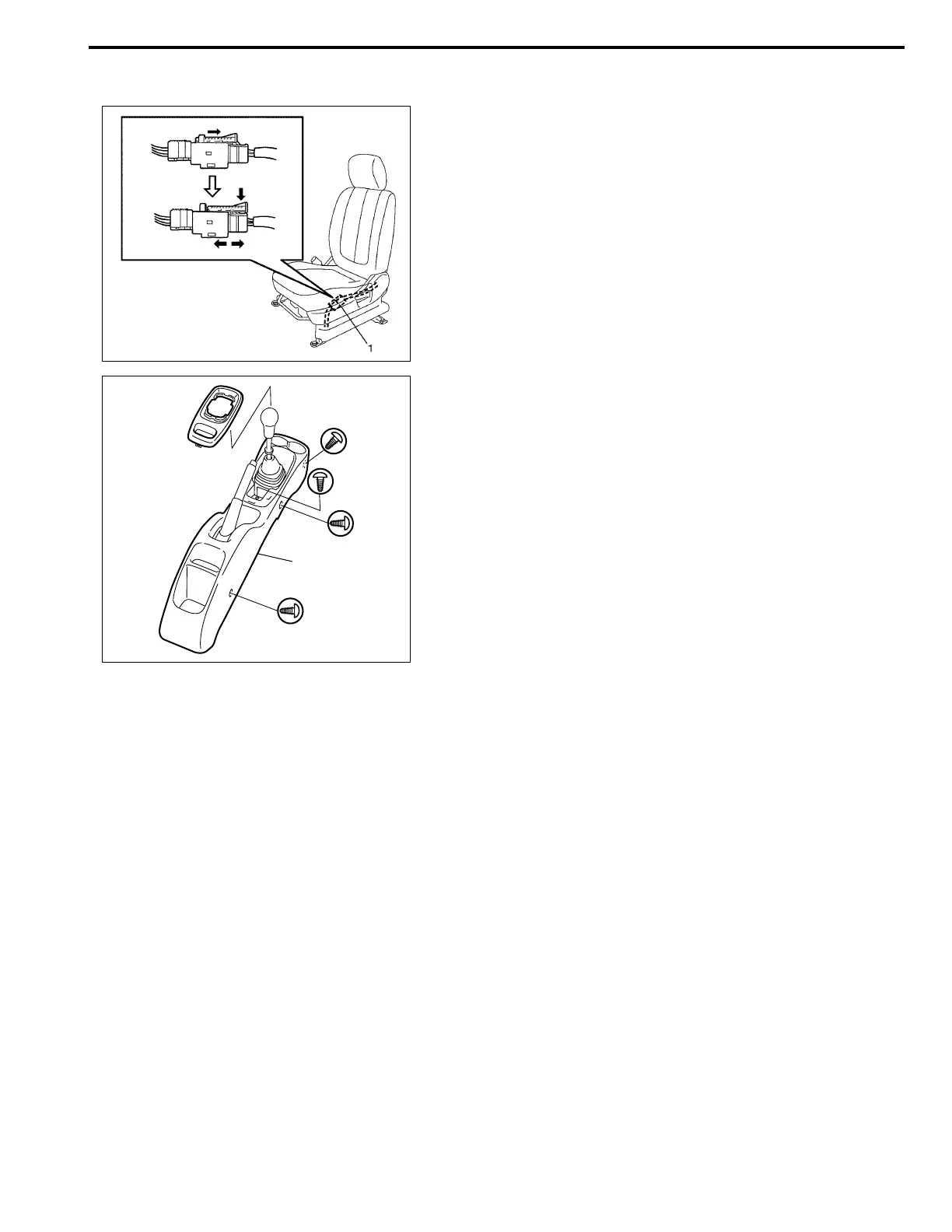

2) Disconnect side air bag coupler (1), if equipped.
3) Remove center console box (1).
4) Remove 4 mounting bolts to remove front seat from vehicle
floor.
INSTALLATION
Reverse removal procedure to install front seat.
Torque mounting bolts to specifications shown in previous figure.
1
