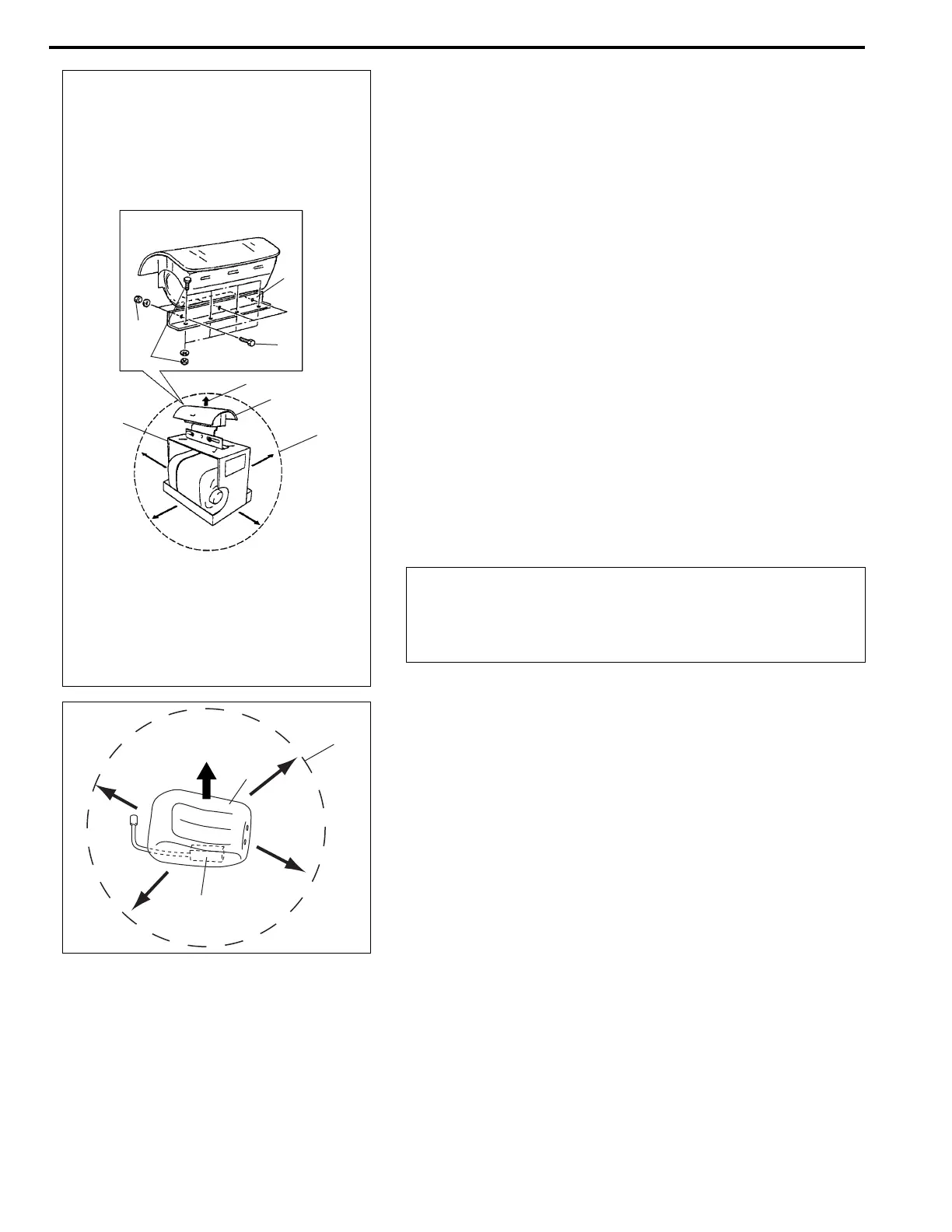

10B-86 AIR BAG SYSTEM
• For passenger air bag (inflator) module
a) Clear space (1) on ground about 185 cm (6 ft) in diameter
where passenger air bag (inflator) module for deployment.
Paved, outdoor location where there is no activity is pre-
ferred. If outdoor location is not available, space on shop
floor where there is no activity and provide sufficient ventila-
tion. Ensure no loose or flammable objects are within
deployment area.
b) Place deployment fixture (A) on ground in step i).
Special tool
(A) : 09932-75041
c) Fill plastic reservoir in deployment fixture (A) with water or
sand. This is necessary to provide sufficient stabilization of
fixture during deployment.
d) Attach passenger air bag (inflator) module (2) in deploy-
ment fixture (A) using mounting attachment (3), hold-down
bolts & nuts (4) and M8 bolts & nuts (5).
• For side air bag (inflator) module
a) Clear space (3) on ground about 185 cm (6 ft) in diameter
where side air bag (inflator) module (1) for deployment.
Paved, outdoor location where there is no activity is pre-
ferred. If outdoor location is not available, space on shop
floor where there is no activity and provide sufficient ventila-
tion. Ensure no loose or flammable objects are within
deployment area.
b) Place front seat back (2) with side air bag (inflator) module
(1) with its frontal seat cover facing up on ground in step i).
NOTE:
Make sure that deploying direction (6) faces as shown in
figure against mounting attachment (3).
CAUTION:
Be sure to use M8 size and 7T strength bolts and nut (5)
for fixing passenger air bag (inflator) module (2) to
mounting attachment (3).
(A)
2
3
4
4
5
6
1
2
1
3
