• For seat belt pretensioner

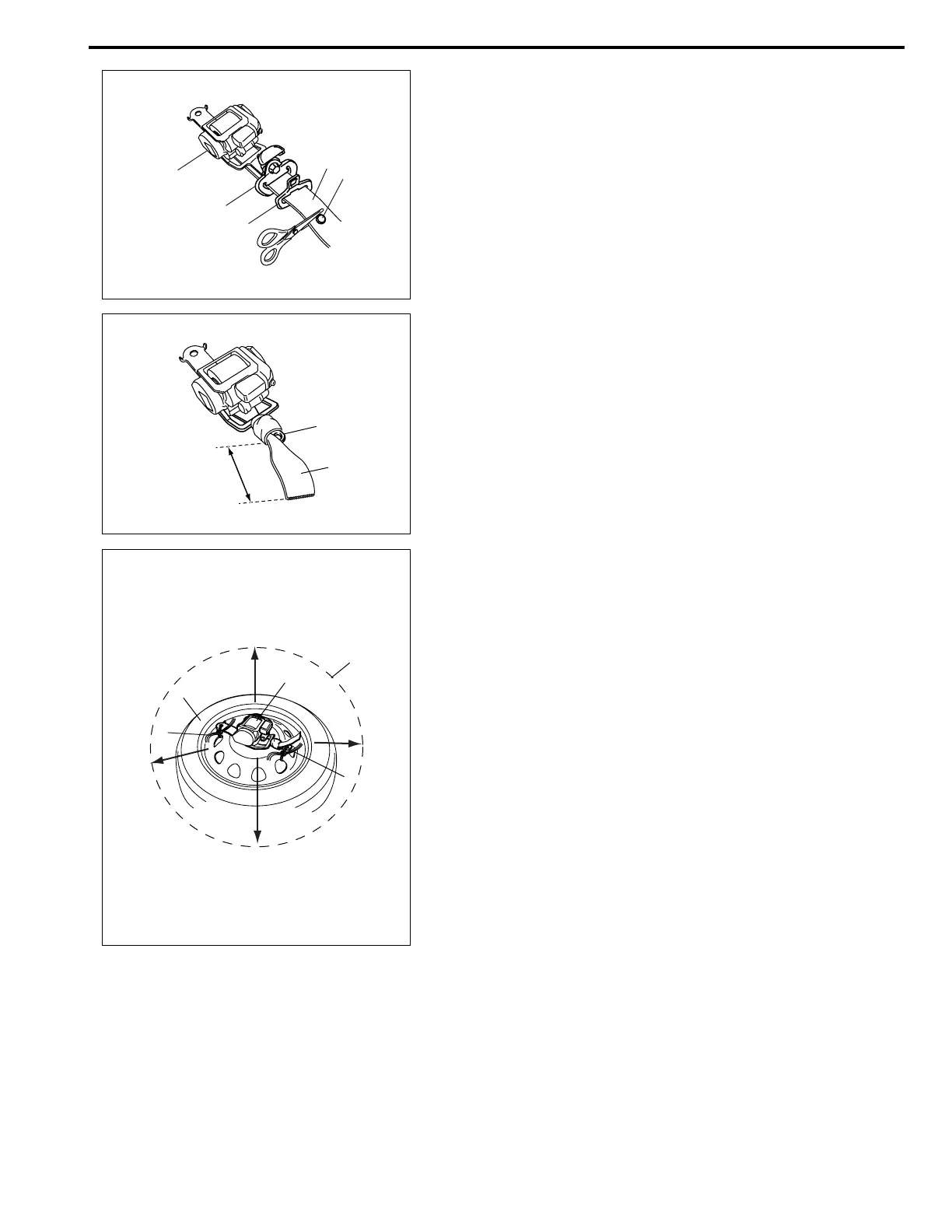

a) Cut webbing (1) at tongue plate stopper (2) of seat belt pre-
tensioner (3) side as shown.
b) Remove tongue plate (4) and shoulder anchor (5) from
webbing (1).
c) Tie webbing (1) to seat belt pretensioner mounting plate (2)
tightly at 10 cm (3.9 in.) from cutting edge as shown.
d) Tie seat belt pretensioner (1) with wire harness (2) to
wheel-installed tire (3) as shown.
Wire harness specification:
Stripped wire harness section 1.25 mm
2
(0.0019 in.
2
) or
more (Stripped wire harness diameter 1.25 mm (0.05 in.)
or more)
e) Clear space (4) on ground about 185 cm (6 ft) in diameter
where seat belt pretensioner (1) is to be activated. Paved,
outdoor location where there is no activity is preferred. If
outdoor location is not available, space on shop floor where
there is no activity and provide sufficient ventilation. Ensure
no loose or flammable objects are within activation area.
f) Place wheel-installed tire (3) with seat belt pretensioner (1)
on ground in step v).
NOTE:
Hold seat belt pretensioner (3) vertically in the same con-
dition as it is installed. Otherwise, webbing can’t be
pulled out.
1
2
4
3
5
10 cm
(3.9 in.)
1
2
NOTE:
Wind wire harness (2) around at least 3 times.
3
1
2
2
4
To Next Page
