10B-88 AIR BAG SYSTEM
7) Stretch deployment harness (A) from air bag (inflator) mod-
ule or seat belt pretensioner to its full length 10 m (33 ft).
Special tool
(A): 09932-75030
8) Place 12 volts vehicle battery (1) near shorted end of deploy-
ment harness (A).
9) Verify that area around air bag (inflator) module or seat belt
pretensioner is clear of all people and loose or flammable
objects.
10) Connect adapter cable (B) as follows.
Special tool
(B): 09932-78320
• For driver air bag (inflator) module :
Verify that driver air bag (inflator) module is resting with its
vinyl trim cover facing up, and connect adapter cable (B) to
driver air bag (inflator) module.
• For passenger air bag (inflator) module :
Verify that passenger air bag (inflator) module is firmly and
properly secured on deployment fixture (special tool).
• For side air bag (inflator) module :
To turn over seat back trim (6) and disconnect side air bag
(inflator) module connector (7), then connect adapter cable
(B) to side air bag (inflator) module.
• For seat belt pretensioner :
a) Connect adapter cable (B) to seat belt pretensioner.
b) Pile 2 wheel-installed tires (2) on top of tire with seat belt
pretensioner (3), and tie them with wire harness (4) as
shown.
Wire harness specification:
Stripped wire harness section 1.25 mm
2
(0.0019 in.
2
) or
more (Stripped wire harness diameter 1.25 mm (0.05 in.)
or more)
c) Drape blanket (5) over those tires.
11) Connect adapter cable (B) to deployment harness (A) and
lock connector with lock slider or lock lever.
NOTE:
Wind wire harness (4) around at least 2 times.

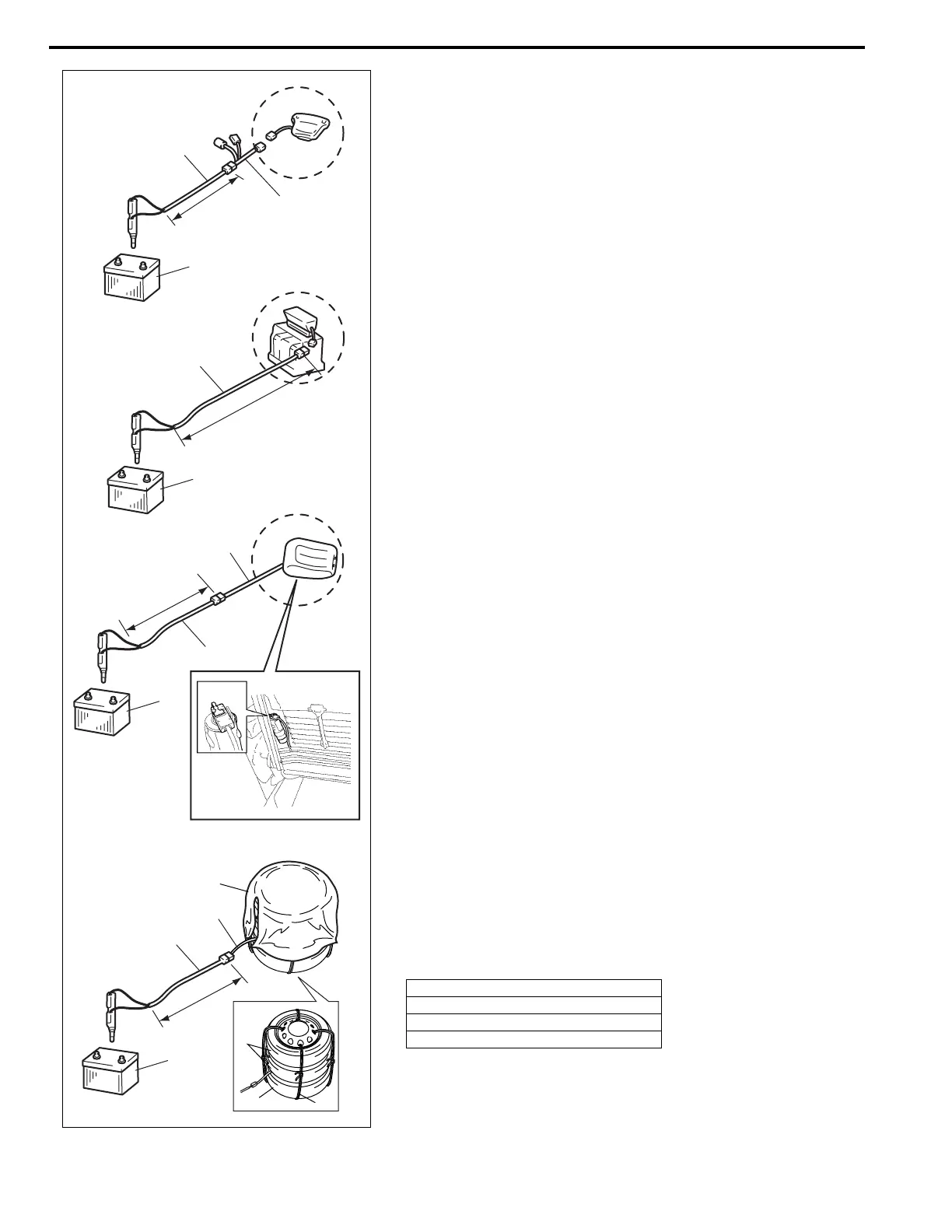

[A]: For driver air bag (inflator) module
[B]: For passenger air bag (inflator) module
[C]: For side air bag (inflator) module
[D]: For seat belt pretensioner
10 m (33 ft)
10 m (33 ft)
(A)
(B)
1
(A)
1
(A)
(B)
1
[D]
[A]
[B]
[C]
5
2
3
4
10 m (33 ft)
(A)
(B)
1
10 m (33 ft)
