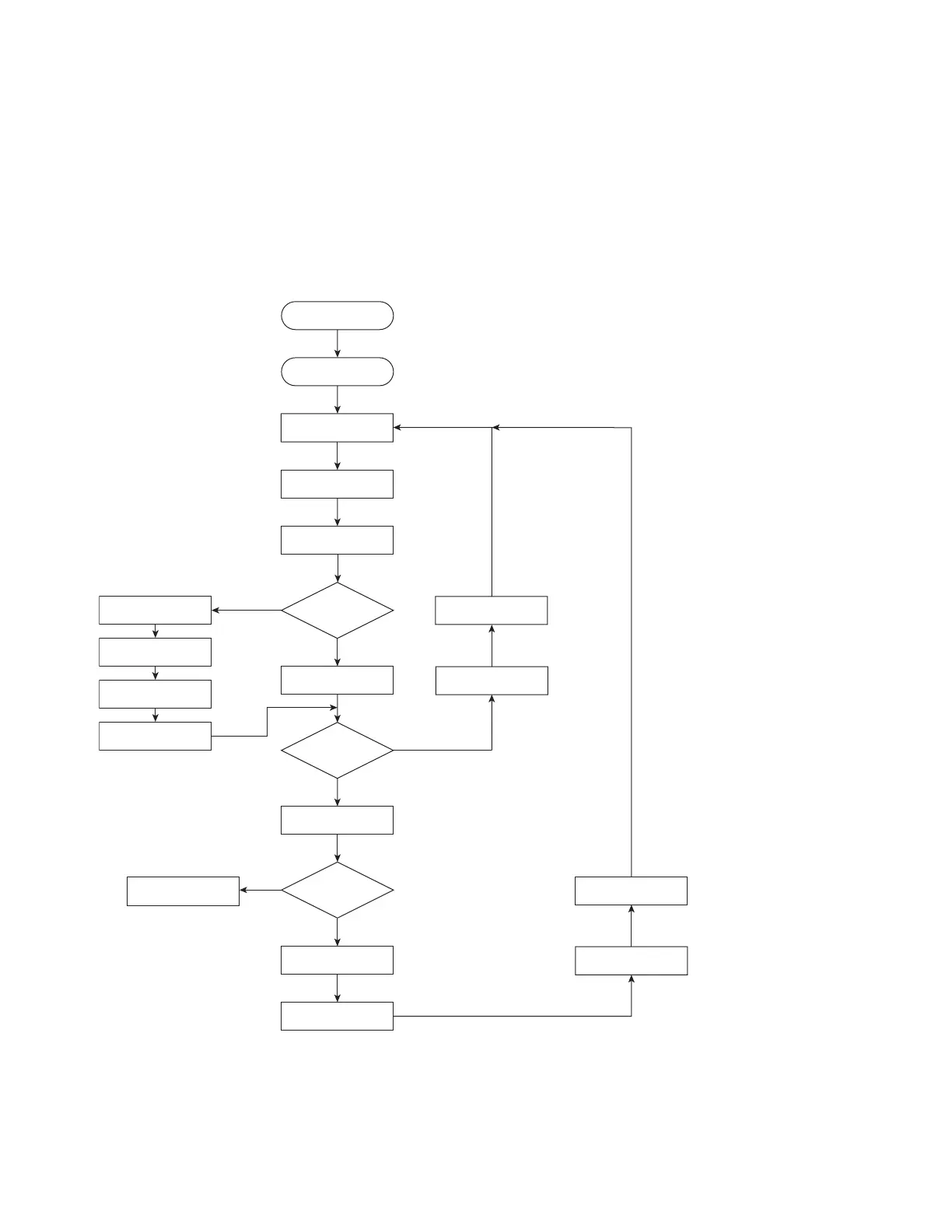

Figure 4-9 displays a Master Control File flowchart for continuous mode, where Type=0.
Figure 4-9 Master Control File flowchart—continuous mode
SetDigitalInit
Wait InitialDelay
(milliseconds)
BitCount = 16?
Read Input Byte
Inputs Match
File Definition?
Is File Loadable?
Load File
Start Mark Session
1
Mark File
End Mark Session
2
Wait NullFile
(milliseconds)
No
Yes
No
Set Error State
End Mark Session
Yes
No
SetDigital16
Read LSB Input Byte
Read MSB Input Byte
Wait
Delay16
(milliseconds)
Yes
1 Star
t mark session and run On Before Mark Session automation (if any) in the mark file.
2 Run On After Mark Session automation (if any) in the mark file and end mark session.
Enter Continuous
Mode on Power-Up
Type
= 0
SetDigitalNoMatch
SetDigitalMatch
FileMask
