Tracking denitions
Object Reference Point
The Object Reference Point is the X-Y coordinate of the
Mark’s top left corner (in the direction of part
mo-tion) as viewed on WinMark’s Drawing Canvas. See Figure 5-6.

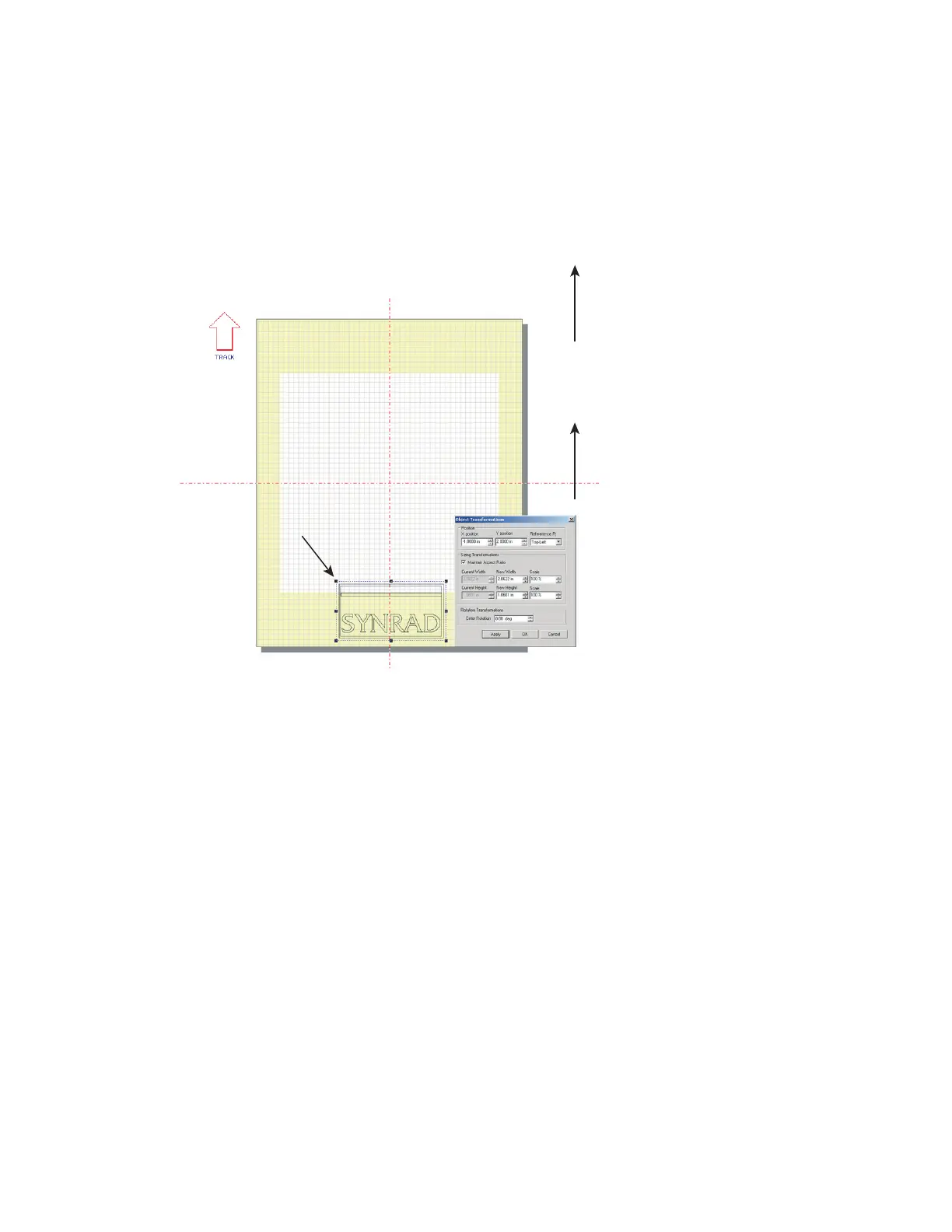

Figure 5-6 Object Reference Point
Object Reference Point
(X = –1.0, Y = 2.0)
Part
Motion
270°
