PURESTRENGTH & BENCHES: Guida all'Assistenza Tecnica - rev. 4.1
Page 6.7
6.7. BENCH PLATFORM ADJUSTMENT (PG07 – OLYMPIC
FLAT BENCH)
Follow the following detailed steps in order to correctly adjust the tension of the spring which keeps
the platform in the correct position.

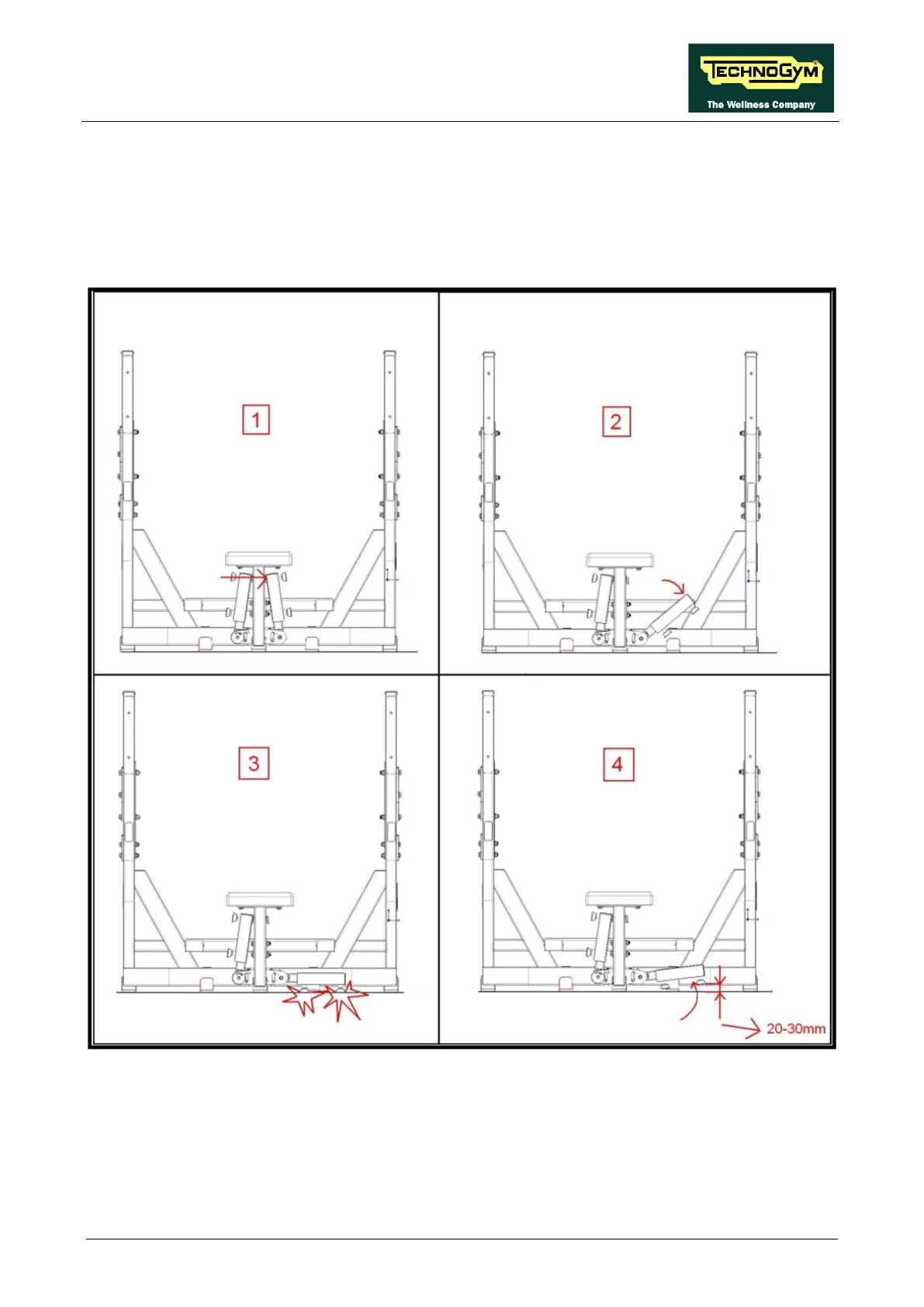

Figure 6.7-1
1. Lower the platform as indicated by the arrow (step 1) and wait that the platform goes
completely down (step 2).
2. Check that after the platform touches the ground (step 3)
it raises again from the floor of about
20-30mm (step 4) and remains in that position.
