PURESTRENGTH & BENCHES: Guida all'Assistenza Tecnica - rev. 4.1
Page 5.1
5. DISASSEMBLING COMPONENTS
5.1. DISASSEMBLING COMMON TO SEVERAL EQUIPMENT
5.1.1. SEAT ADJUSTMENT SYSTEM

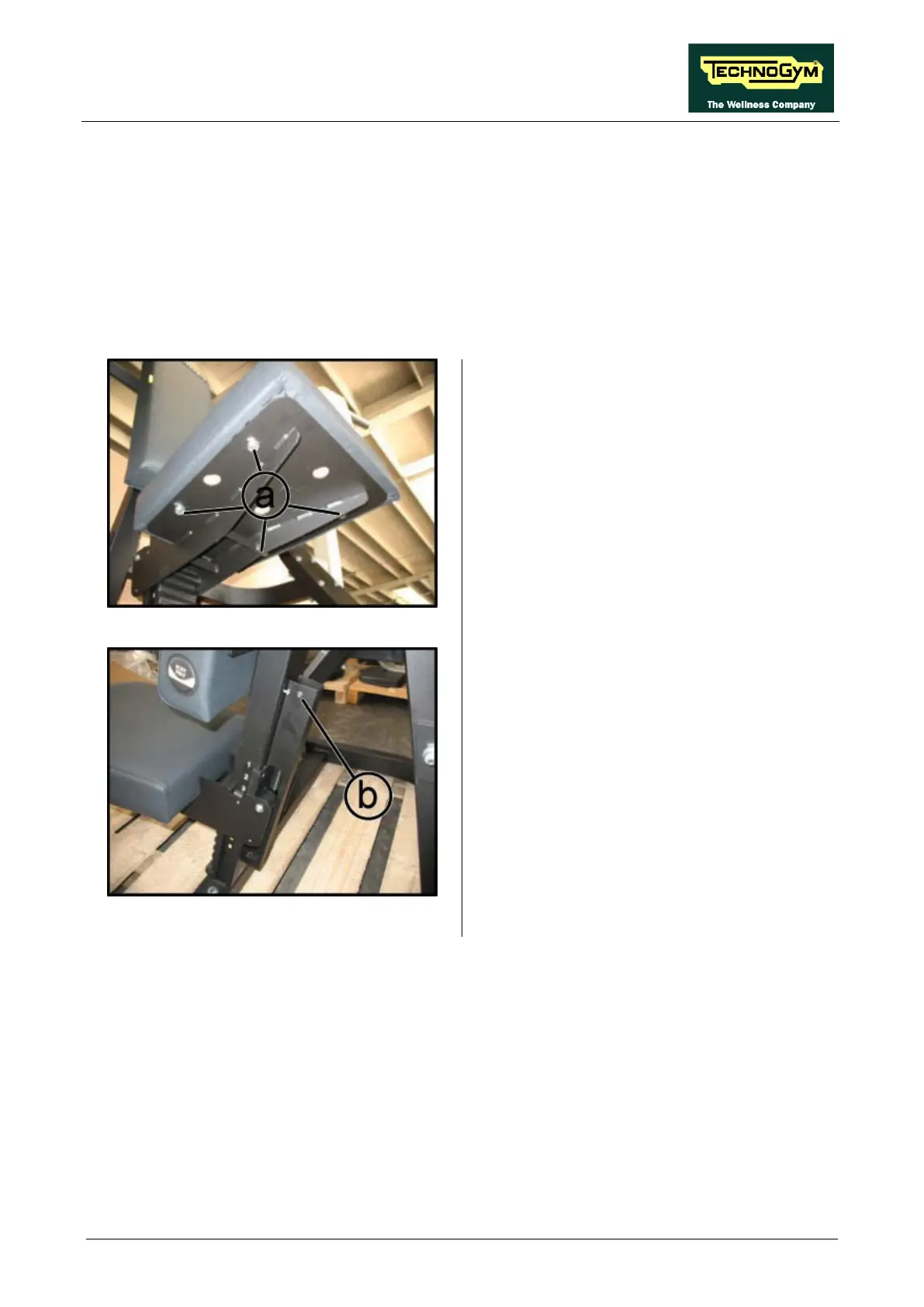

Figure 5.1-1
1. Unscrew the 4 screws (a) using a 17mm
wrench.
2. Remove the seat.
Figure 5.1-2
3. Unscrew the 2 screws (b) using a Phillips
screwdriver.
Continued on following page →
