5.13.3. DISASSEMBLING THE SEAT ADJUSTING SYSTEM

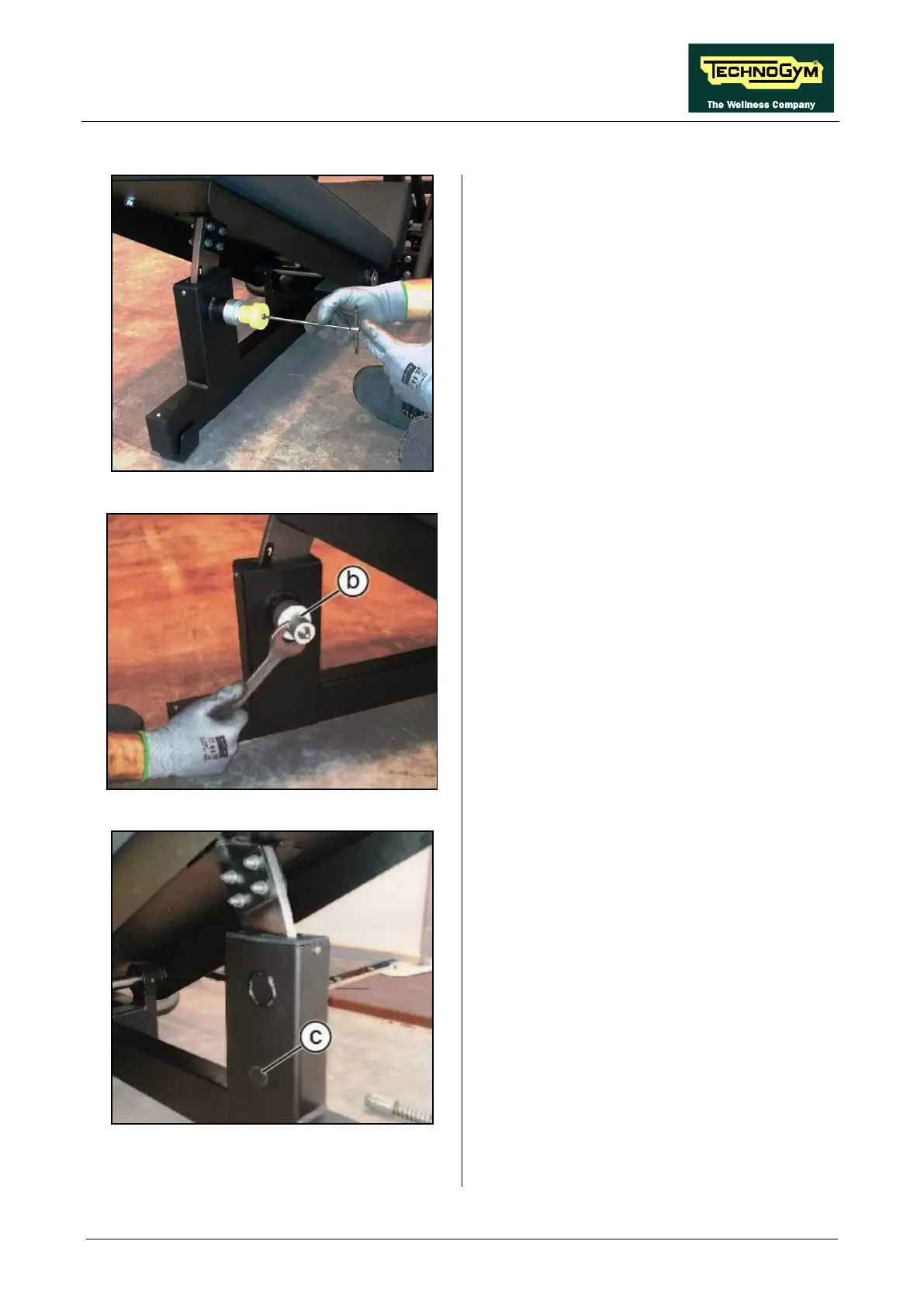

Figure 5.13-14
1. Position the seat in position no. 1 of the
selector.
2. Unscrew the screw (a)
of the knob using a
4mm hexagonal key and remove it.
Figure 5.13-15
3. Unscrew the ringnut (b) using a 27mm
wrench.
4. Remove the pin.
Figure 5.13-16
5. Remove the cap (c) with a flat screwdriver.
Continued on following page →
