5.11. DISASSEMBLING THE LEG EXTENSION (MG65)
5.11.1. DISASSEMBLING THE SELECTION PIN

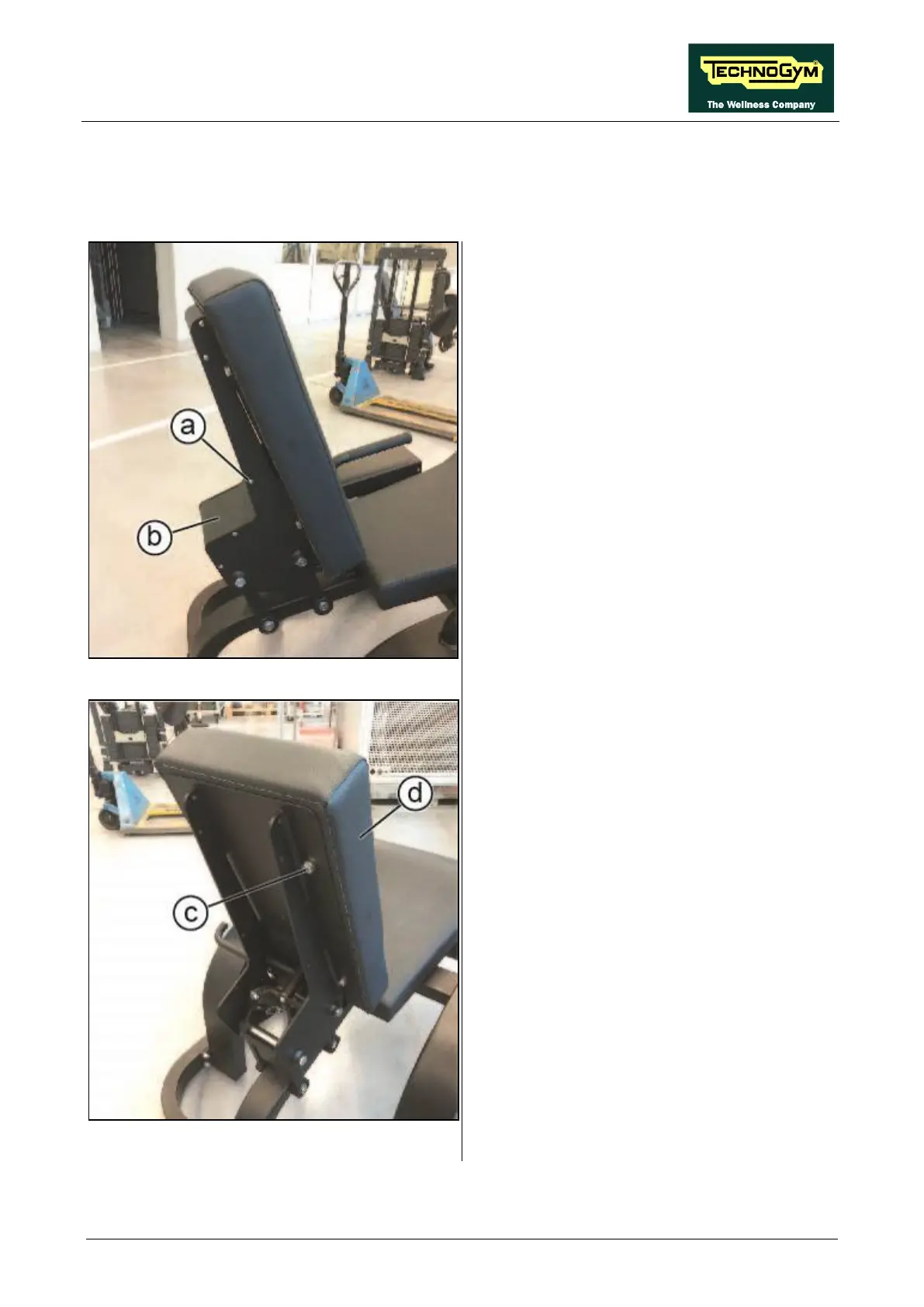

Figure 5.11-1
Bring the back-rest fully back.
1. Unscrew the 5 screws (a)
using a medium
Phillips screwdriver.
2. Remove the guard (b).
Figure 5.11-2
Remove the backrest upholstery to facilitate the
operations
3. Unscrew the 4 screws (c)
using a 16mm
wrench.
4. Remove the upholstery (d).
Continued on following page →
