5.13. DISASSEMBLING THE LINEAR LEG PRESS (MG75)
5.13.1. DISASSEMBLING THE SLIDING BARS AND CARRIAGE BEARINGS

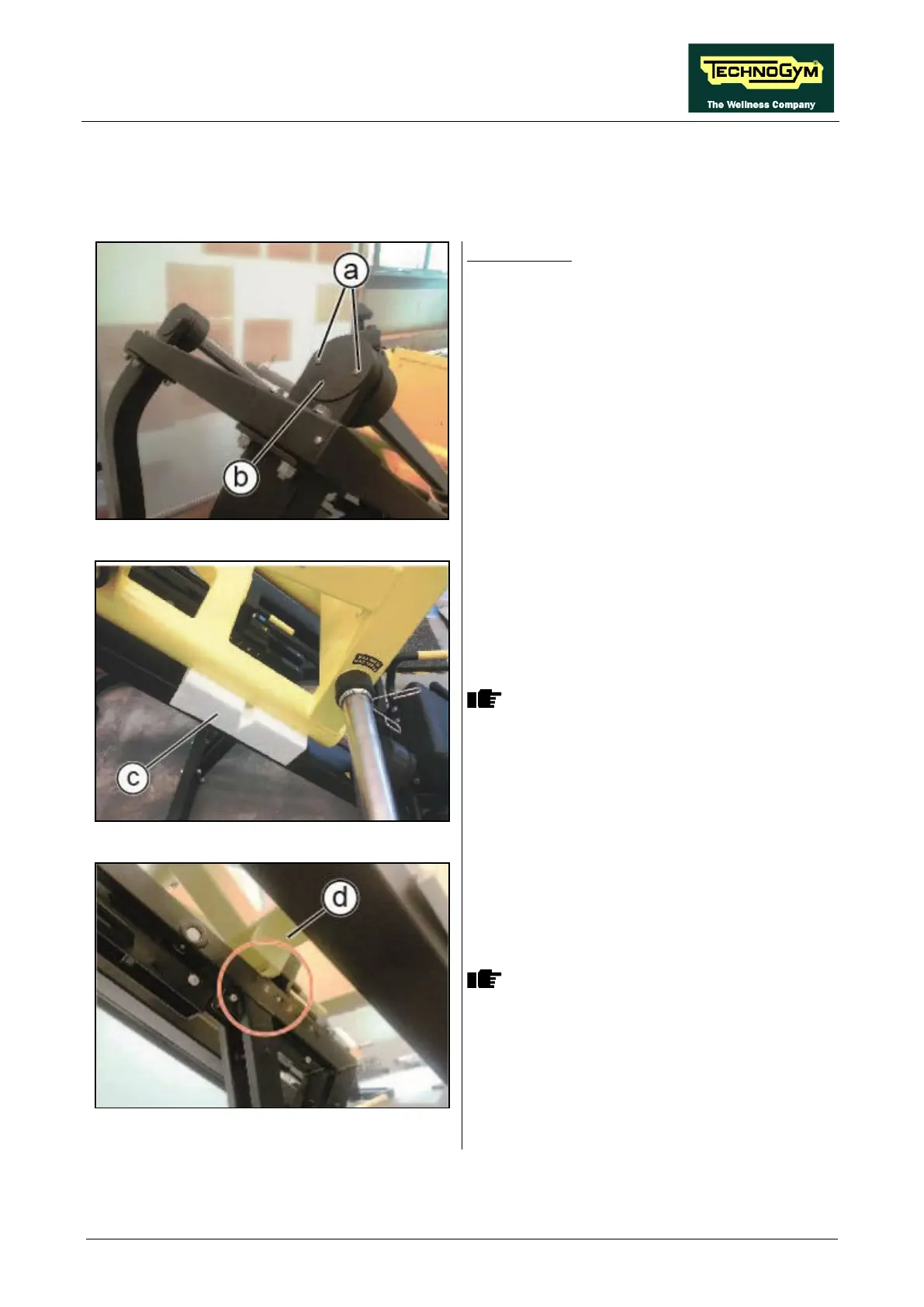

Figure 5.13-1
For each bar:
1. Unscrew the two screws (a)
using a 3mm
hexagonal key.
2. Remove the guard (b).
Figure 5.13-2
3. Position the polystyrene shim of the bars
packaging (c)
, (or a 30mm shim), to support
the carriage, as shown in the figure at the
side.
Replace one bar at a time.
Figure 5.13-3
4. Position the block device (d) in position no.
5.
5. Position the carriage completely down.
Fasten the carriage with a safety belt.
Continued on following page →
