PURESTRENGTH & BENCHES: Guida all'Assistenza Tecnica - rev. 4.1
Page 5.42

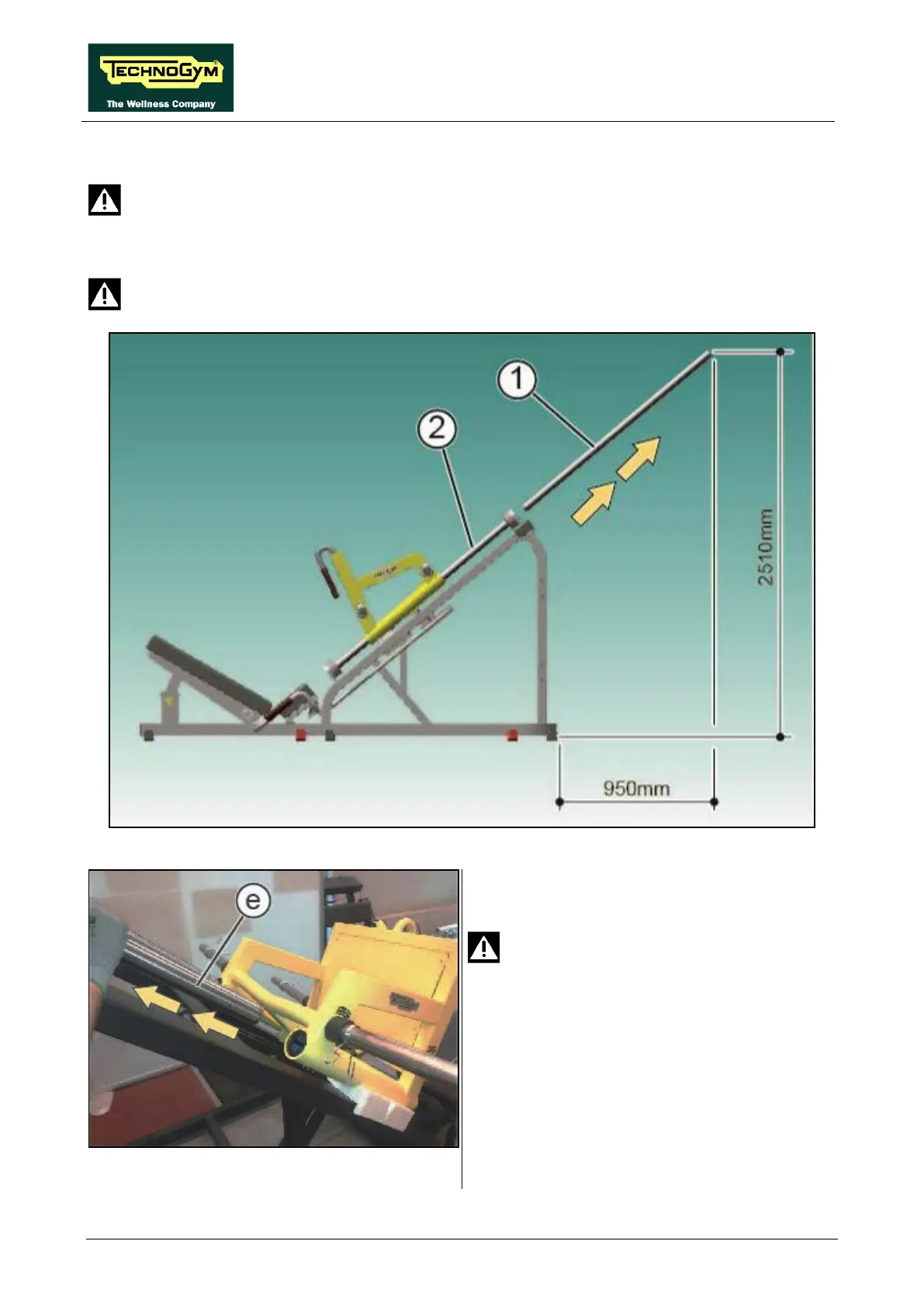

CAUTION: Before removing the bar, make sure to have an operating space of about 1
meter in length and about 2.6m in height.
CAUTION: Consider also the bar weight, approx. 25kg.
Figure 5.13-4
Figure 5.13-5
6. Pull out the sliding bar (e) upwards, as shown
in the figure at the side.
CAUTION: When reassembling hold the
sliding bar to prevent it from hitting
against the bearings.
