PURESTRENGTH & BENCHES: Guida all'Assistenza Tecnica - rev. 4.1
Page 5.14
5.2.3. CALF CARRIAGE

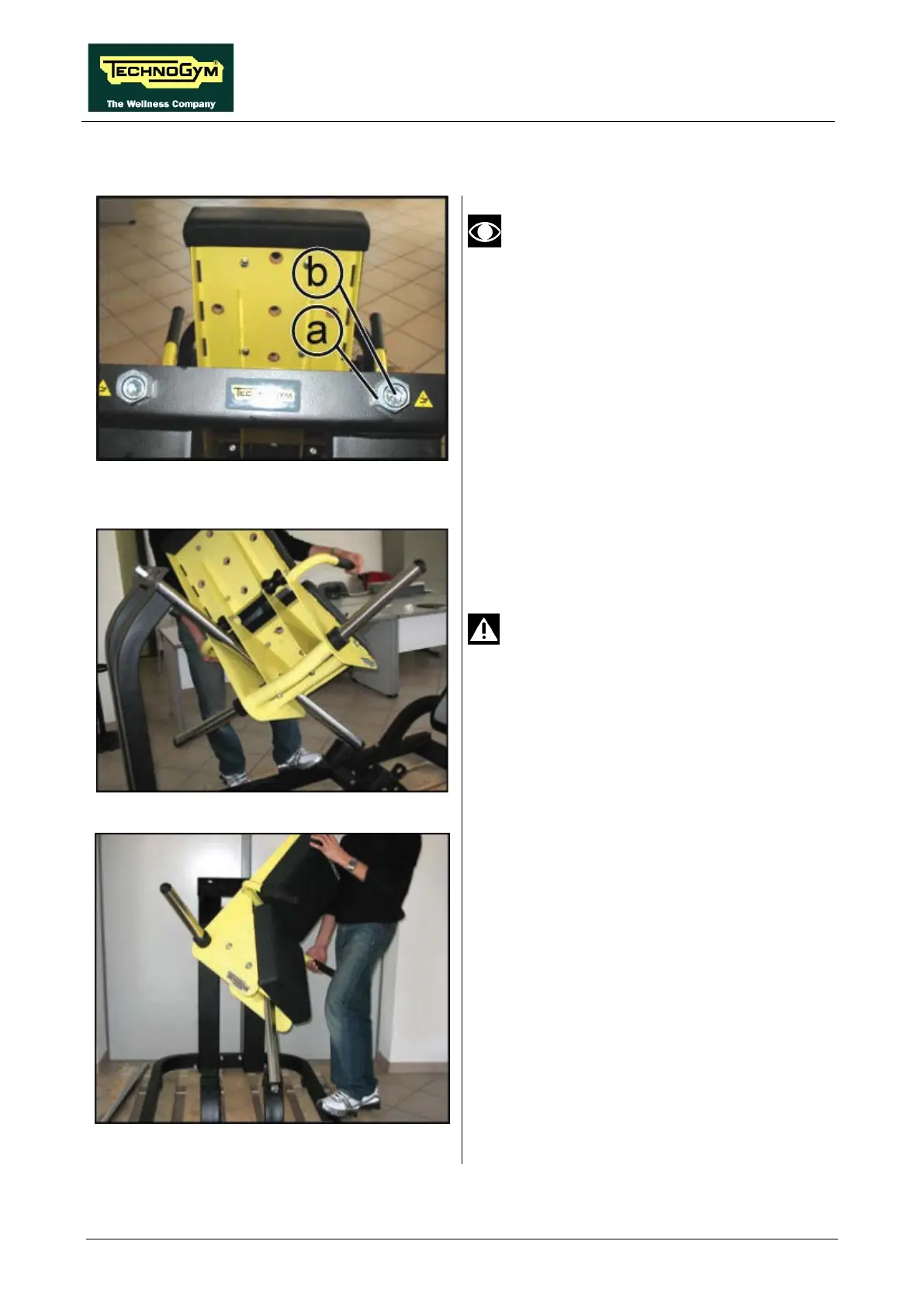

Figure 5.2-4
Carry out the procedure first on one
guide bar and then on the other.
1. Mark the position of the cams (a) for
reference during reassembly.
2. Unscrew the screws (b)
ba
rs with a 14mm hexagonal key, while at
the same time block the cam in place with a
32mm wrench.
3. Also release the lower part of the chrome bar.
Figure 5.2-5
4. Remove the bar by rotating the carriage to
one s
ide as shown in the figure, and pulling it
out.
CAUTION: Take care during removal of
the chrome bars, as they are very heavy.
Figure 5.2-6
5. Repeat the above procedure on the second
bar, as shown in the figure.
Continued on following page
→
