PURESTRENGTH & BENCHES: Guida all'Assistenza Tecnica - rev. 4.1
Page 5.6

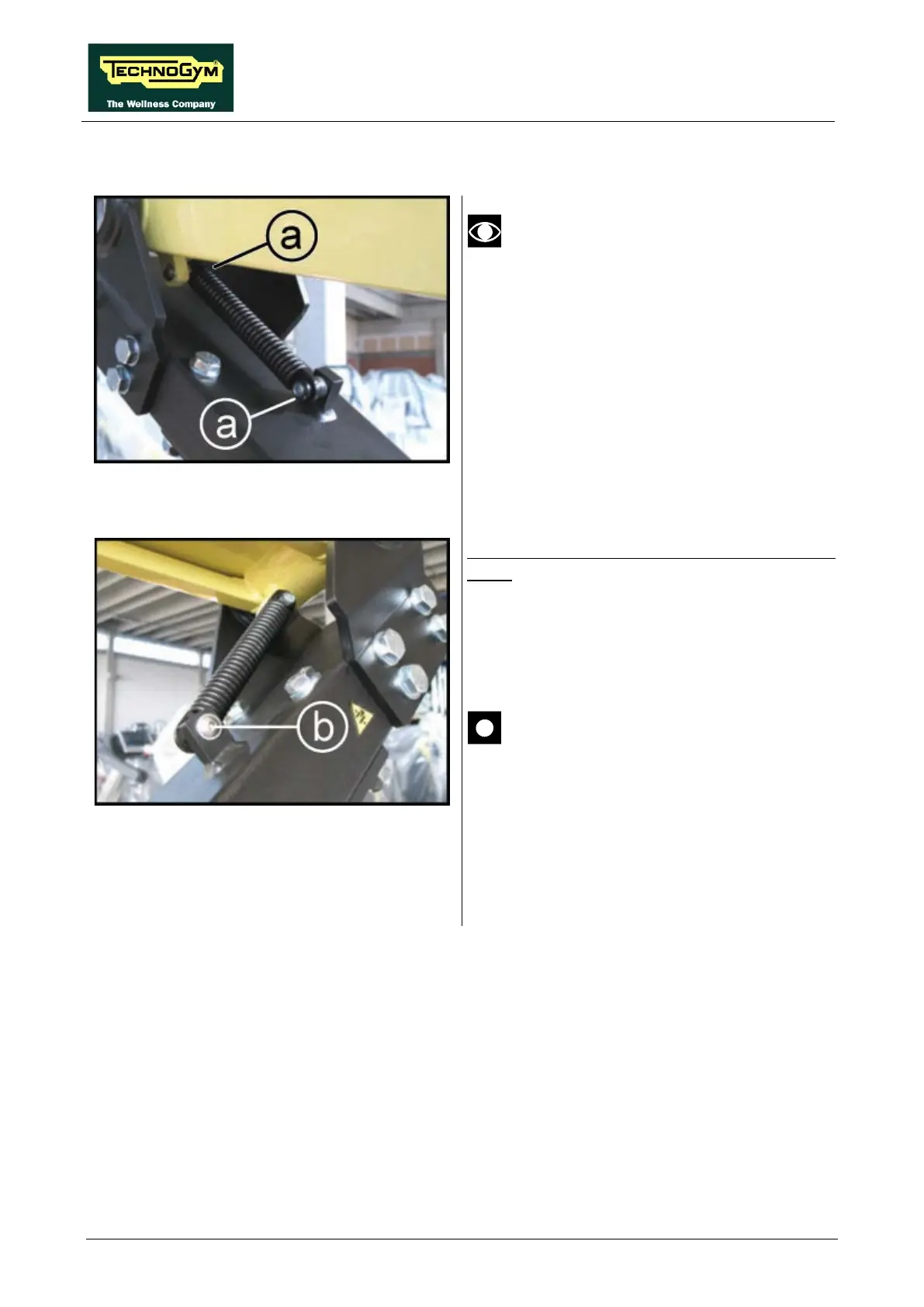

5.1.6. DISASSEMBLING THE EASY-START LEVER SPRING
Figure 5.1-14
For this operation, the lever must be
raised so that the tension on the spring is
released.
1. Remove the snap rings (a) from either side.
2. Pull the spring out from the cam pin.
Figure 5.1-15
To replace the cam pins on which the spring is
fitted:
3. Unscrew the screw (b)
using a 4mm
hexagonal key and holding the pin in place
with a 5mm hexagonal key.
After completing this operation, check
the positi
on of the lever as described in
paragraph 6.2. “
start do not rest against the buffers”.
To reassemble the removed parts, carry out the
disassembling steps in reverse order.
