PURESTRENGTH & BENCHES: Guida all'Assistenza Tecnica - rev. 4.1
Page 5.10
5.1.9. DISASSEMBLING THE STRETCHING HANDLE

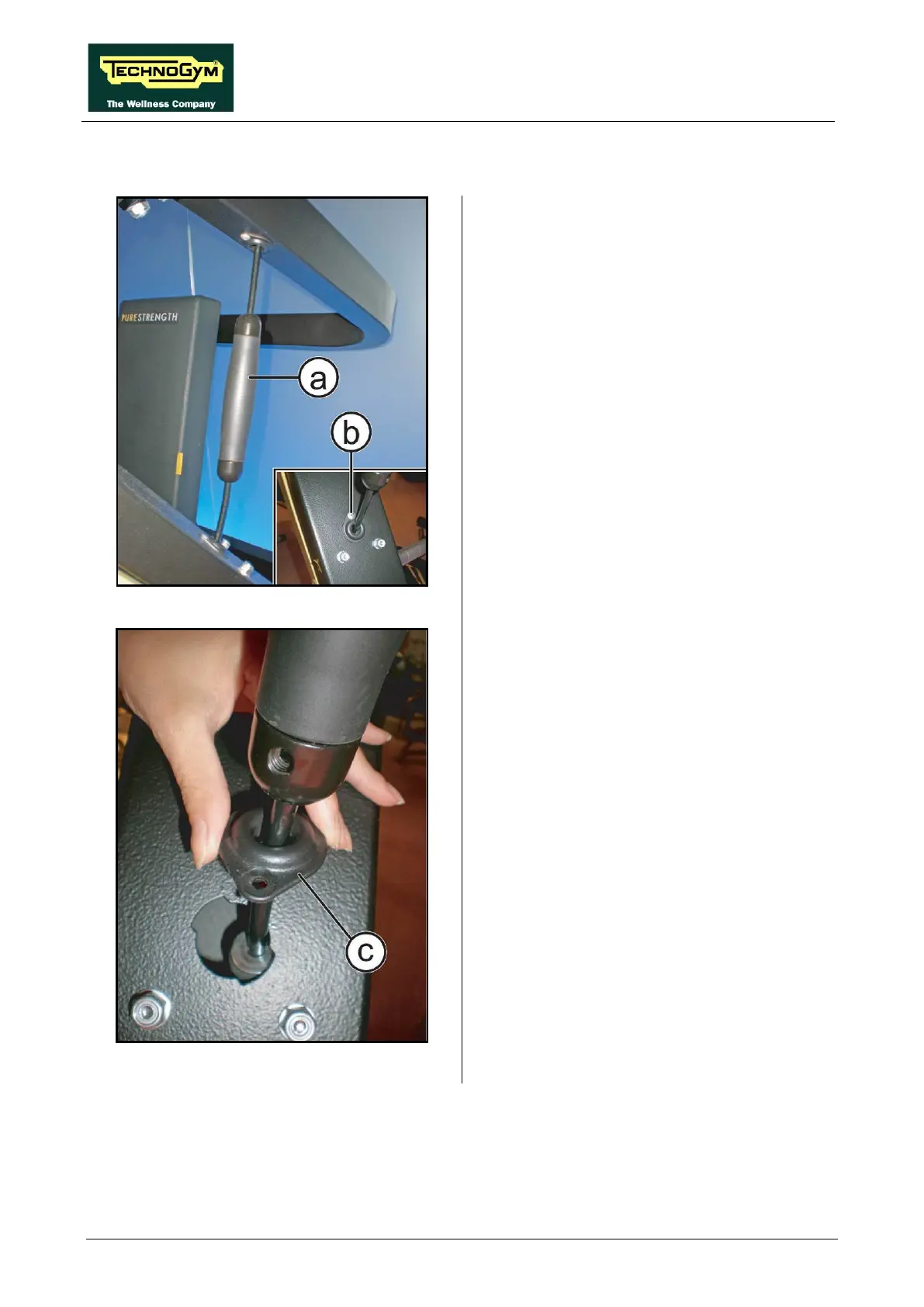

Figure 5.1-22
1. Disassemble the handle (a), unscrewing the
screw (b)
screwdriver.
Figure 5.1-23
2. Turn the handle holder (c) counter clockwise
to remove it from its house in the frame.
To reassemble the removed parts, carry out the
disassembling steps in reverse order.
