5.2.4. DISASSEMBLING THE CALF CARRIAGE WHEELS AND ROLLERS

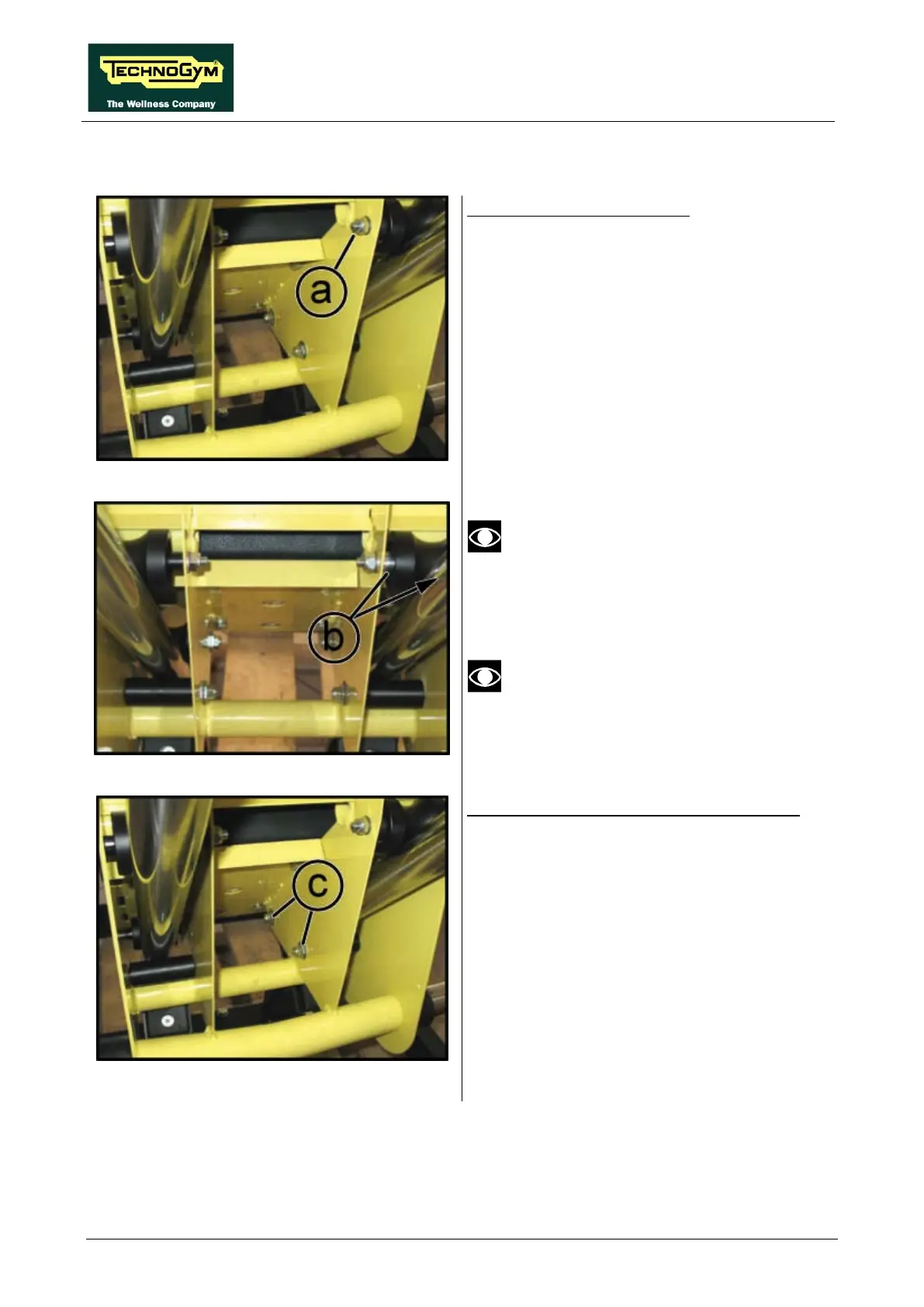

Figure 5.2-8
Disassembly of upper wheels:
1. Unscrew the nuts (a)
with a 17mm wrench,
holding the screw on the opposite side in
place with another wrench of the same size.
2. Remove the wheels.
Figure 5.2-9
When reassembling the upper wheels,
remember to reinsert the spacers (b) on
the either side of the right-
hand wheel,
but not on the left-hand wheel.
The left wheel is left free to move
horizontally, so that it can correctly
position itself on the bars.
Figure 5.2-10
Disassembling the lower wheels and rollers:
1. Unscrew the nuts (c) with a 17mm wrench,
holding the screw on the opposite side in
place with a wrench of the same size.
2. Remove the wheels.
Continued on following page →
