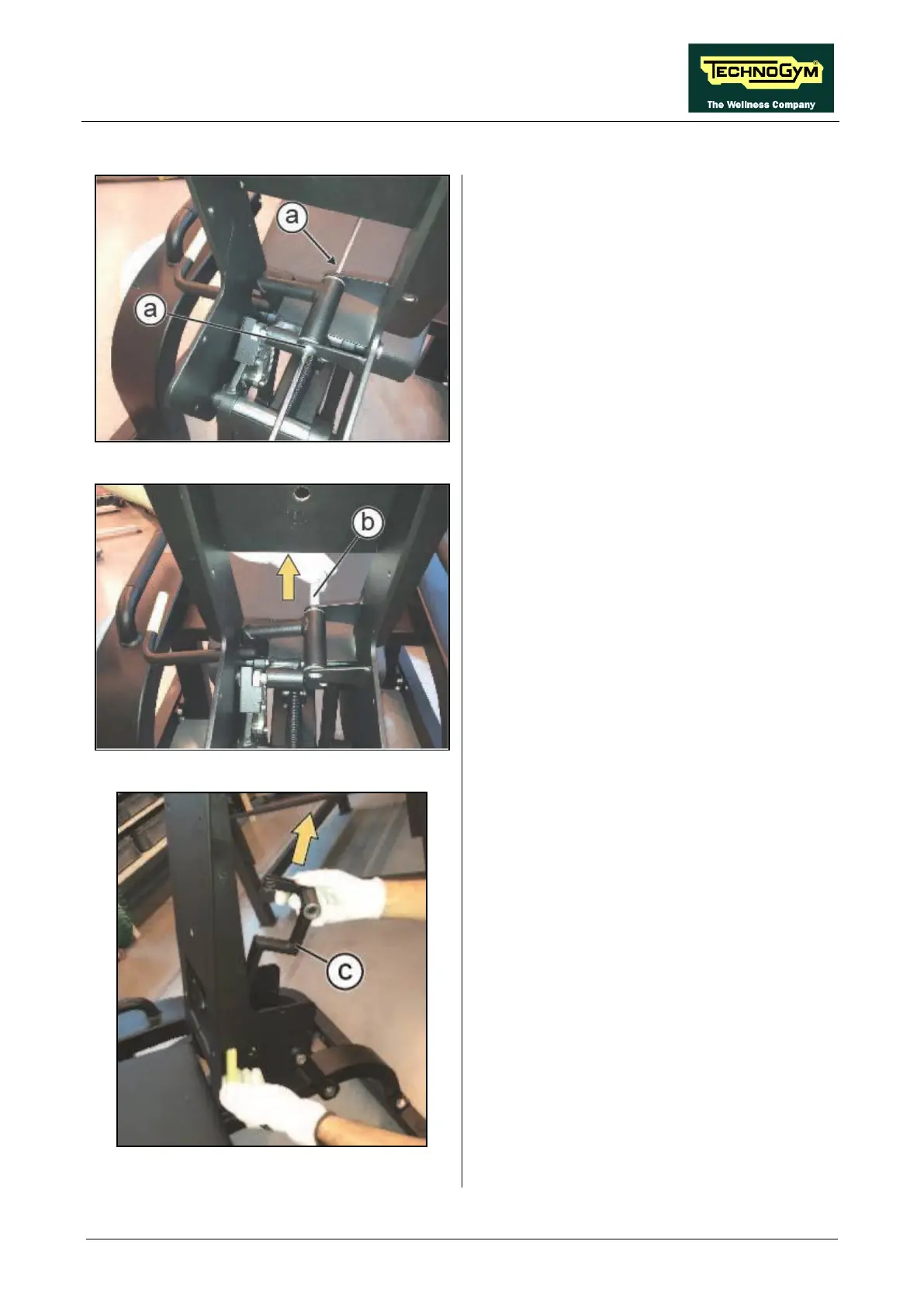

5.11.2. BACKREST ADJUSTMENT LEVER DISASSEMBLING
Figure 5.11-6
Carry out the procedure described in paragraph:
5.11.1. Disassembling the selection pin.
1. Unscrew the 2 screws (a)
using two opposed
5mm hexagonal keys.
Figure 5.11-7
2. Pull out the pin (b) in the direction of the
yellow arrow.
Figure 5.11-8
3. Remove the lever (c).
To reassemble the removed parts, carry out the
disassembling steps in reverse order.
