5.10.3. DISASSEMBLING THE UPHOLSTERY

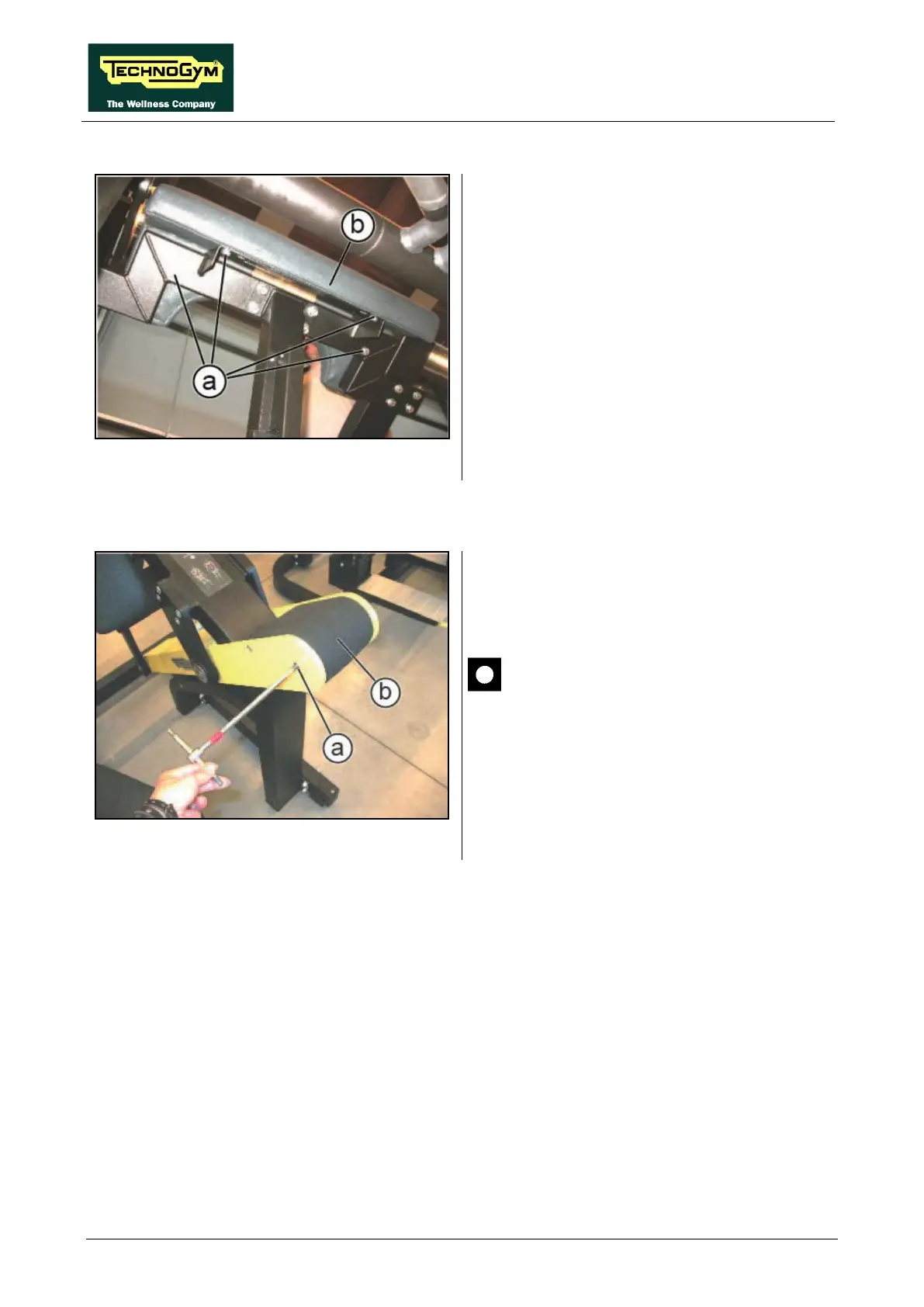

Figure 5.10-6
1. Unscrew the 4 screws (a) using a 17mm
wrench.
2. Remove the upholstery (b).
To reassemble the removed parts, carry out the
disassembling steps in reverse order.
5.10.4. DISASSEMBLING THE CAST IRON COUNTERWEIGHT
Figure 5.10-7
1. Unscrew the 4 screws (a) using a 6mm Allen
wrench.
2. Carefully remove the counterweight.
CAUTION: The counterweight weighs
13kg.
To reassemble the removed parts, carry out
the disassembling steps in reverse order.
