5.9. DISASSEMBLING THE SEAT DIP (MG55)
For instruction on this equipment disassembling see paragraph: 5.1. “Disassembling
common to several equipment”.
5.10. DISASSEMBLING THE BICEPS (MG60)
5.10.1. DISASSEMBLING THE HANDLE GROUP

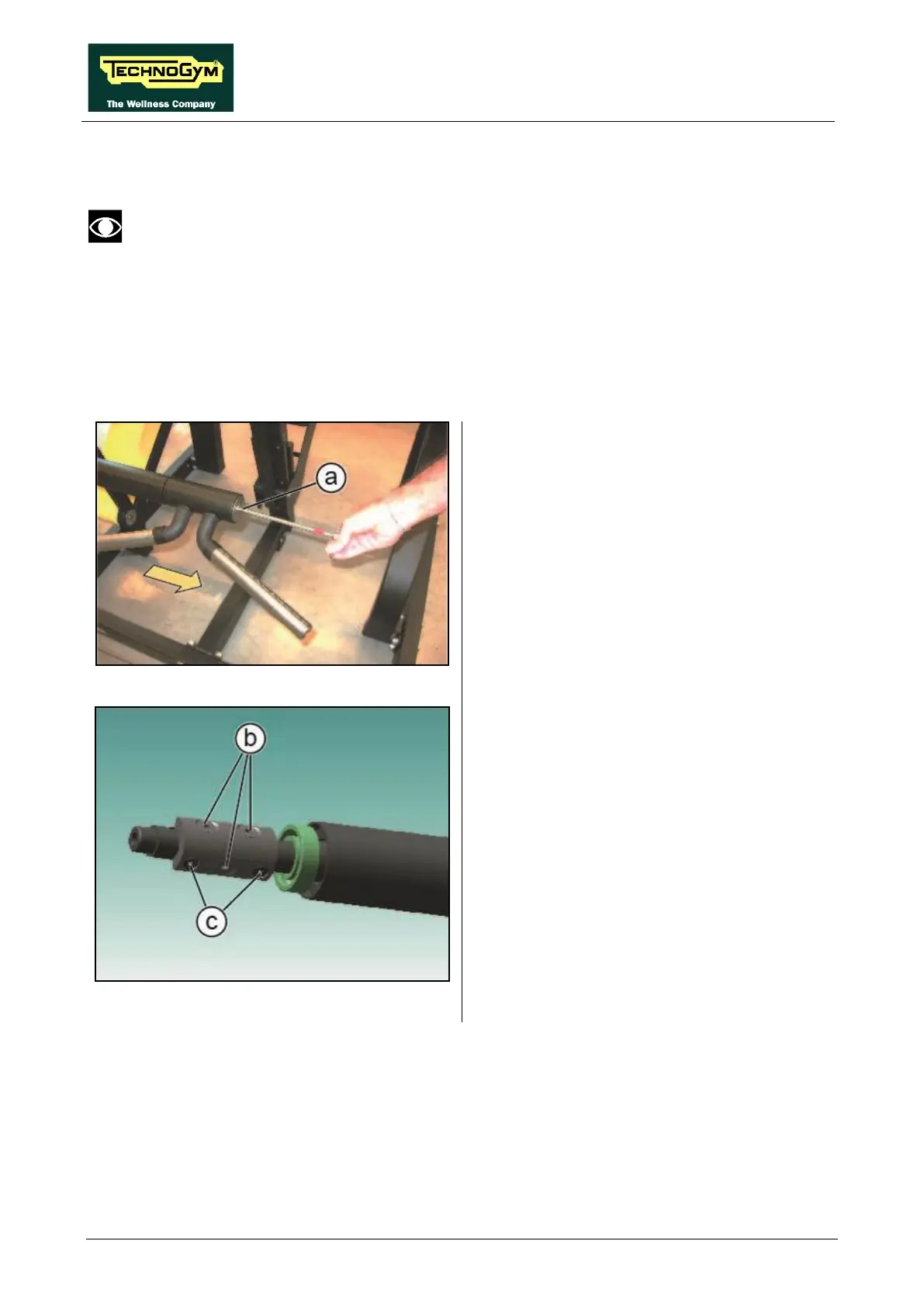

Figure 5.10-1
1. Unscrew the screw (a) of the handle group
using a 6mm hexagonal key.
2.
Remove the handle group in the direction of
the yellow arrow.
Figure 5.10-2
3. Unscrew the 3 screws (b) using a 5mm
hexagonal key.
4. Unscrew the 2 screws (c)
hexagonal key
5. Remove the spacer and the bearing.
To reassemble the removed parts, carry out the
disassembling steps in reverse order.
