PURESTRENGTH & BENCHES: Guida all'Assistenza Tecnica - rev. 4.1
Page 5.24

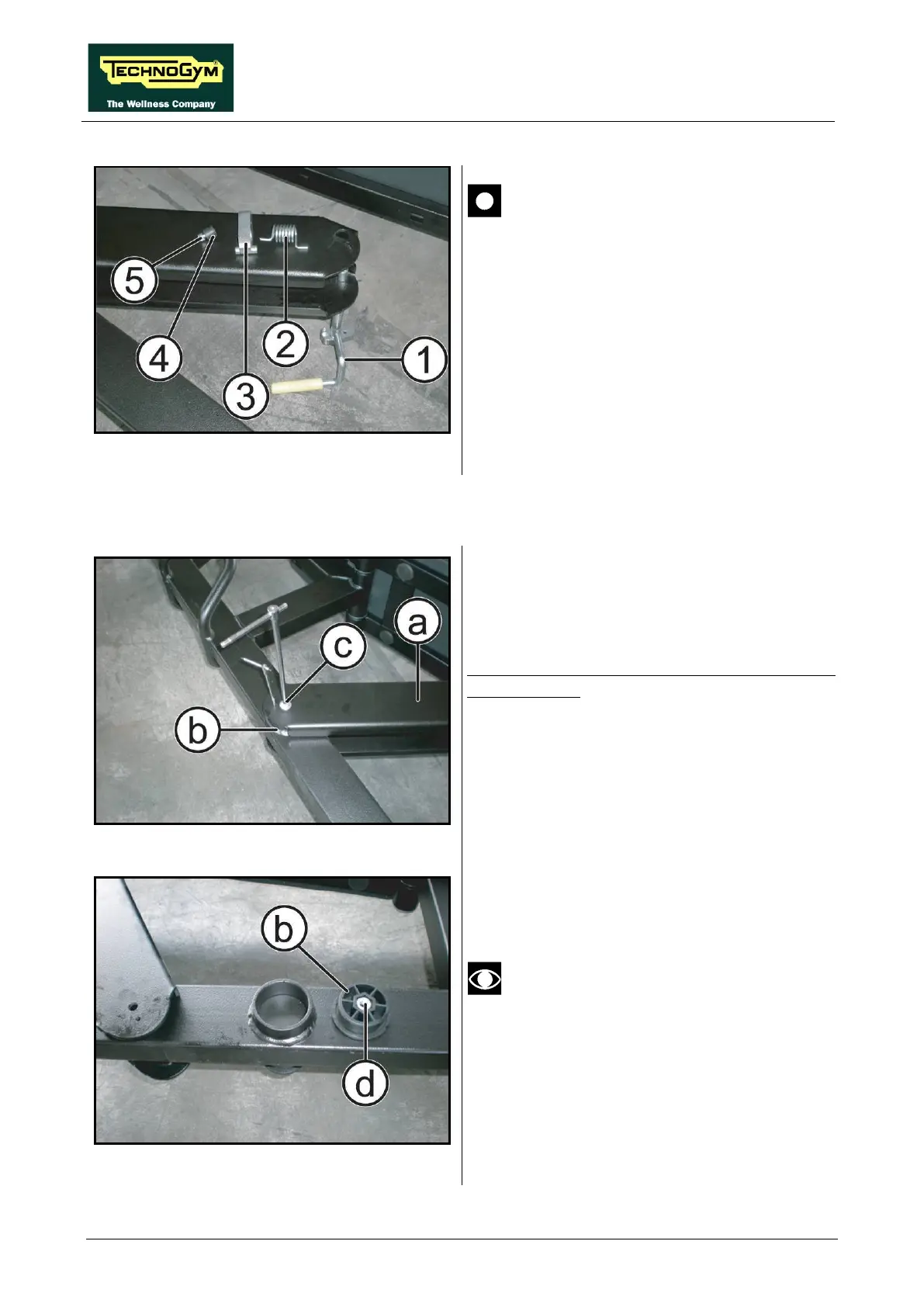

Figure 5.4-3
CAUTION: During the reassembly refer
to the sequence indicated in the figure at
the side.
To reassemble the removed parts, carry out the
disassembling steps in reverse order.
5.4.2. DISASSEMBLING THE BACKREST TUBULAR METAL PIECE
Figure 5.4-3
Carry out the procedure described in paragraph:
5.4.1. “Disassembling the backrest adjustment
group”, until step 3.
After releasing the tubular metal piece (a) from
the upper part:
1. Insert a small wr
ench or screwdriver in to the
frame hole to lock the wheel (b).
2. Unscrew the screw (c)
hexagonal key.
3. Release the tubular metal piece (a).
Figure 5.4-3
4. Remove the wheel (b) from its site and
remove the self locked nut (d)
wheel.
During the reassembly of the backrest
tubular metal piece, pay attention the
selection teeth are facing the guides.
To reassemble the removed parts, carry out the
disassembling steps in reverse order.
