5.5. DISASSEMBLING THIGH SUPPORT GROUP (PG05 –
LOWER BACK BENCH)

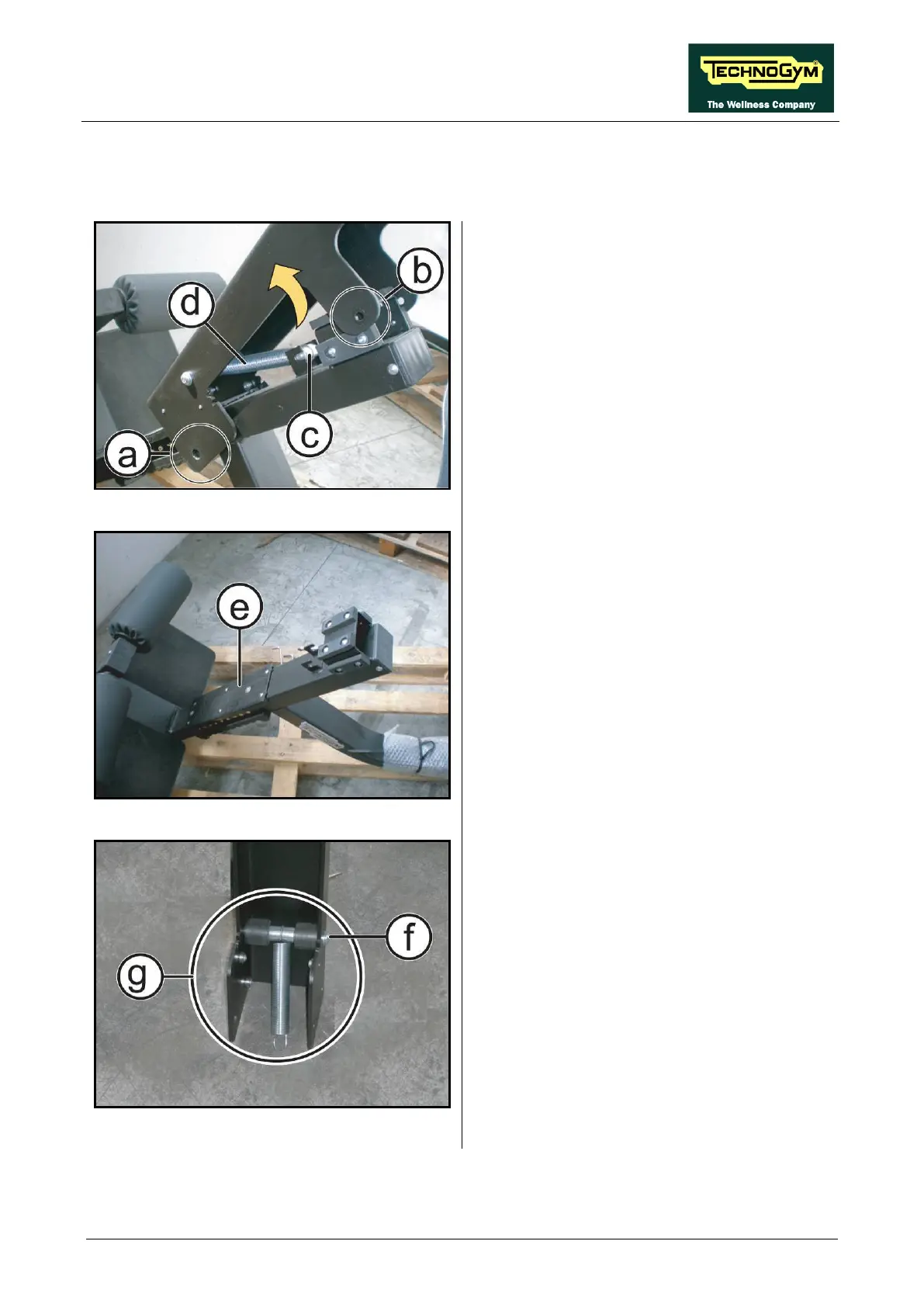

Figure 5.5-1
1. Unscrew the 2 screws (a) and (b) using a
5mm hexagonal key and lift up the thigh
support group.
2. Remove the pin (c)
from its house, in the
direction of the arrow to re
lease the spring
(d).
Figure 5.5-2
3. To remove the selector (e), carry out the
operation described at the paragraph: 5.1.1.
“Seat adjustment system”, in Figure 5.1-6.
Figure 5.5-3
4. Unscrew the 2 screws (f) using a 5mm
wrench.
5. Remove the group (g).
Continued on following page →
