PURESTRENGTH & BENCHES: Guida all'Assistenza Tecnica - rev. 4.1
Page 5.7
5.1.7. DISASSEMBLING THE LEVERS

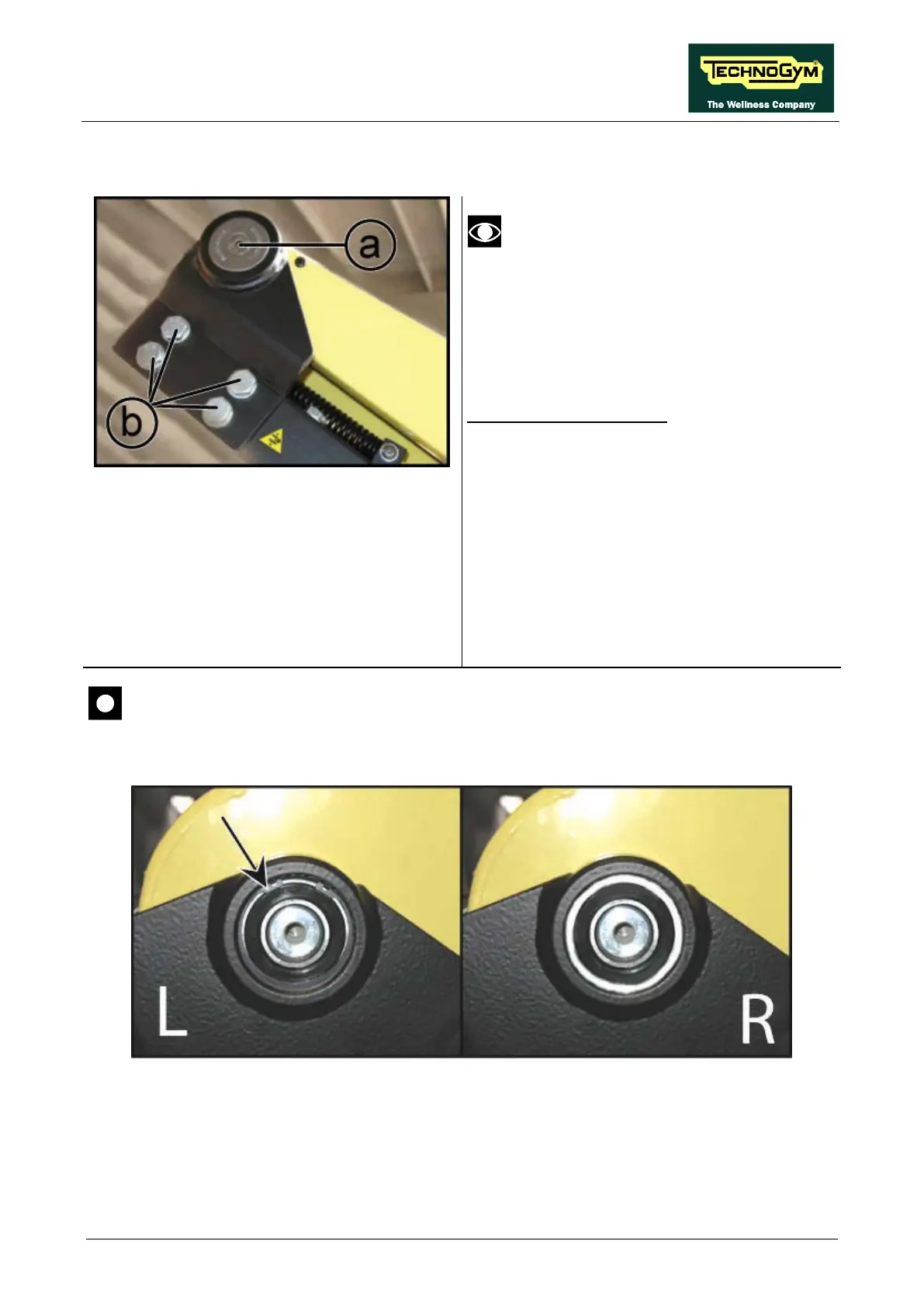

Figure 5.1-16
During disassembly, support the lever in
a horizontal position to avoid damaging
the bearings.
1. Disconnect the easy start spring, if installed,
as described in paragraph 5.1.6.
“Disassembling the easy-start lever spring”.
On either side of the lever:
2. Unscrew the screws (a)
hexagonal key.
3. Unscrew the screws (b)
wrench.
4. Remove the lever and plates.
To reassemble the removed parts, carry out the
disassembling steps in reverse order.
CAUTION: The two right (R) and left (L) plates are differentiated by the assembly of the
beari
ngs: on the left plate, the bearing is secured with two snap rings, while on the right
it is free.
Figure 5.1-17
Continued on following page
→
