To reassemble, proceed as described below, with reference to the figure:
1. Assemble the bearing and its snap rings on the left plate;
2. Fit the bearing on the right plate;
3. Pre-assemble the plates on the lever, without tightening the screws (X);

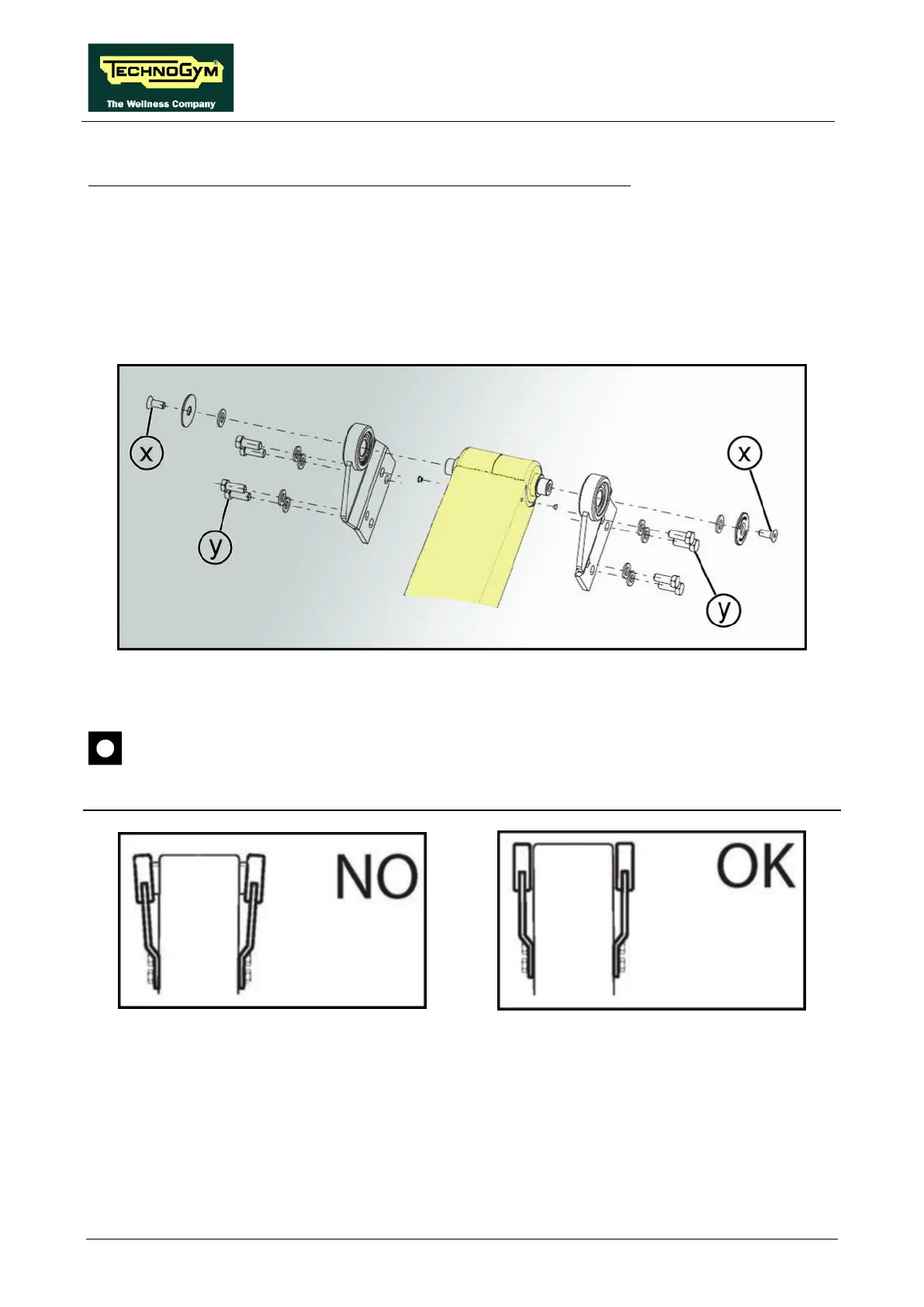

Figure 5.1-18
4. Assemble the lever on the frame, securing it with the screws (Y).
CAUTION: Take particular care when reassembling the levers, because the bearings can
be easily damaged if the lever is not kept properly aligned while tightening the screws.
5. Tighten all the screws.
