5.1.4. UPHOLSTERY

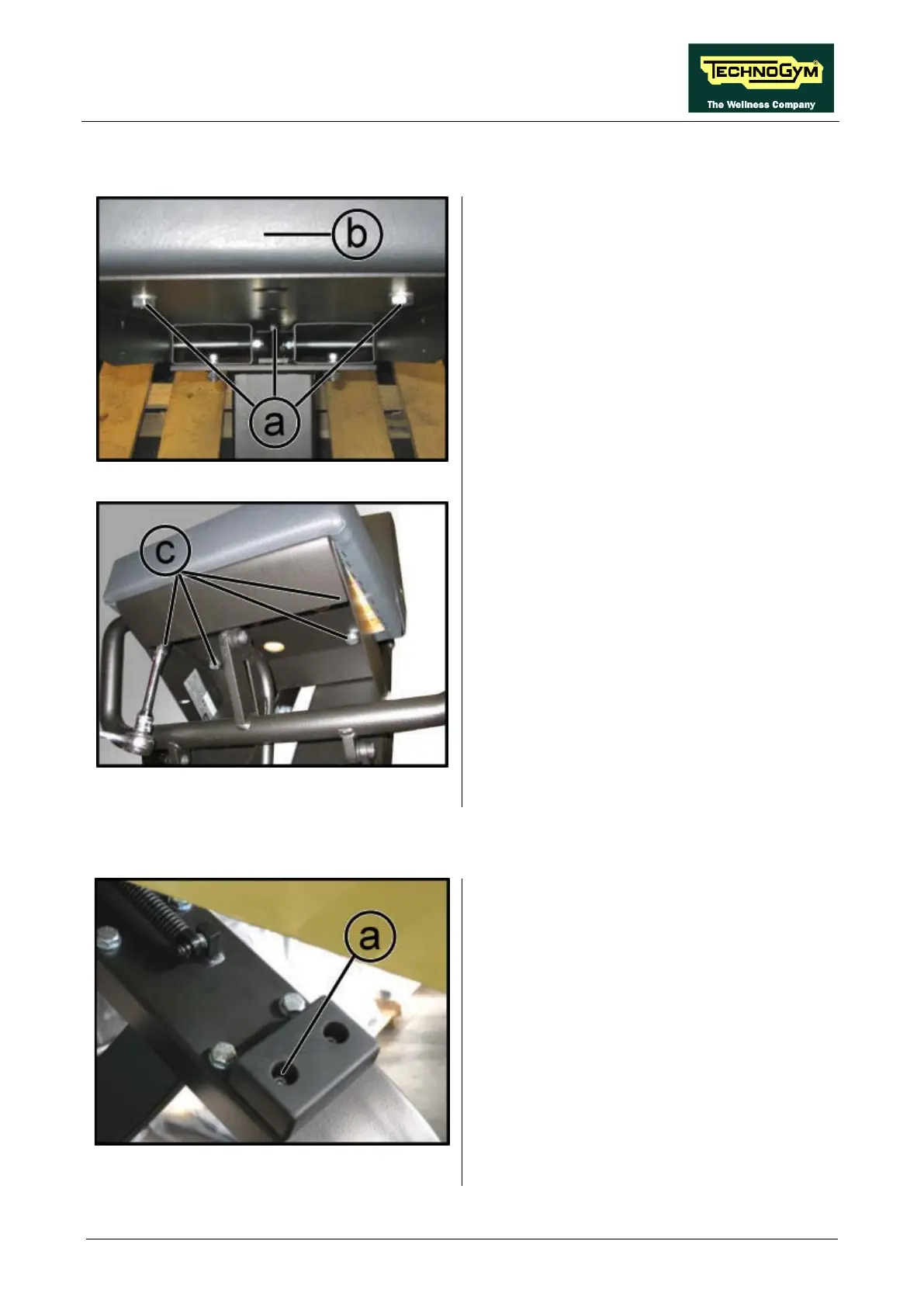

Figure 5.1-11
Disassemble the guard as described in
paragraph 5.3. “Disassembling the LEG PRESS
(MG50)
Leg Press Guard”
1. Unscrew the 3 screws (a)
using a 17mm
wrench.
2. Remove the backrest (b).
Figure 5.1-12
3. Unscrew the 4 screws (c) using a 17mm
wrench.
4. Remove the seat.
To reassemble the removed parts, carry out the
disassembling steps in reverse order.
5.1.5. DISASSEMBLING THE LEVER LIMIT BUFFERS
Figure 5.1-13
1. To replace the lever limit buffers, unscrew
the screws (a) using a 6mm hexagonal key.
To reassemble the removed parts, carry out the
disassembling steps in reverse order.
