PURESTRENGTH & BENCHES: Guida all'Assistenza Tecnica - rev. 4.1
Page 5.4
5.1.3. DISASSEMBLING THE HANDLES

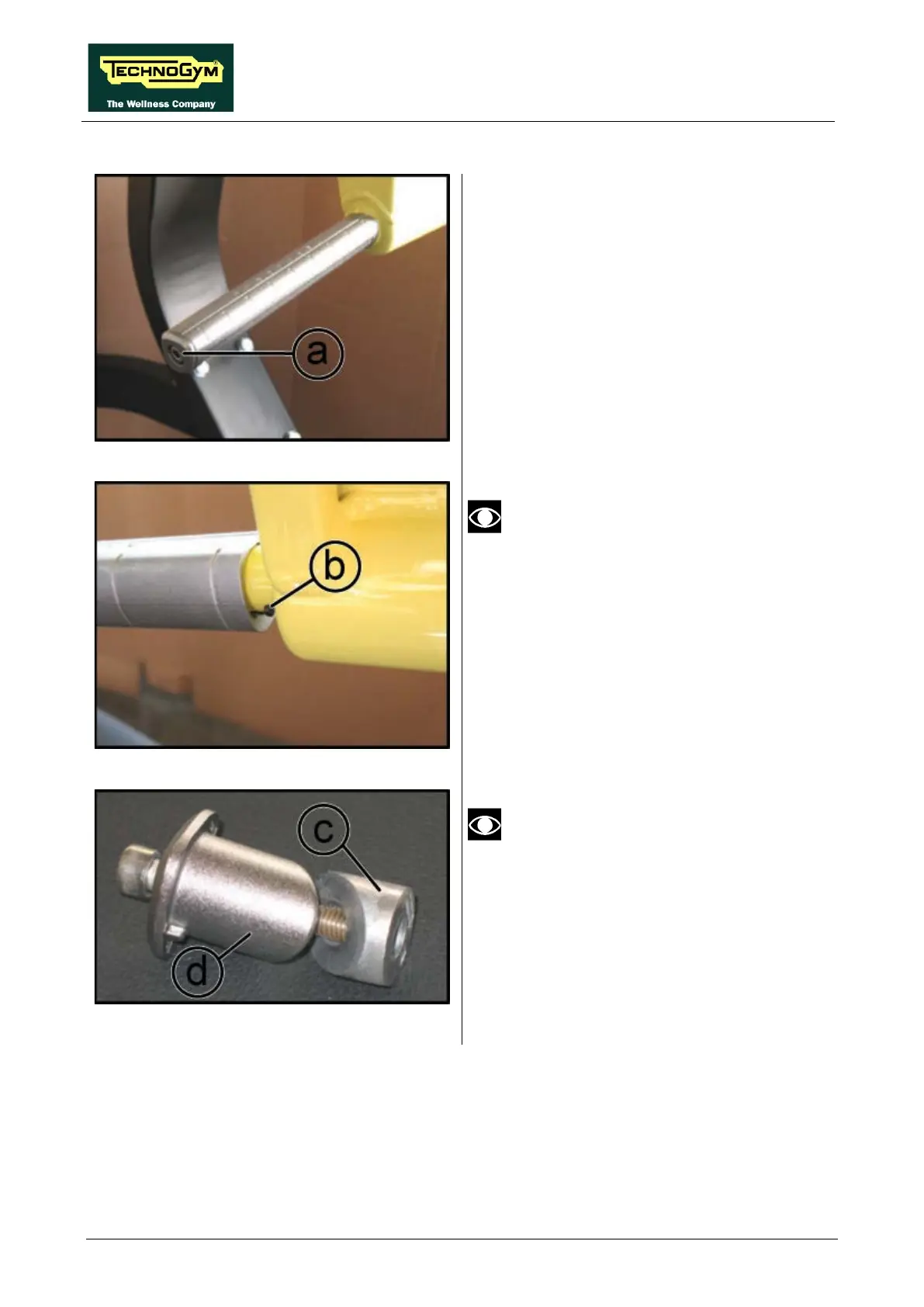

Figure 5.1-8
1. Remove the handle end by unscrewing the
screw (a) with a 6mm hexagonal key.
2. Pull out the handle.
To reassemble the removed parts, carry out the
disassembling steps in reverse order.
Figure 5.1-9
During reassembly, rotate the handle
until the slot on the handle coincides with
the grub-screw (b).
Figure 5.1-10
Reinsert the pin (c) into the handle
before securing it with its cap (d), as
shown in the figure at the side.
