5.3.3. DISASSEMBLING THE LEG PRESS PLATFORM LEVER

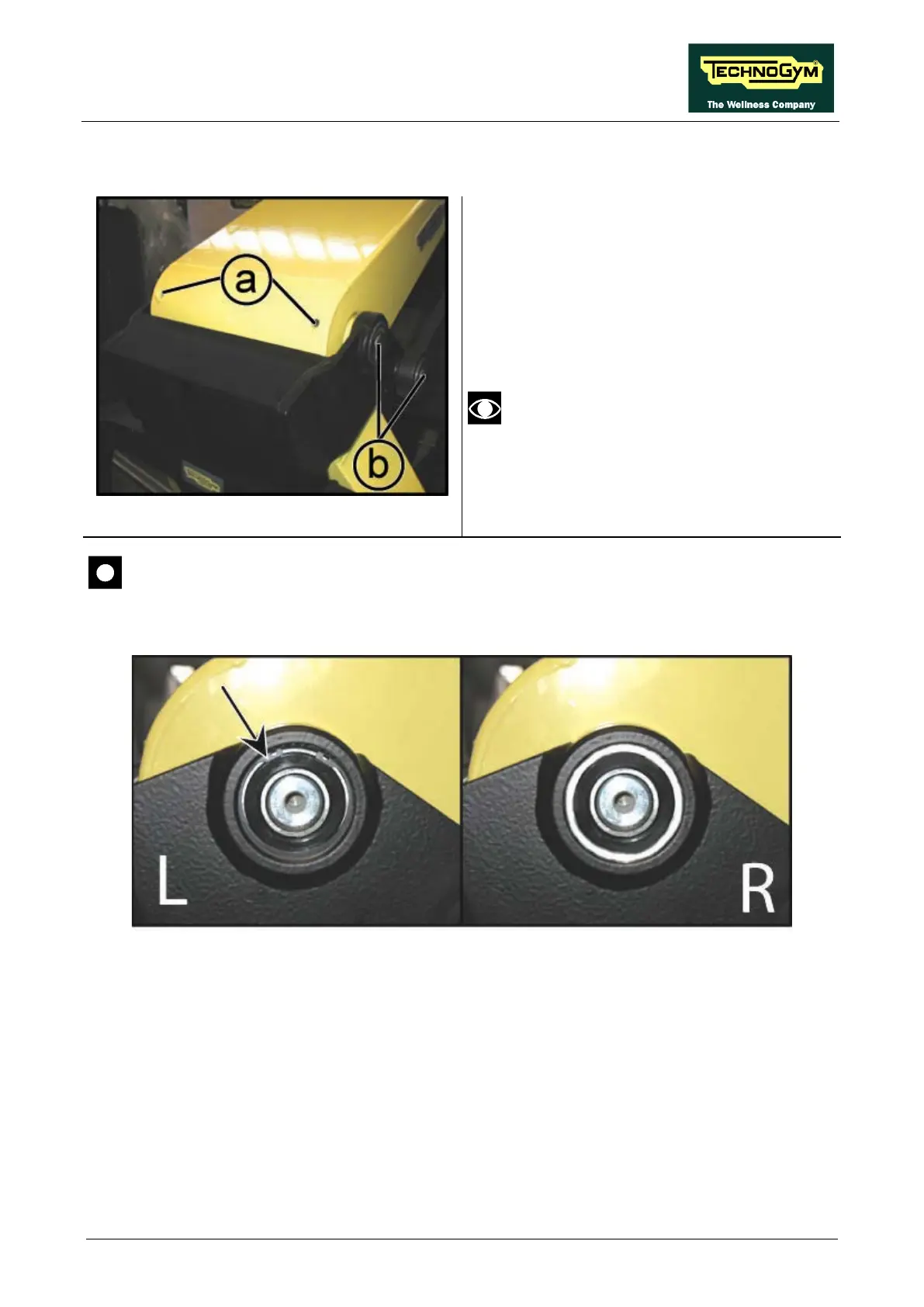

Figure 5.3-5
1. Loosen the grub-screws (a) using a 4mm
hexagonal key.
2. Unscrew the screws (b)
hexagonal key.
3.
Pull out the pin whilst holding up the
platform lever.
Take care during removal of the lever, as
it is very heavy.
To reassemble the removed parts, carry out the
disassembling steps in reverse order.
CAUTION: The assembly of the bearings is different on the right (R) and left (L) hand
sides of the equipment, as on the left (L) it is clamped by two snap rings, while on the
right (R) it remains free.
