PURESTRENGTH & BENCHES: Guida all'Assistenza Tecnica - rev. 4.1
Page 5.3

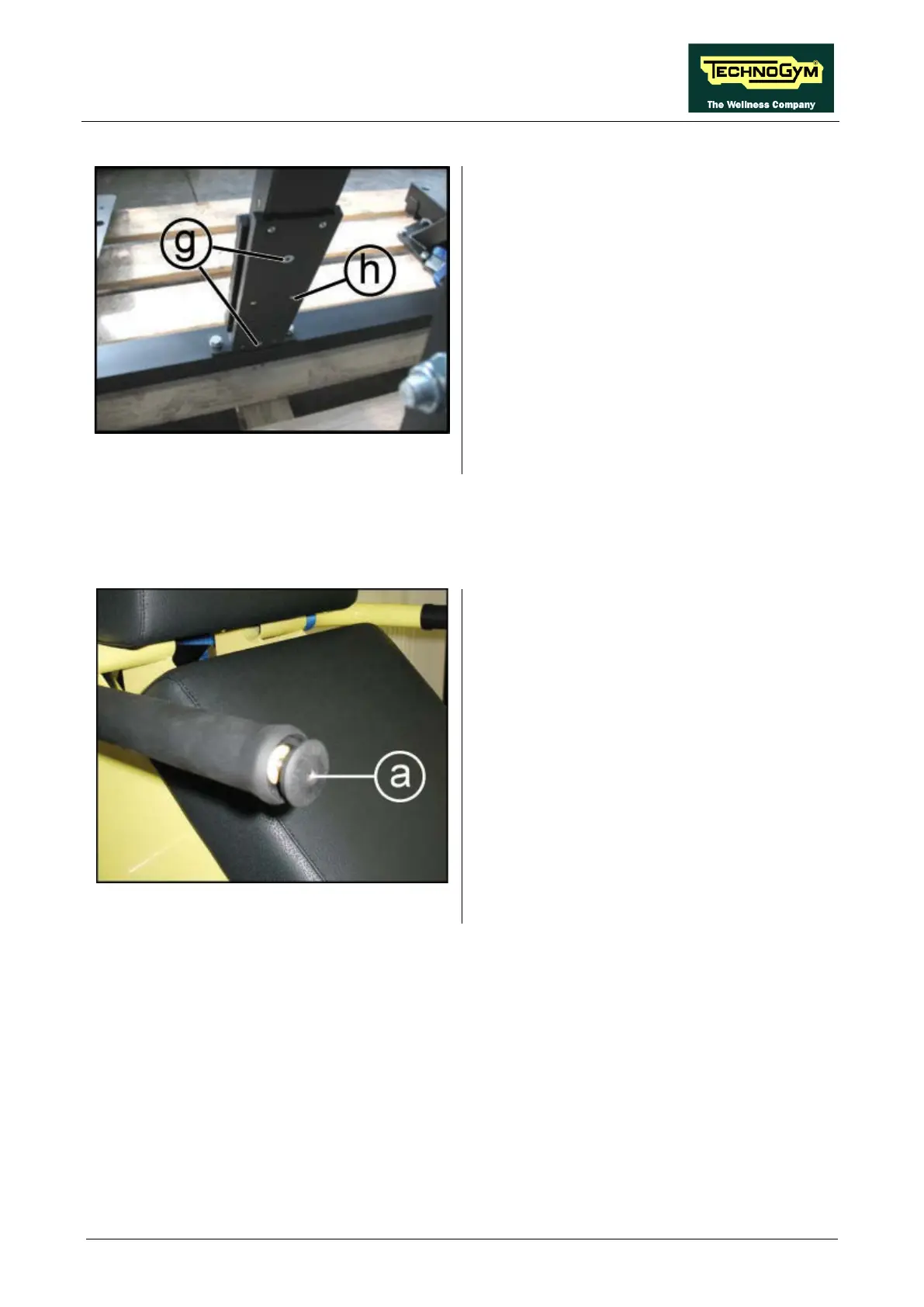

Figure 5.1-6
9. To replace the front seat adjustment support,
unscrew the 2 screws (g)
using a 6mm
hexagonal key.
10.
To replace the rear support, remove the 6
rivets (h).
To reassemble the removed parts, carry out the
disassembling steps in reverse order.
5.1.2. DISASSEMBLING THE HANDLES
Figure 5.1-7
1. Remove the cap (a) from the handle by
unscrewing the screw with a 5mm hexagonal
key.
2. Pull out the handle.
To reassemble the removed parts, carry out the
disassembling steps in reverse order.
