5.13.4. DISASSEMBLING THE LIMIT STOP

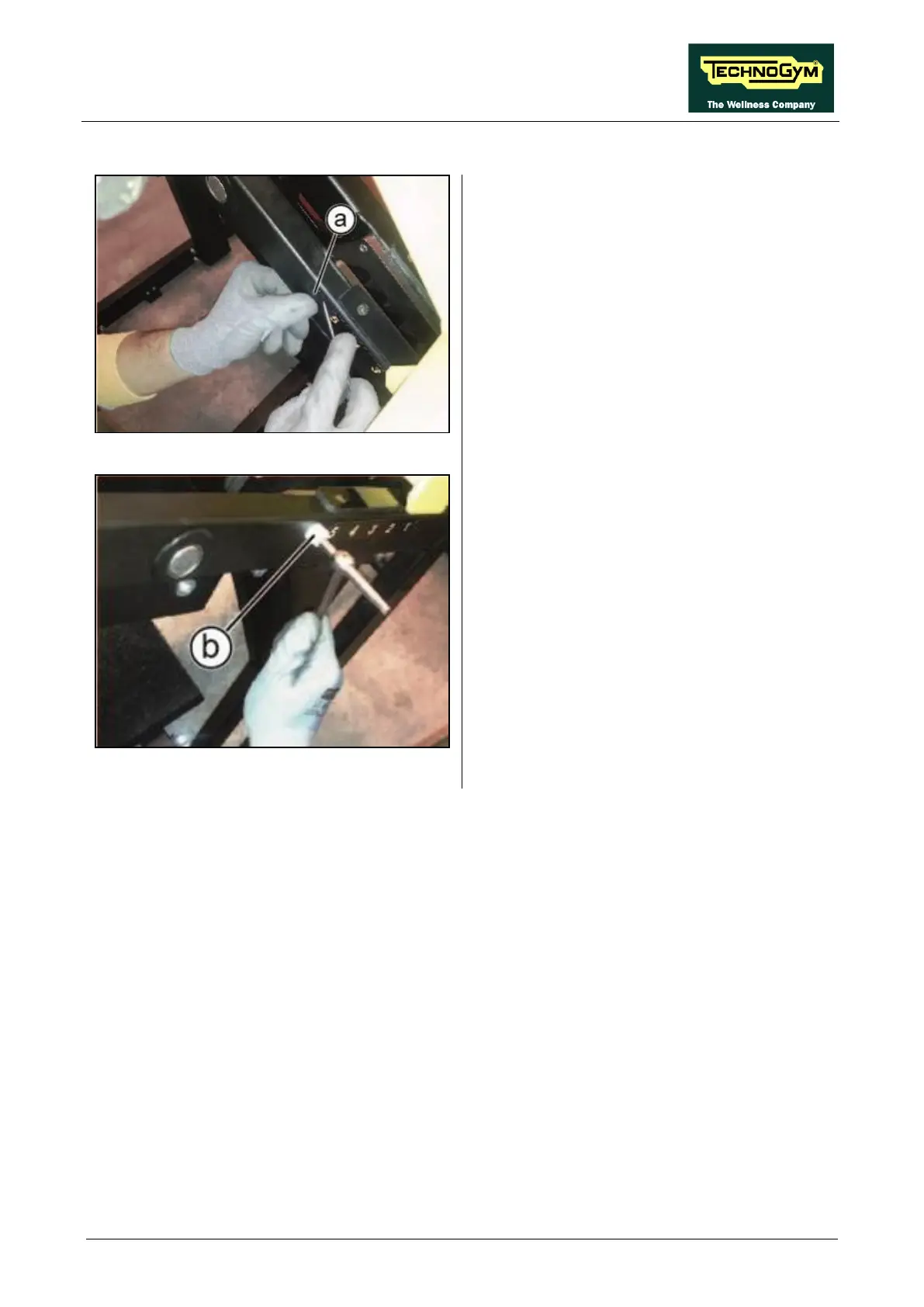

Figure 5.13-20
1. Remove the cap (a) with a flat screwdriver.
Figure 5.13-21
2. Fit a paper tube (b) in the hole to prevent the
screw from falling inside the frame.
3.
Unscrew the internal screw using a 6mm
hexagonal key.
4. Remove the limit stop group.
To reassemble the removed parts, carry out
the disassembling steps in reverse order.
