5.4. DISASSEMBLING THE ADJUSTING BACKREST SYSTEM
(PG03
– ABDOMINAL CRUNCH)
5.4.1. DISASSEMBLING THE BACKREST ADJUSTMENT GROUP

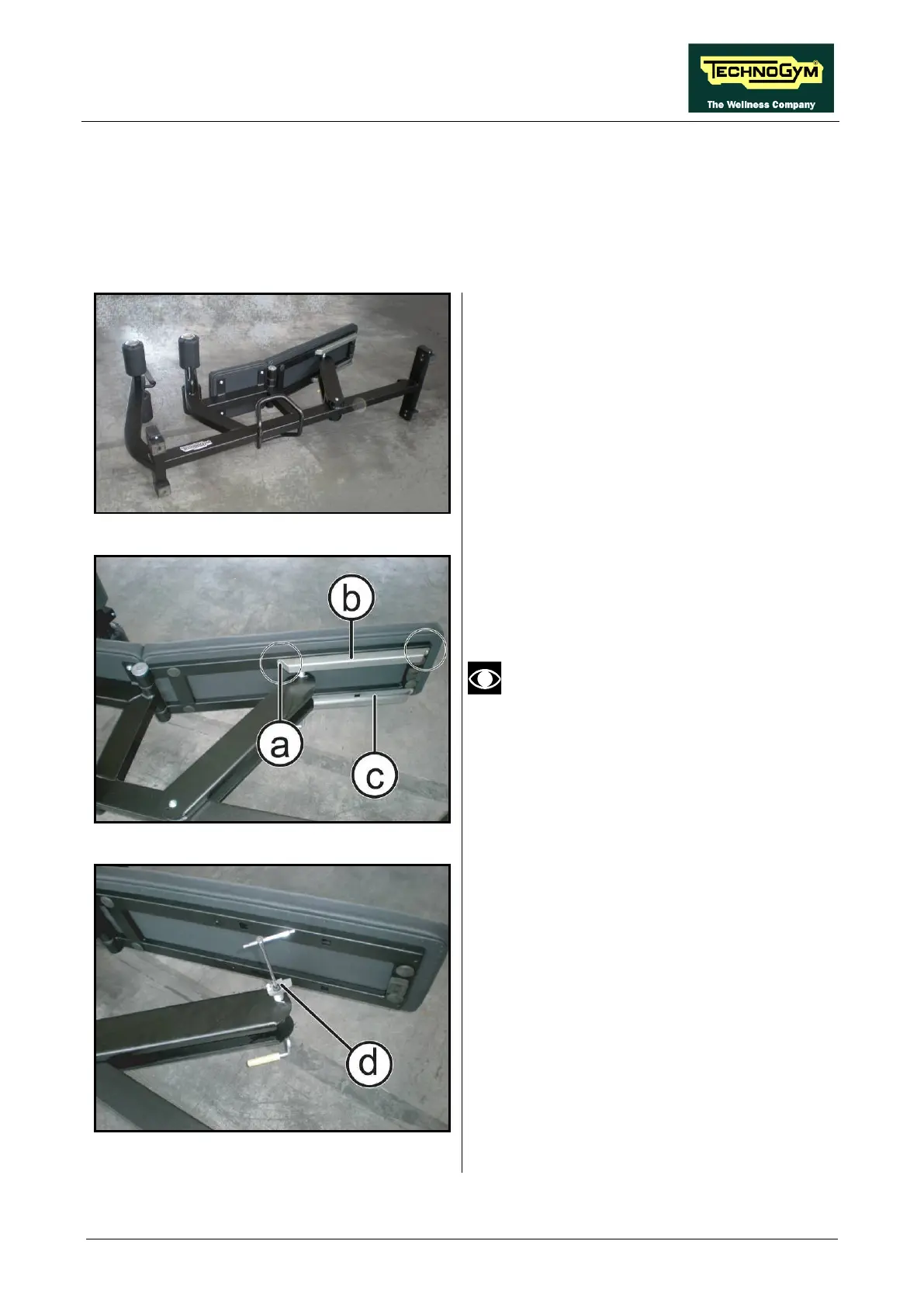

Figure 5.4-1
1. Turn the bench on the right side, as shown in
the figure to the side.
Figure 5.4-2
2. Unscrew the 2 screws (a) using a 4mm
hexagonal key.
3. Remove the guide (b).
To make the procedure
easier it is
possible to remove the guide (c) in the
same way as (b).
Figure 5.4-3
4. Unscrew the screw (d) using a 5mm
hexagonal key.
Continued on following page
→
