PURESTRENGTH & BENCHES: Guida all'Assistenza Tecnica - rev. 4.1
Page 5.22

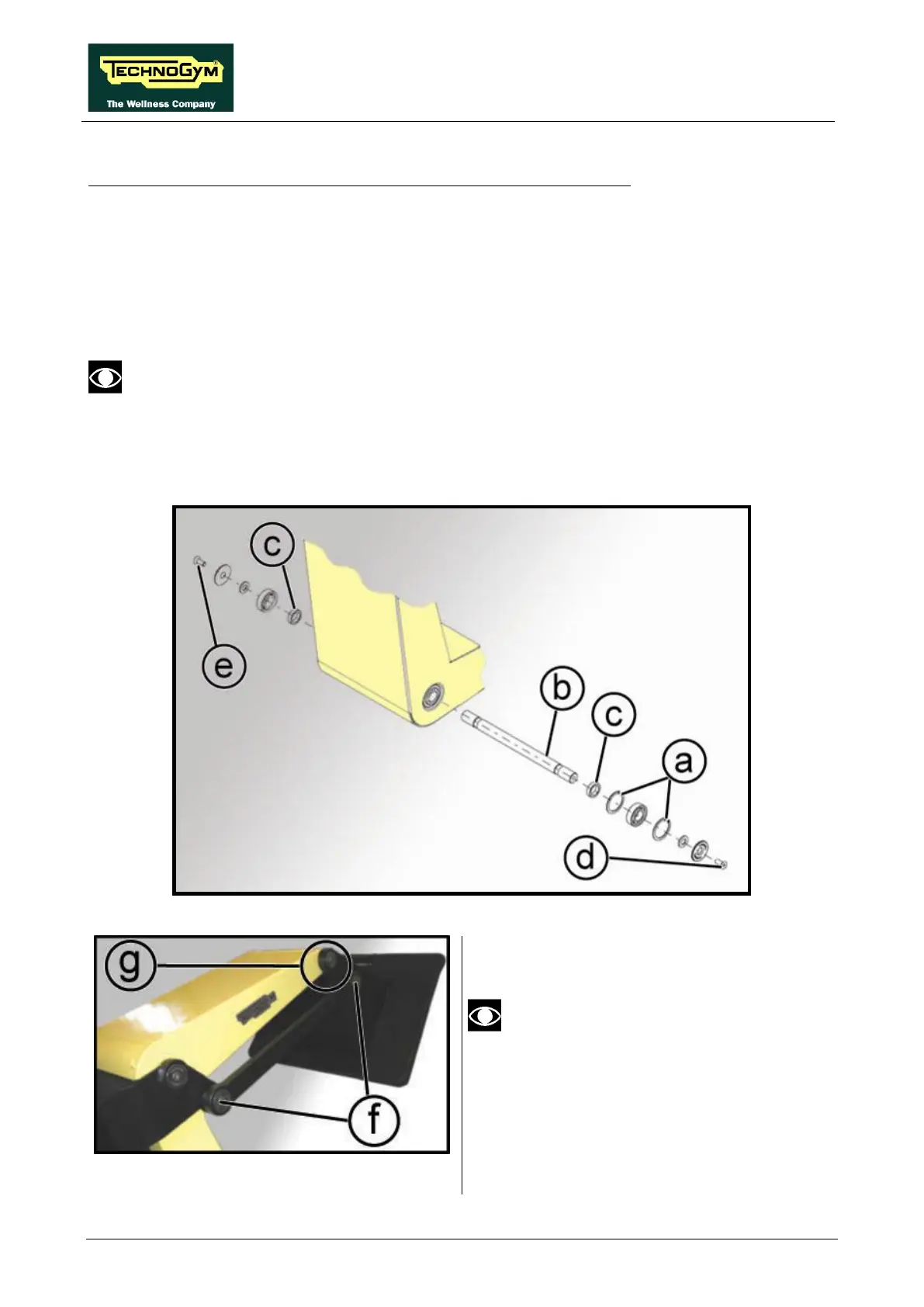

To reassemble, proceed as described below, with reference to the figure:
1. Assemble the bearing on the left side, along with its snap rings (a);
2. Support the lever, positioning it on the frame and start reinserting its fixing pin (b)
side.
3. Position the bearing on the right side of the frame;
Reinsert the spacers (c), placing them between the bearing and the lever.
4. Block the pin on the left side by tightening the screw (d);
5. Complete the assembly by tightening the screw (e) until all the components are firmly secured.
Figure 5.3-7
Figure 5.3-8
6. Reassemble the tie-rod, tightening the screw
(f).
To disassemble the platform, follow the
same procedure described above,
applying it to connection point (g).
