Technogym PURESTRENGTH - Platforms Sliding System Disassembly; Foot Support Removal; Roller Disassembly

PURESTRENGTH & BENCHES: Guida all'Assistenza Tecnica - rev. 4.1
Page 5.40

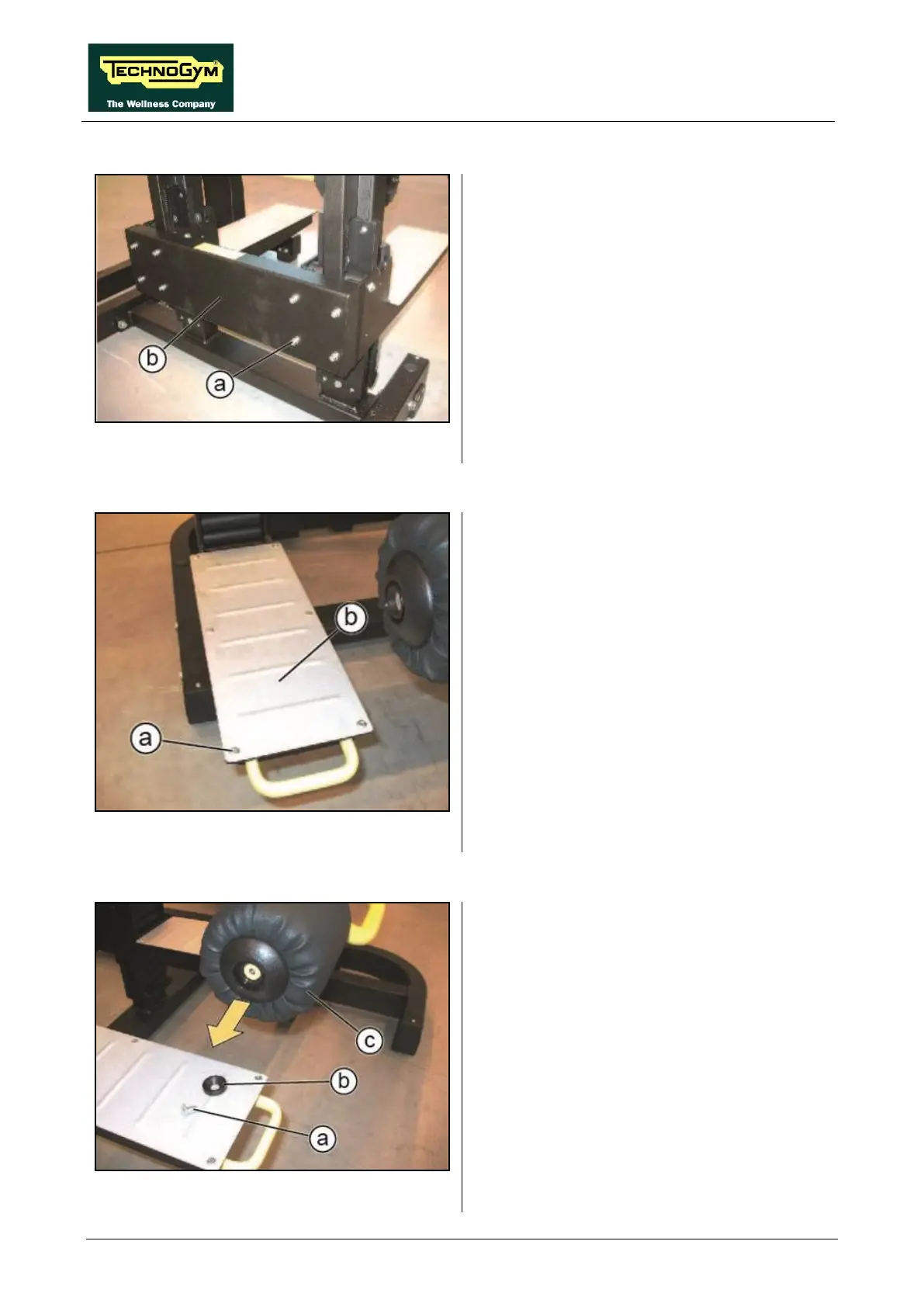

5.12.2. PLATFORMS SLIDING SYSTEM
Figure 5.12-4
1. Unscrew the 8 screws (a) using a 5mm
hexagonal key.
2. Remove the junction frame (b).
3.
Carry out the procedure described in
paragraph: 5.1.1. “Seat adjustment system”.
5.12.3. FOOT SUPPORT REMOVAL
Figure 5.12-5
1. Using a drill and a 5mm bit, remove the
rivets (a).
2. Remove the platform (b).
5.12.4. DISASSEMBLING THE ROLLER
Figure 5.12-6
1. Unscrew the screw (a) using a 5mm
hexagonal key.
2. Remove the spacer (b).
3. Remove the roller (c).
To reassemble the removed parts, carry out the
disassembling steps in reverse order.
