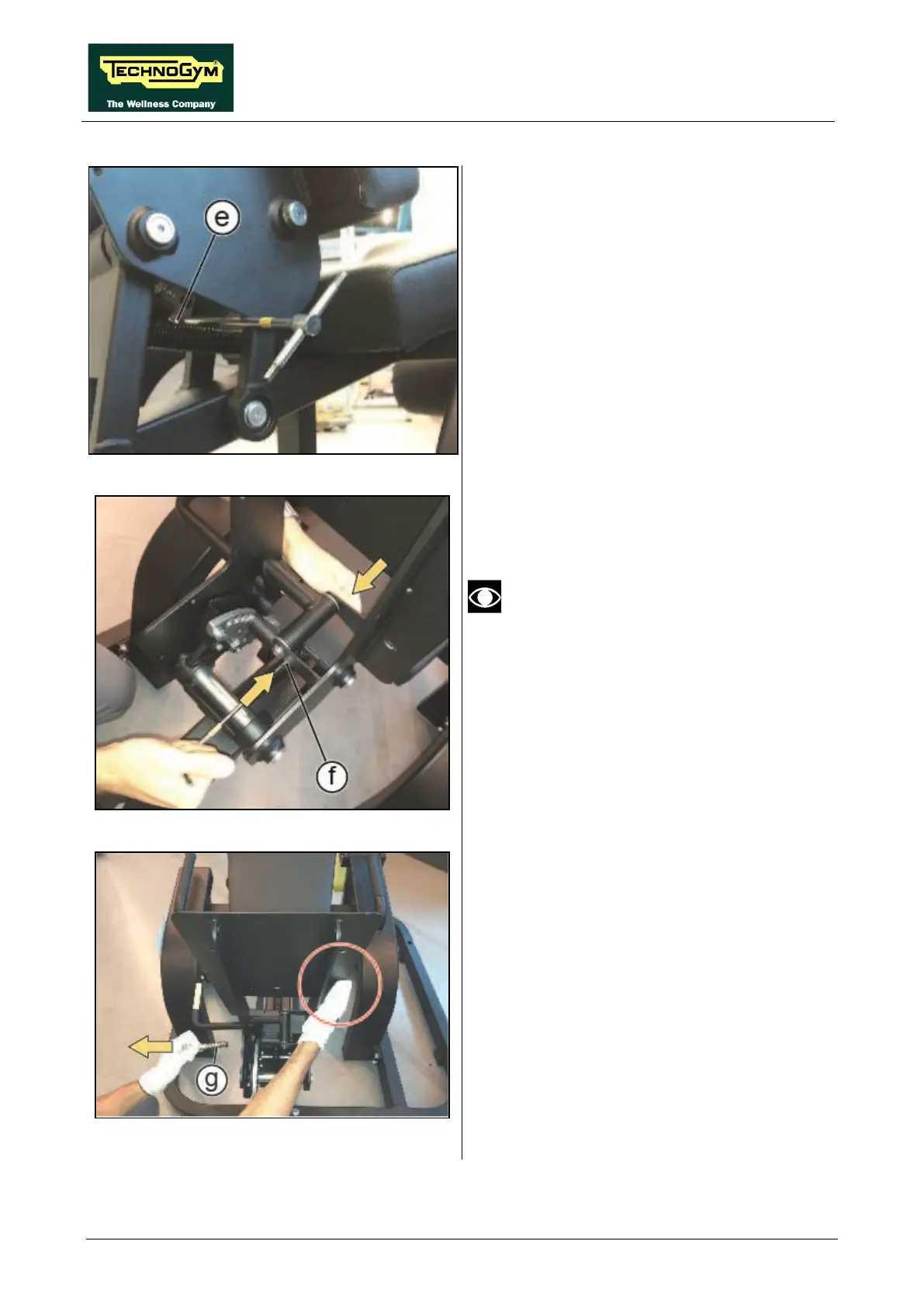

Figure 5.11-3
5. Unscrew the limit screw (e), using a 6mm
hexagonal key.
Figure 5.11-4
6. Unscrew the 2 opposed screws (f) using two
3mm hexagonal keys.
On the opposite side there is a hole to
reach the screw.
Figure 5.11-5
7. Pull out the pin (g) in the direction of the
yellow arrow holding the backrest that will
be recalled by the spring.
To reassemble the removed parts, carry out
the disassembling steps in reverse order.
